[shortdesc]
- 10x 100GE QSFP28 slots and 16x 10GE SFP+ slots, 2 x GE RJ45 Management Ports, SPU NP6 and CP9 hardware accelerated, and 3 DC power supplies
[/shortdesc]
[properties]
| Product Name |

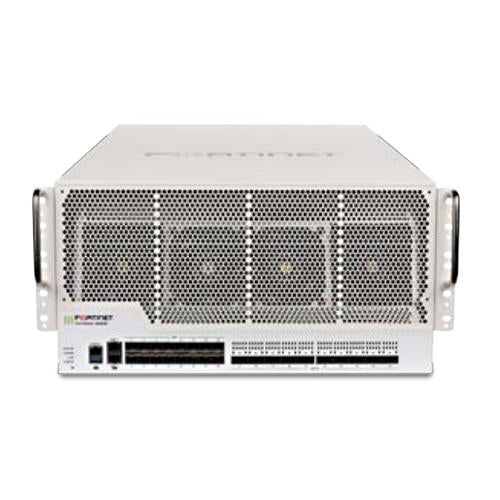

Fortinet FG-3980E-DC Firewall |
| Product Description |
High-performance NGFW with multiple high-speed interfaces |
| Type |
Network Security Appliance |
| Compatibility |
Supports integration with Fortinet Security Fabric |
| Media Type |
Data, Voice, Video |
| Power |
3 x DC power supplies |
| Connectivity |
10 x 100GE QSFP28 slots, 16 x 10GE SFP+ slots, 2 x GE RJ45 management ports |
| Weight |
48.2 kg (106.3 lbs) |
| Color |
Black |
| Software Compatibility |
FortiOS |
[/properties]
[specifications]
| Firewall Throughput |
1.05 Tbps |
| IPS Throughput |
32 Gbps |
| NGFW Throughput |
28 Gbps |
| Threat Protection Throughput |
18.5 Gbps |
| Concurrent Sessions |
160 million |
| New Sessions per Second |
550 |
| IPsec VPN Throughput |
210 Gbps |
| SSL VPN Throughput |
100 Gbps |
| Interfaces |
10 x 100GE QSFP28 slots, 16 x 10GE SFP+ slots, 2 x GE RJ45 management ports |
| Dimensions (H x W x D) |
222 mm x 437 mm x 695 mm (8.8 in x 17.2 in x 27.3 in) |
| Weight |
48.2 kg (106.3 lbs) |
| Power Supply |
3 x DC power supplies |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-35°C to 70°C (-31°F to 158°F) |
| Humidity Range |
20% to 90% non-condensing |
| Compliance |
CE, FCC, RoHS |
[/specifications]10x 100GE QSFP28 slots and 16x 10GE SFP+ slots, 2 x GE RJ45 Management Ports, SPU NP6 and CP9 hardware accelerated, and 3 DC power supplies.
This product has been discontinued.
