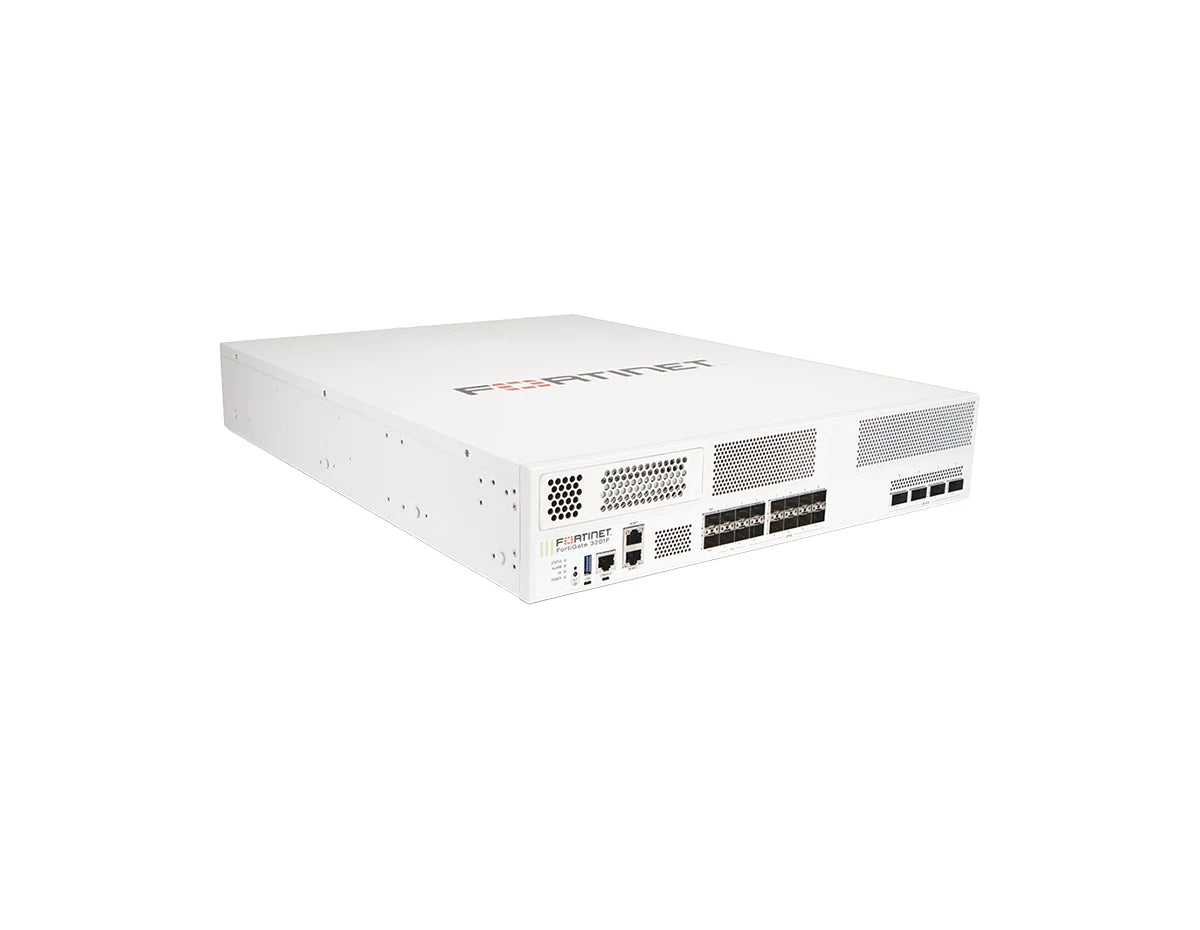

[shortdesc]FG-3201F-BDL-809-36 Next-Generation Firewall, four 400GE QSFP-DD, dual 960GB SSDs, NP7/CP9 SPUs, 47 Gbps NGFW, FortiCare Premium + FortiGuard Enterprise Protection, 3 Year.[/shortdesc]
[properties]
| Model |
FG-3201F-BDL-809-36 |
| Bundle / Subscription |
Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year) |
| Form Factor |
Rack Mount, 2RU |
| Firewall Throughput (IPv4) |
387 / 385 / 178.5 Gbps (1518 / 512 / 64 byte UDP) |
| Threat Protection Throughput |
45 Gbps |
| Network Interfaces |

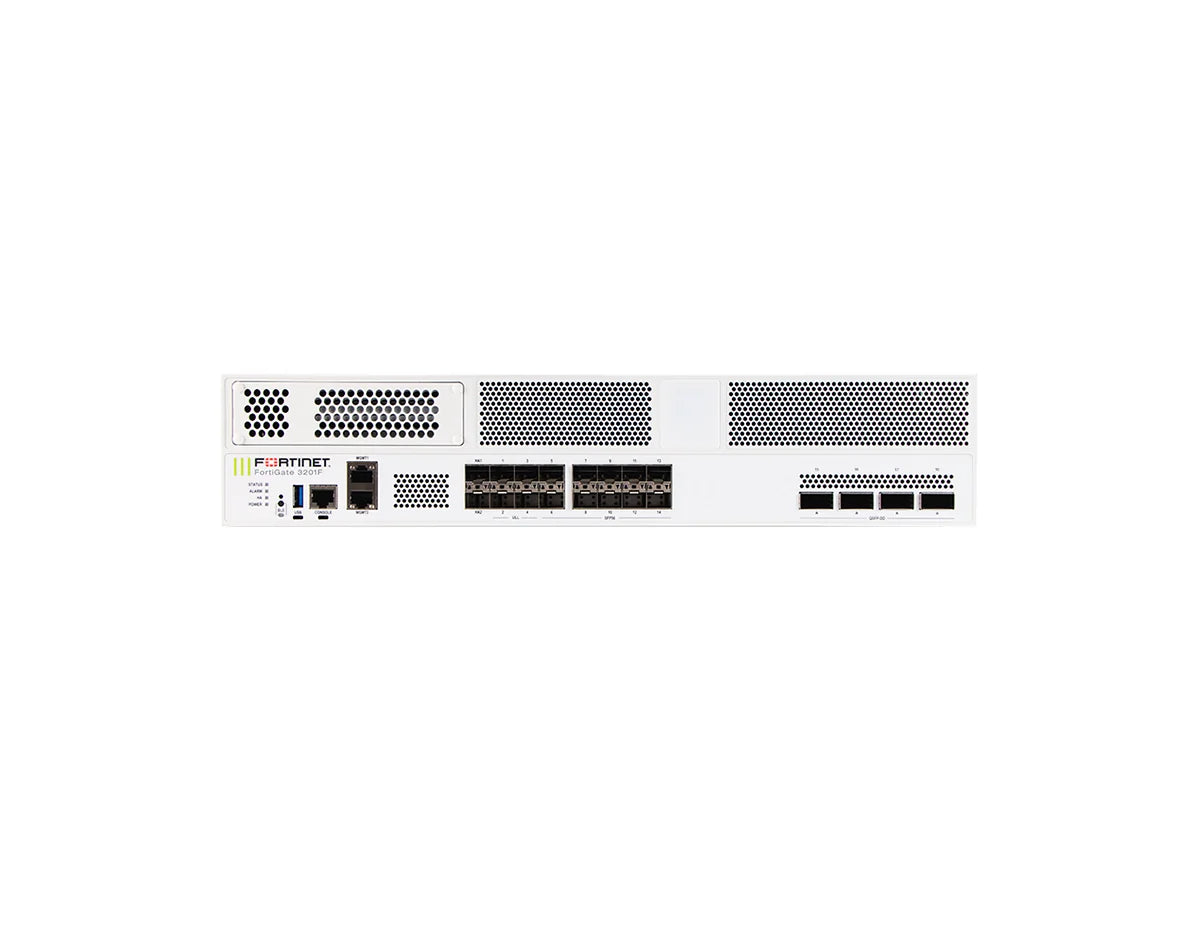

4x 400GE QSFP-DD, 10x 50GE SFP56 (data), 2x 50GE SFP56 (HA1/HA2), 4x 25GE SFP28 ULL, 2x 10GE RJ45 Mgmt |
| Internal Storage |
2x 960GB SSD |
| Dimensions (H x W x L) |
3.5 x 17.44 x 23.9 inches (88.9 x 443 x 607.1 mm) |
| Weight |
45.5 lbs (20.7 kg) |
| Power Input |
100–240VAC, 60/50 Hz |
[/properties]
[specifications]
| System Performance - Enterprise Traffic Mix |
| IPS Throughput |
63 Gbps |
| NGFW Throughput |
47 Gbps |
| System Performance and Capacity |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) |
387 / 385 / 178.5 Gbps |
| Firewall Latency (64 byte, UDP) |
3.42 μs / 1.45 μs* |
| Concurrent Sessions (TCP) |
70 Million |
| New Sessions/Second (TCP) |
800,000 |
| IPsec VPN Throughput (512 byte) |
105 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
40,000 |
| Client-to-Gateway IPsec VPN Tunnels |
200,000 |
| SSL-VPN Throughput |
11 Gbps |
| Concurrent SSL-VPN Users (Tunnel Mode) |
30,000 |
| Hardware Specifications |
| USB 3.0 Port |
1 |
| Console RJ45 Port |
1 |
| Dimensions and Power |
| Power Consumption (Average/Maximum) |
527 W / 870 W |
| Current (Maximum) |
12A@100V, 9A@240V |
| Heat Dissipation |
2971 BTU/h |
| Redundant Power Supplies |

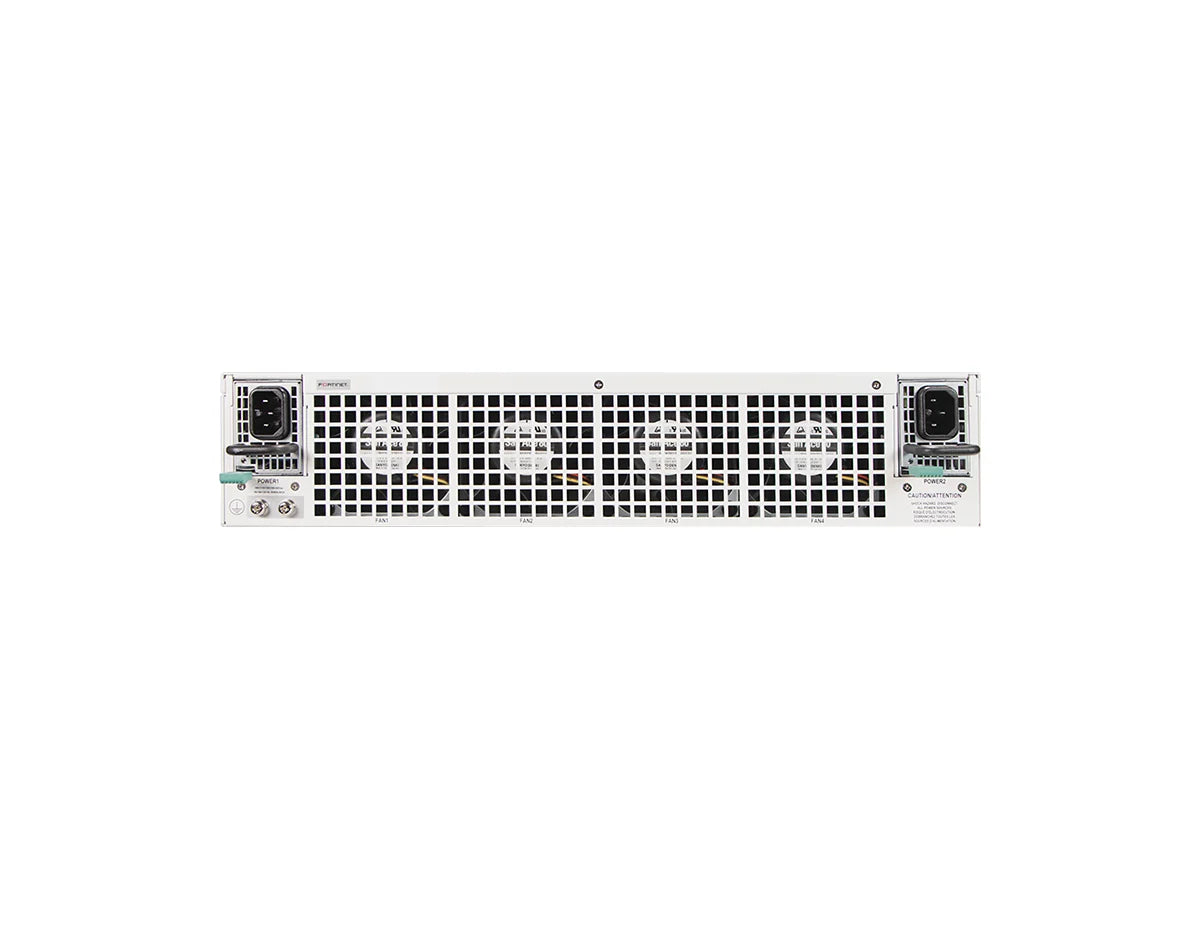

Yes (Default dual AC PSU for 1+1 Redundancy) |
[/specifications]
[accesories]
| Optional Accessories |
Rack Mount Sliding Rails (SP-FG3040B-RAIL), Spare AC Power Supply (SP-FG3800D-PS), various SFP/QSFP Transceiver Modules and Cables |
[/accesories]
The FortiGate 3201F enables security-driven networks for hyperscale data centers and hybrid IT environments. This bundle SKU includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year).
Purpose-built SPU NP7 and CP9 processors and onboard SSD storage support high-speed inspection plus local logging. Four 400GE QSFP-DD slots help maintain performance in demanding deployments.
Secure Networking with 400GE Hyperscale Connectivity and Onboard Storage
-
SPU Acceleration: NP7/CP9 SPUs accelerate inspection for high-speed traffic.
-
Hyperscale Ports: Four 400GE QSFP-DD slots simplify core connectivity.
-
Onboard Storage: Dual 960GB SSDs support local logging and reporting.
-
VPN Capacity: 105 Gbps IPsec throughput supports large site VPNs.
-
Session Scale: Supports up to 70 Million concurrent TCP sessions.
-
Resilient Power: Dual AC PSUs enable 1+1 redundancy.
Upgrade Your Network Security
Deploy FG-3201F-BDL-809-36 with FortiCare Premium + FortiGuard Enterprise Protection (3 Year).
