[shortdesc]FG-3001F-DC-BDL-809-12 Next-Generation Firewall, 100 GE QSFP28 slots, 2x 960GB SSD, DC power, Hardware + FortiCare Premium + FortiGuard Enterprise Protection, 1 Year.[/shortdesc]
[properties]
| SKU |
FG-3001F-DC-BDL-809-12 |
| Bundle / Subscription |
Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year) |
| Form Factor |
Rack Mount, 2 RU |
| NGFW Throughput |
34 Gbps |
| Threat Protection Throughput |
33 Gbps |
| Interfaces Summary |
6x 100 GE QSFP28/40 GE QSFP+, 16x 25 GE SFP28/10 GE SFP+/GE SFP (includes 2x HA Slots), 16x 10 GE/5 GE/2.5 GE/GE RJ45, 2x 10 GE/GE RJ45 Mgmt |
| Internal Storage |
2x 960GB SSD |
| Power Input |
48-60VDC |
| Dimensions (H x W x L) |
88.9 x 443 x 556 mm (3.5 x 17.44 x 21.89 inches) |
| Weight |
17.3 kg (38.2 lbs) |
[/properties]
[specifications]
| System Performance |
| IPS Throughput |
36 Gbps |
| NGFW Throughput |
34 Gbps |
| Threat Protection Throughput |
33 Gbps |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) |
397 / 389 / 221 Gbps |
| Firewall Latency (64 byte, UDP) |
3.92 µs |
| IPsec VPN Throughput (512 byte) |
105 Gbps |
| SSL Inspection Throughput |
29 Gbps |
| Concurrent Sessions (TCP) |
70 Million / 230 Million* (230 Million requires Hyperscale Firewall License) |
| Hardware & Interfaces |
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots |
6 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots |
16 (includes 2x HA Slots) |
| Hardware Accelerated 10 GE / 5 GE / 2.5 GE / GE RJ45 Ports |
16 |
| 10 GE / GE RJ45 Management Ports |
2 |
| USB Ports |
1 / 1 (Client / Server) |
| Console Port |
1 |
| Trusted Platform Module (TPM) |
Yes |
| Environment & Power |
| DC Current (Maximum) |
15A @ 48V |
| Power Consumption (Average / Maximum) |
420 W / 690 W |
| Heat Dissipation |
2356 BTU/h |
| Redundant Power Supplies |
Yes (2 DC power supplies) |
[/specifications]
[accesories]
| Optional Accessories |
Rack Mount Sliding Rails (SP-FG3040B-RAIL), DC Power Supply (SP-FG3800D-DC-PS), Transceiver Modules (1 GE SFP, 10 GE SFP+, 25 GE SFP28, 40 GE QSFP+, 100 GE QSFP28) |
[/accesories]

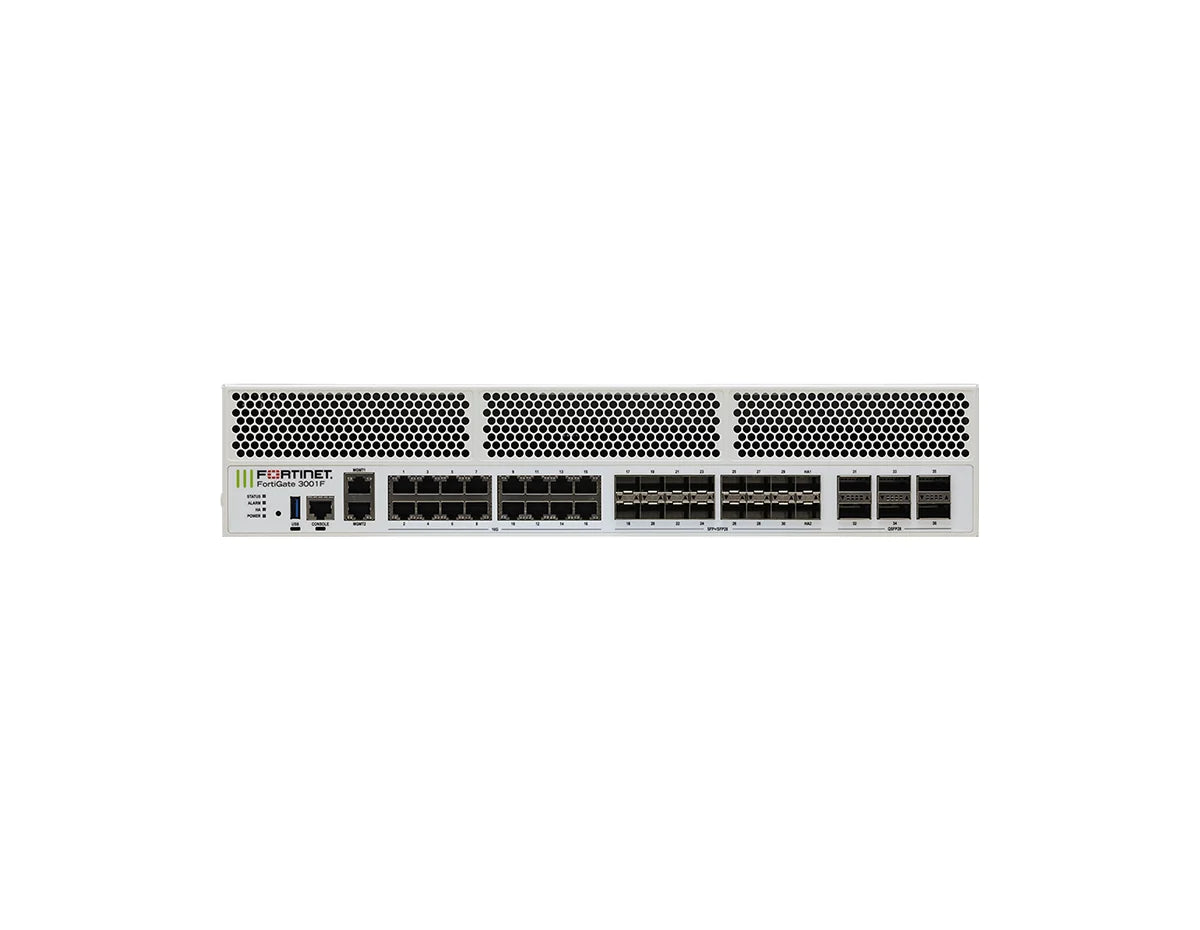

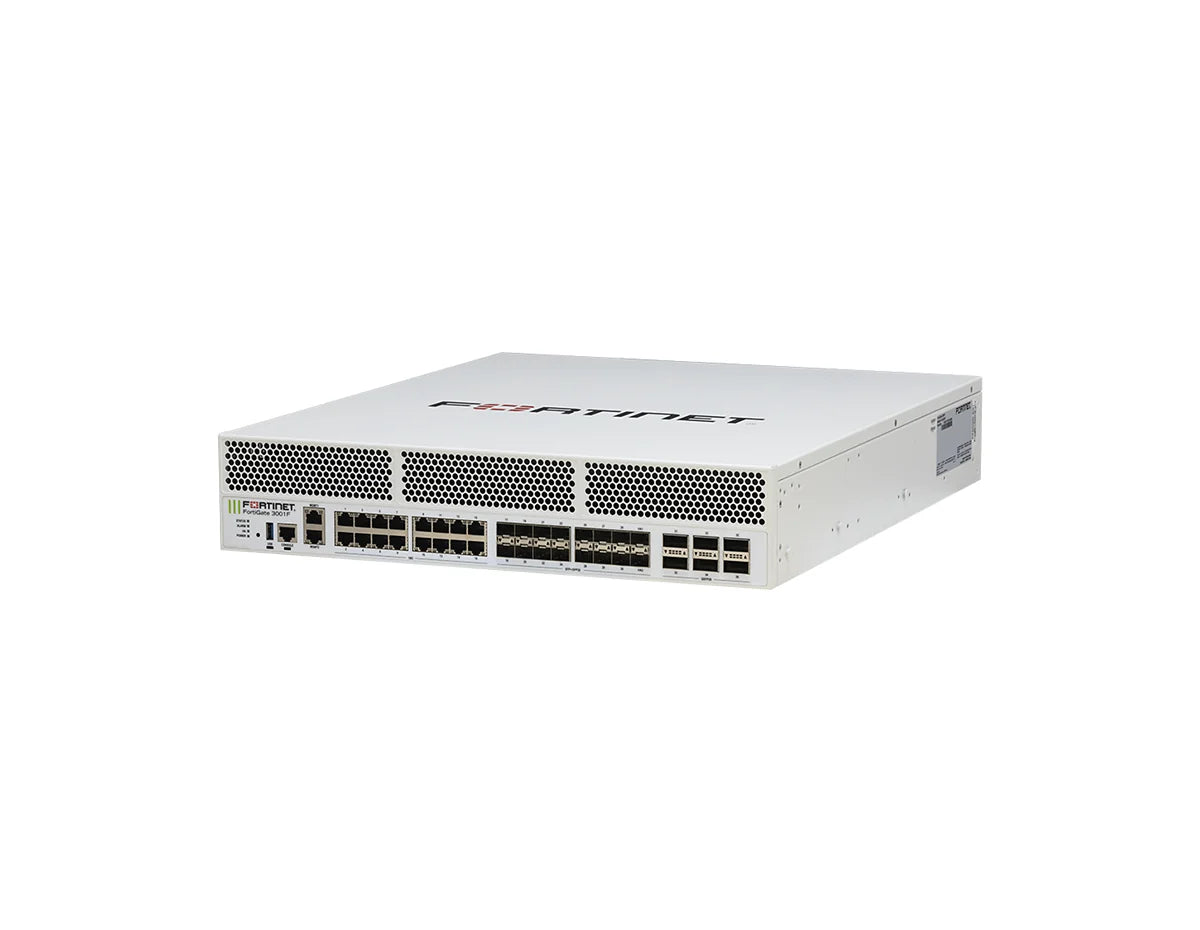

The FortiGate 3001F-DC is a Next-Generation Firewall (NGFW) for DC-powered data center and telecom deployments, with 2x 960GB SSDs and 100 GE connectivity. This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year).
Powered by Fortinet's SPU NP7 and CP9 processors, it delivers 34 Gbps of NGFW throughput with ultra-low latency. High-speed interfaces and onboard storage support hyperscale security architectures and local logging.
Hyperscale Security with Dedicated DC Power and Onboard Storage
- 34 Gbps NGFW throughput with NP7 and CP9 acceleration.
- 6x 100 GE QSFP28 / 40 GE QSFP+ slots.
- 16x 25 GE SFP28/10 GE SFP+/GE SFP slots.
- 16x multi-gig RJ45 ports plus 2x 10 GE/GE mgmt.
- 2x 960GB SSD onboard storage for local logging.

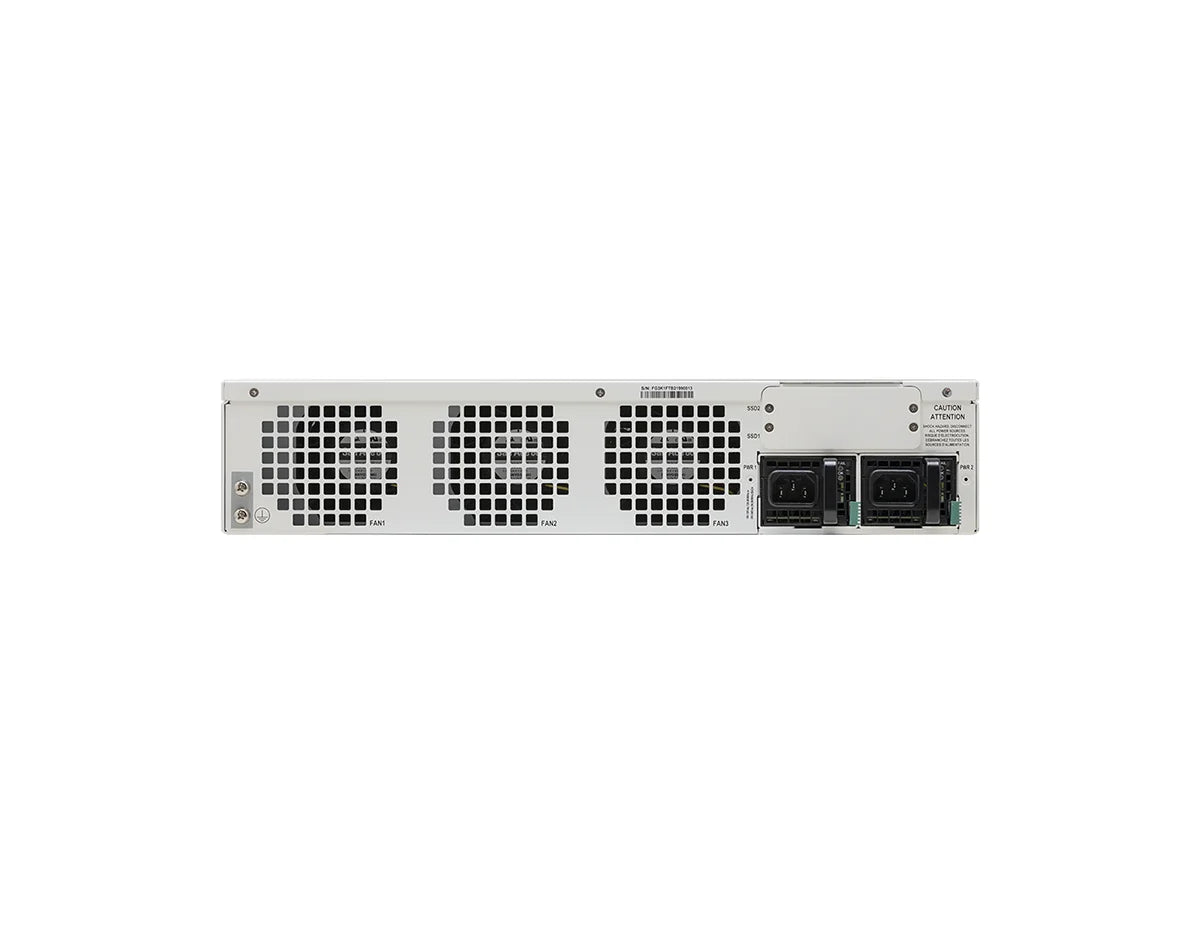

- 48-60VDC input with redundant dual DC power supplies.
Upgrade Your Network Security
Deploy the FortiGate FG-3001F-DC-BDL-809-12 with FortiCare Premium + FortiGuard Enterprise Protection (1 Year).
