Wi-Fi 6E tri-band performance, 2.4 GHz 5 GHz 6 GHz radios, up to 8.35 Gbps throughput, dual 5G Ethernet ports, 8 external antennas, enterprise indoor access point
[/shortdesc]
[properties]
| Model |
FAP-433G-A |
| Product Type |
Wireless Access Point |
| Wireless Standard |
Wi-Fi 6E (IEEE 802.11ax) |
| Network Band |
Tri-Band (2.4 GHz, 5 GHz, 6 GHz) |
| Number of Radios |
3 + 1 BLE |
| Antenna Type |
External (RP-SMA) |
| Total Antennas |
8 External + 1 Internal BLE |
| Maximum Data Rate |
Up to 4.8 Gbps (Radio 3) |
| Ethernet Interfaces |
2 × 5 Gigabit Ethernet (RJ45) |
| Power over Ethernet |
802.3bt PoE or dual 802.3at (PoE current sharing) |
| Power Consumption (Max.) |
31.7 W |
| Bluetooth |
Bluetooth Low Energy (BLE) / ZigBee |
| Form Factor |
Ceiling mountable, wall mountable, rail-mountable |
| Deployment |
Indoor |
[/properties]
[specifications]
| Radio 1 |
2.4 GHz, 4×4 MIMO, up to 1148 Mbps |
| Radio 2 |
5 GHz, 4×4 MIMO, up to 2402 Mbps |
| Radio 3 |
6 GHz, 4×4 MIMO, up to 4804 Mbps |
| Maximum Transmit Power |
2.4 GHz: 27 dBm;
5 GHz: 26 dBm;
6 GHz: 24 dBm |
| SSID Support |
Up to 24 SSIDs |
| Client Capacity |
Up to 512 clients per radio |
| Security |
WPA, WPA2, WPA3 |
| Management |
FortiGate integrated controller or FortiEdge Cloud |
| Certifications |
Wi-Fi Alliance Certified; CE; FCC; IC |
[/specifications]
[accesories]
| Included |
FortiAP 433G-A Access Point; Ceiling, T-rail, and wall mounting kit (included in the box) |
[/accesories]
High-Density Wi-Fi 6E Performance for Modern Enterprises

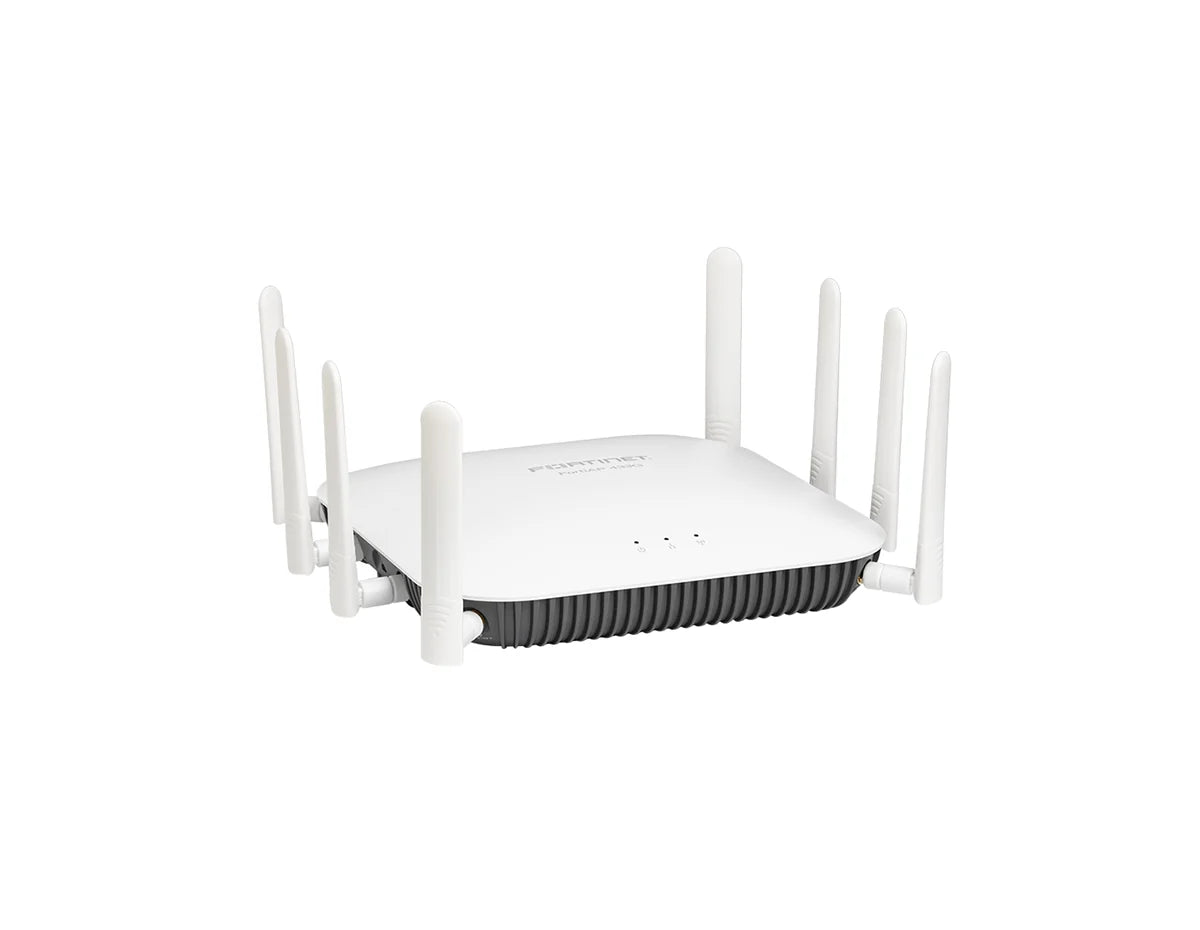

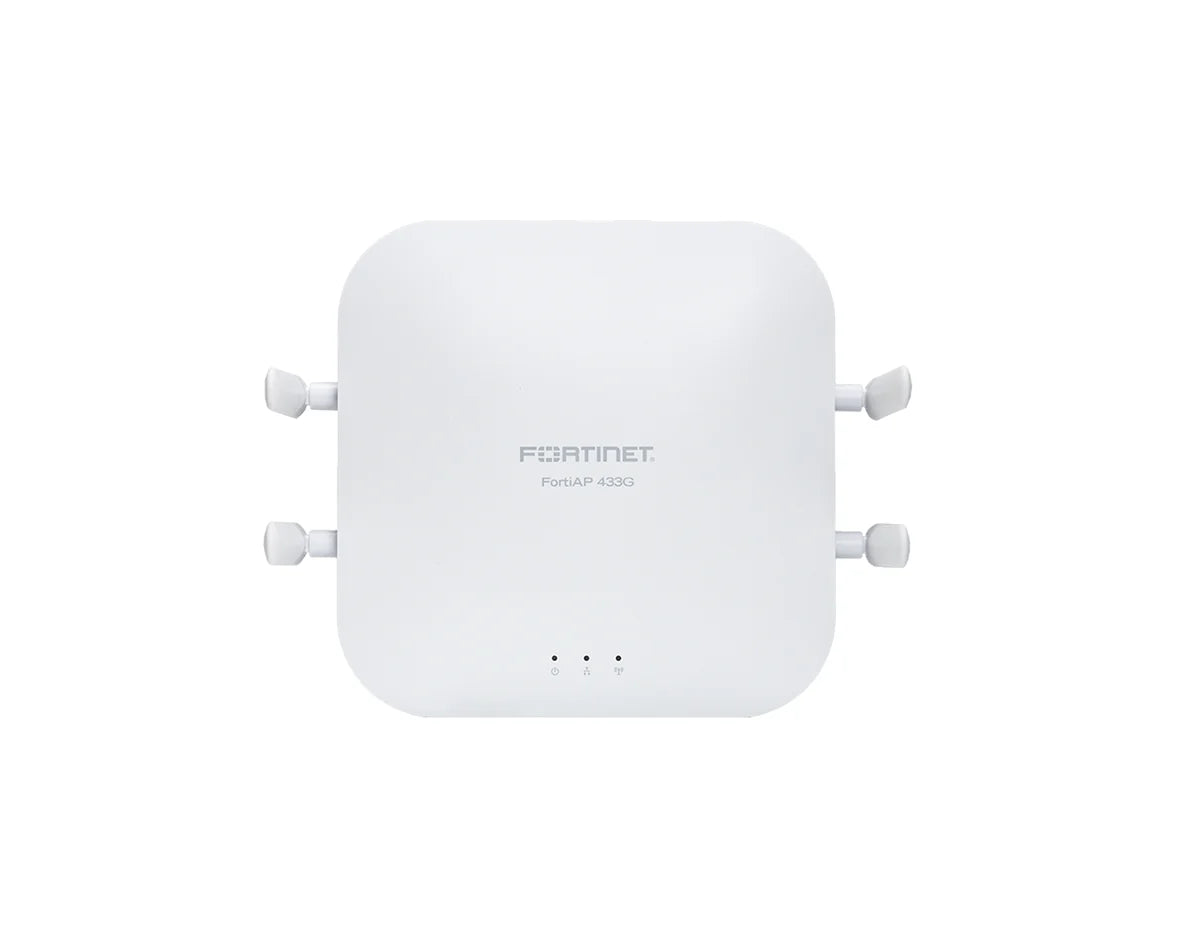

The Fortinet FAP-433G-A is a high-performance indoor wireless access point engineered for enterprise and campus environments demanding ultra-low latency and high client density. Built on Wi-Fi 6E (802.11ax) technology, it delivers true tri-band operation across 2.4 GHz, 5 GHz, and the newly opened 6 GHz spectrum, enabling cleaner channels and significantly higher aggregate throughput. When deployed as part of the Fortinet Security Fabric, the FAP-433G-A combines advanced wireless performance with centralized, security-driven management.
Key Benefits & Features
-
True Wi-Fi 6E Tri-Band Architecture: Dedicated 2.4 GHz, 5 GHz, and 6 GHz radios reduce congestion and improve performance for high-density environments.
-
High Aggregate Throughput: Supports up to 8.35 Gbps combined wireless data rates for demanding applications such as video conferencing and cloud workloads.
-
Advanced Multi-User Efficiency: OFDMA and MU-MIMO technologies optimize airtime efficiency and improve performance for simultaneous users.
-

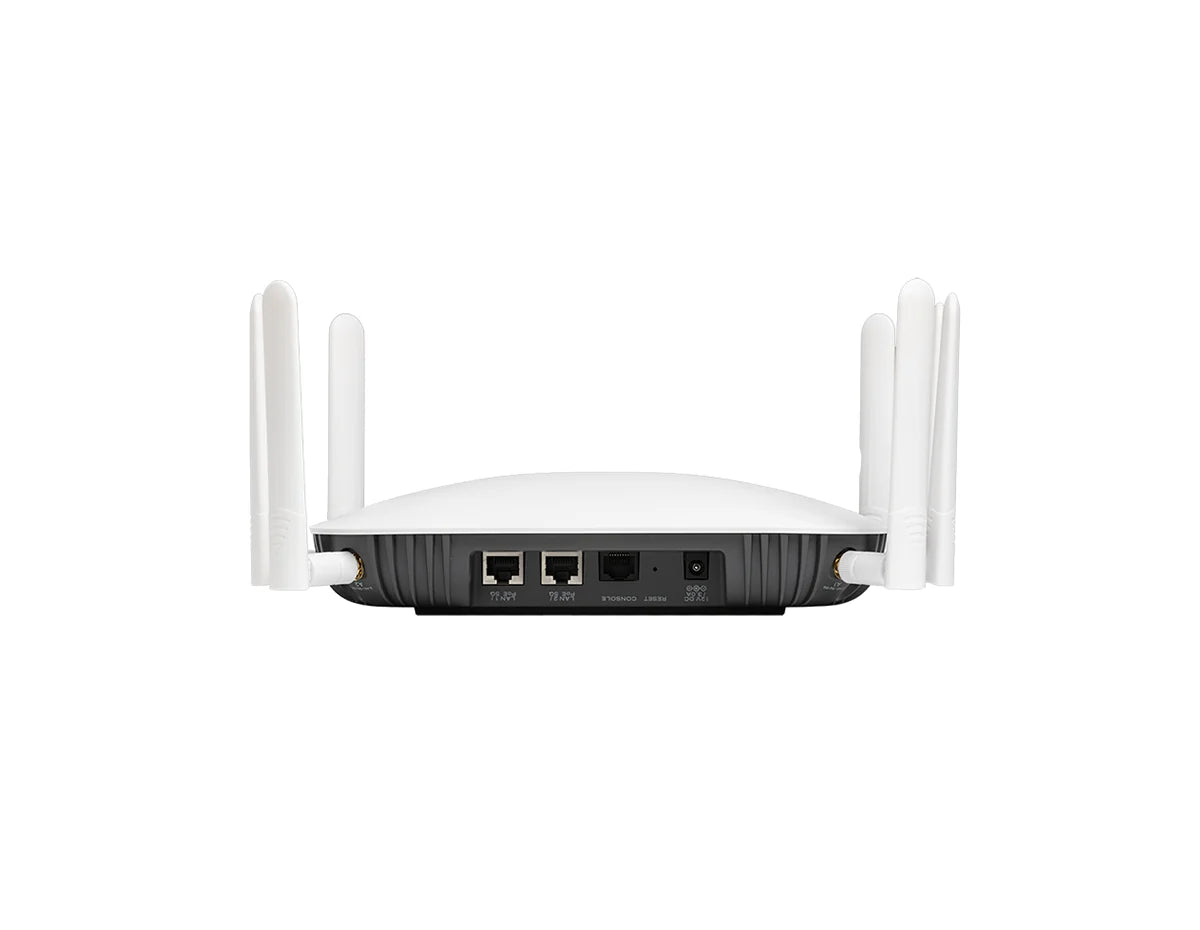

Dual 5G Ethernet Connectivity: Two 5 Gigabit Ethernet RJ-45 ports eliminate wired bottlenecks and support multi-gigabit uplinks with redundant PoE capabilities.
-
Centralized Secure Management: Managed via FortiGate integrated WLAN controller or FortiEdge Cloud for unified visibility and control.
Ideal Use Cases
- Enterprise offices with high client density
- Campus and education environments
- Healthcare and research facilities
- Retail and hospitality deployments
- Branch offices requiring secure Wi-Fi 6E access
Technical Specifications
-
Wireless Standard: IEEE 802.11ax (Wi-Fi 6E)
-
Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz
-
Radios: 3 radios (2.4/5/6 GHz) + 1 BLE/ZigBee radio
-
Maximum Throughput: Up to 8.35 Gbps aggregate
-
Ethernet Interfaces: 2 x 5 Gigabit Ethernet RJ-45
-
Antenna Type: 8 External RP-SMA connectors
-
Power: 802.3bt PoE or Dual 802.3at support, max consumption 31.7 W
-
Form Factor: Indoor ceiling or wall mountable
Upgrade Your Wireless Network with Confidence
Deploy the Fortinet FAP-433G-A to unlock secure, high-capacity Wi-Fi 6E connectivity. Order today.
This product has been discontinued.
