[shortdesc] Wi-Fi 6 tri-radio architecture, 2x2 MU-MIMO performance, wall-plate design, PoE PD and PoE PSE support, four Gigabit Ethernet ports [/shortdesc]
[properties]
| Model |
FortiAP-23JF |
| SKU |
FAP-23JF-A |
| Product Type |
Wall Plate Access Point |
| Wireless Standard |
Wi-Fi 6 (802.11ax) |
| Radio Configuration |
Tri-radio |
| MIMO Technology |
2x2 MU-MIMO |
| Supported Bands |
802.11 b/g/n/ax and 802.11 a/n/ac/ax |
| Bluetooth |
BT / BLE |
| Ethernet Ports |
4 x 10/100/1000 RJ45 |
| PoE Input |
1 x 802.3at PoE PD |
| PoE Output |
1 x 802.3af PoE PSE |
| Non-PoE Ports |
2 x Gigabit Ethernet |
| Console Port |
RJ45 |
| Mounting Type |
Wall plate |
| Region Code |
A |
[/properties]
[specifications]
| Internal Antennas |
Yes |
| Wireless Architecture |
Tri-radio design |
| PoE Standard Support |
IEEE 802.3at (PD), IEEE 802.3af (PSE) |
| Management |
FortiGate, FortiEdge Cloud, or SASE-managed |
| Deployment Type |
Indoor |
[/specifications]
[accesories]
| Included Accessories |
Wall plate mounting kit included in the box |
| Power Options |
802.3at PoE injector GPI-130 or AC adapter SP-FAP23J-PA-10 |
| Optional Accessories |
Desktop stand FAP-MNT-WJ-20 |
[/accesories]

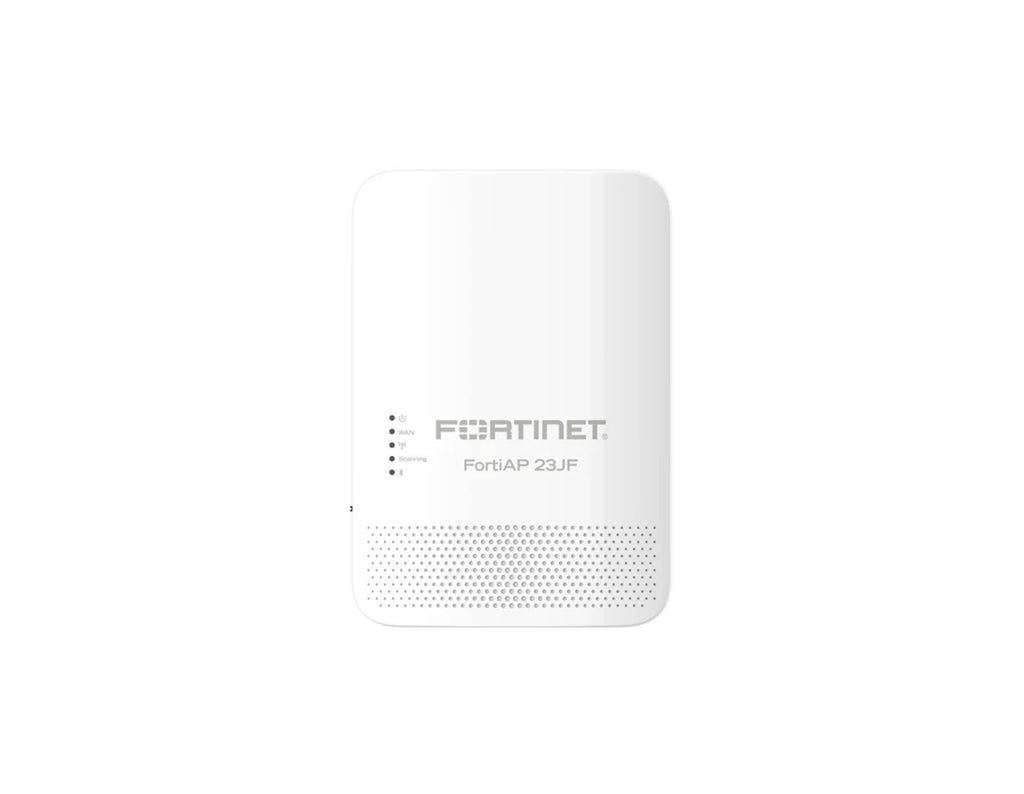

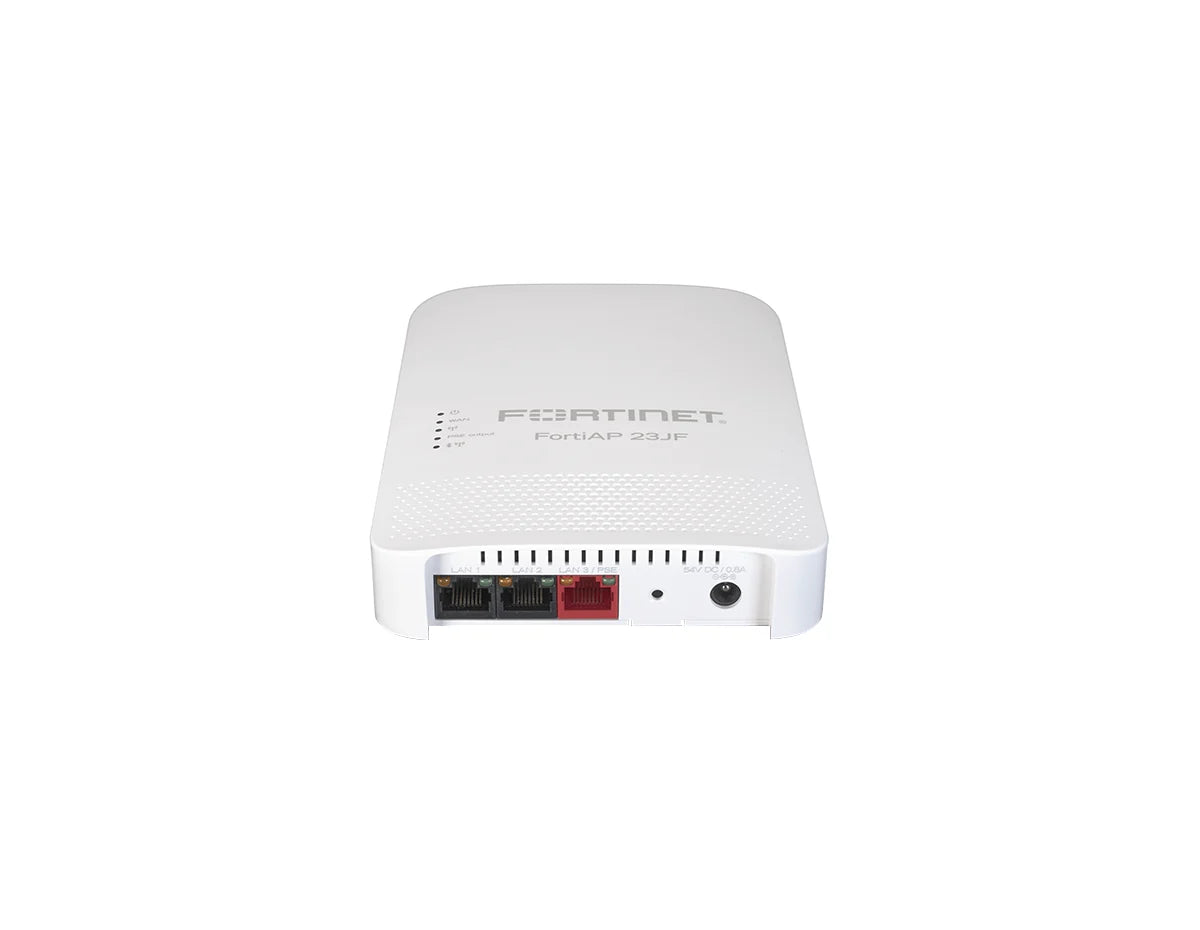

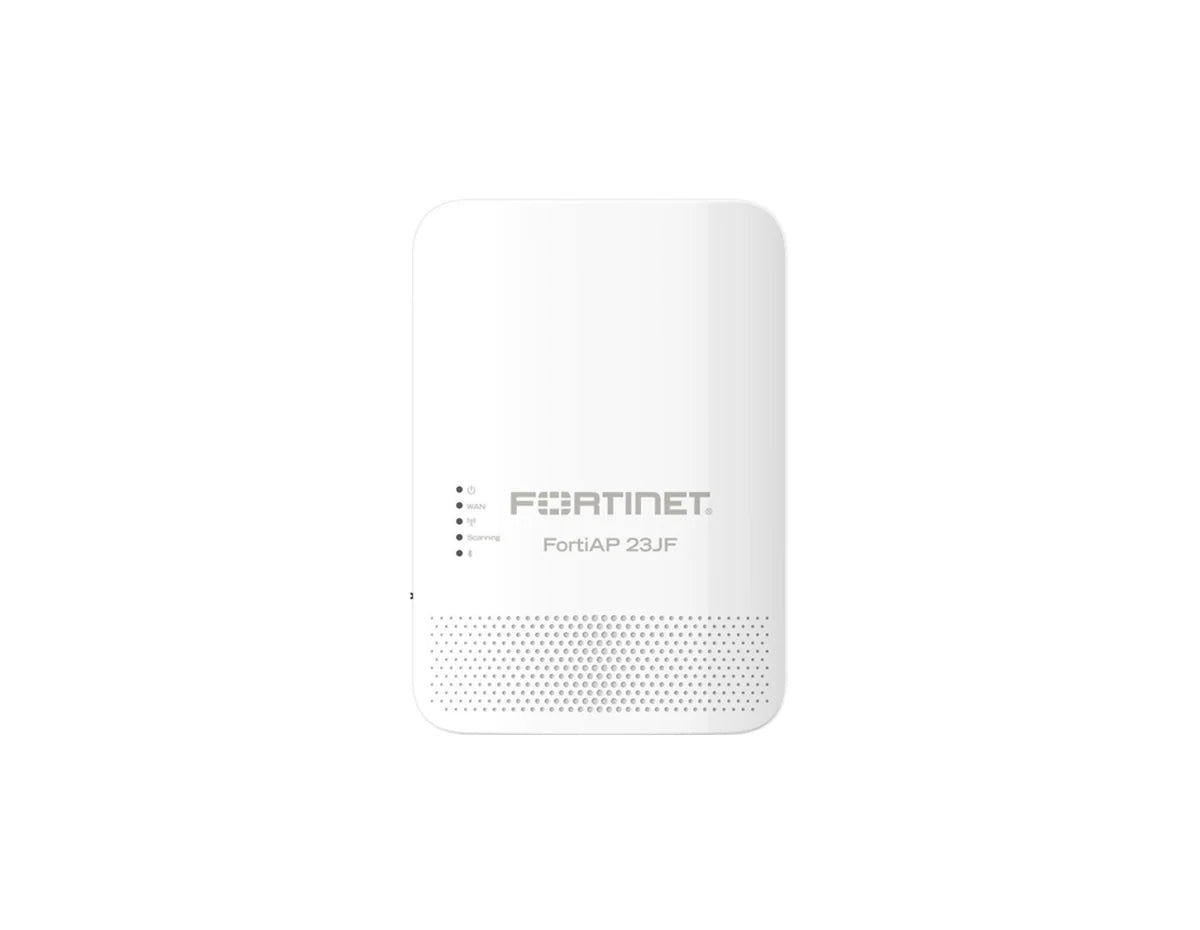

Enterprise Wi-Fi 6 Connectivity in a Discreet Wall Plate Design
The FortiAP-23JF is a compact Wi-Fi 6 wall plate access point designed for modern branch offices, hospitality environments, and micro-deployments where space, aesthetics, and performance matter. Built on a tri-radio 802.11ax architecture, it delivers reliable wireless coverage while also extending wired connectivity directly at the wall.
Fully integrated with FortiGate and FortiEdge Cloud management, the FortiAP-23JF enables centralized policy enforcement, secure onboarding, and simplified operations across distributed locations.
Key Benefits & Features
-
Tri-Radio Wi-Fi 6 Design: Dedicated 2.4 GHz and 5 GHz service radios with an additional scanning radio improve performance and RF visibility.
-
Wall Plate Form Factor: Ideal for hotel rooms, offices, and dormitories where ceiling mounts are not practical.
-
Integrated PoE PSE: One Gigabit Ethernet port provides 802.3af PoE output to power IP phones or other edge devices.
-
Multi-Port Gigabit Switching: Four RJ45 ports deliver high-speed wired access directly from the access point.
-
Bluetooth BLE Support: Enables location services, asset tracking, and IoT integration.
Ideal Use Cases
- Hotels, serviced apartments, and hospitality rooms
- Branch offices and remote micro-branches
- Education dormitories and residential campuses
- Healthcare and professional office environments
- Secure SD-Branch and SASE deployments
Technical Specifications
-
Wireless Standard: IEEE 802.11ax Wi-Fi 6
-
Radio Architecture: Tri-radio with 2x2 MU-MIMO
-
Ethernet Ports: 4 × 10/100/1000 RJ45
-
PoE Support: 1 × 802.3at PoE PD input, 1 × 802.3af PoE PSE output
-
Bluetooth: Integrated BT / BLE radio
-
Console: RJ45 serial console port
-
Mounting: Wall plate mounting kit included
-
Power Options: 802.3at PoE injector or optional AC adapter
-
Region: Region Code A
Upgrade Your Wall-Mounted Wireless Today
Deploy secure, high-performance Wi-Fi exactly where users need it most. Order the FortiAP-23JF today and modernize your edge network with confidence.
