[shortdesc] 5 dBi directional sector antenna, dual band 2.4 and 5 GHz, 2x2 MIMO support, RP-SMA connectors, indoor and outdoor installation [/shortdesc]
[properties]
| Model |
FANT-02ACAX-0505-D-R |
| Brand |
Fortinet |
| Product Type |
Directional Wi-Fi Sector Antenna |
| Antenna Pattern |
Directional Sector (120°) |
| Gain |
5 dBi (2.4 GHz), 5 dBi (5 GHz) |
| Frequency Range |
2.4–2.5 GHz, 4.9–5.9 GHz |
| Polarization |
Dual Slant ±45° |
| Connector Type |
2 × RP-SMA Male |
| Number of Elements |
2-element (2×2 MIMO) |
| Environment |
Indoor / Outdoor |
| Ingress Protection |
IP67 |
| Mounting |
Wall Mount |
| Compatibility |
FortiAP models with 2 × RP-SMA connectors |
[/properties]
[specifications]
| Horizontal Beamwidth |
120° (2.4 GHz / 5 GHz) |
| Vertical Beamwidth |
70° (2.4 GHz / 5 GHz) |
| VSWR |
≤ 2.0 |
| Front-to-Back Ratio |
≤ 17 dB (2.4 GHz), ≤ 20 dB (5 GHz) |
| Port-to-Port Isolation |
≤ 20 dB |
| Nominal Impedance |
50 Ohms |
| Maximum Input Power |
20 W |
| Cable Length |
24 in. RG-316 |
| Operating Temperature |
−40 °C to +70 °C (−40 °F to +158 °F) |
| Wind Load |
220 km/h |
[/specifications]
[accesories]
| Optional Mounting Hardware |
FAN-M22Z-5 Adjustable Mount |
[/accesories]
Focused WiFi Coverage for Controlled Environments

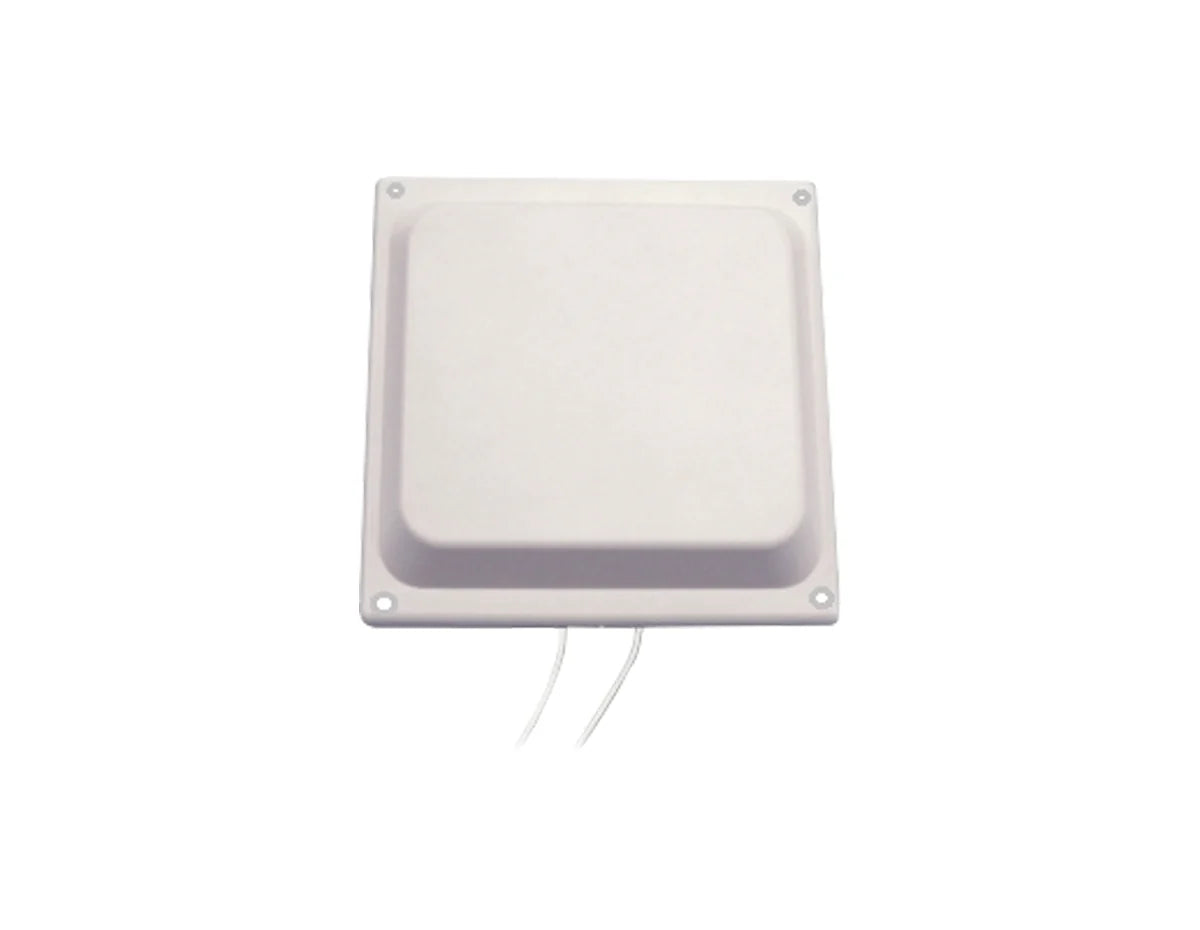

The Fortinet FANT-02ACAX-0505-D-R is a dual-band directional sector antenna designed to deliver controlled, predictable WiFi coverage in targeted areas. Built for 2x2 MIMO deployments, this antenna enhances signal focus and reduces co-channel interference, making it ideal for structured wireless designs using Fortinet FortiAP access points.
With a 120-degree sector radiation pattern and 5 dBi gain, the antenna concentrates RF energy where it is needed most. Its lightweight, UV-protected radome supports reliable operation in both indoor and outdoor environments, ensuring consistent performance across a wide range of enterprise and commercial deployments.
Key Benefits & Features
-
5 dBi directional gain: Improves signal reach and stability while minimizing unnecessary RF spill into adjacent areas.
-
Dual-band operation: Supports both 2.4 GHz and 5 GHz bands for flexible WiFi planning and device compatibility.
-
2x2 MIMO optimized: Designed specifically for modern FortiAP access points requiring dual-element antenna configurations.
-
120-degree sector pattern: Ideal for covering hallways, courtyards, aisles, and rectangular spaces with precision.
-
RP-SMA connectivity: Two RP-SMA male connectors ensure direct compatibility with supported Fortinet FortiAP models.
Ideal Use Cases
- Retail stores and shopping centers
- Office corridors and long hallways
- Warehouses and logistics facilities
- Educational campuses and courtyards
- Targeted indoor or outdoor WiFi zones
Technical Specifications
-
Antenna type: Directional sector antenna
-
Gain: 5 dBi
-
Frequency range: 2.4 to 2.5 GHz and 4.9 to 5.9 GHz
-
MIMO configuration: 2x2
-
Beamwidth: 120-degree sector
-
Connectors: 2 x RP-SMA male
-
Mounting: Indoor or outdoor installation
-
Construction: Lightweight, UV-protected plastic radome
Upgrade Your Wireless Coverage Today
Deploy precise, interference-controlled WiFi coverage with the Fortinet FANT-02ACAX-0505-D-R. Order today and optimize your FortiAP deployment.
