Description

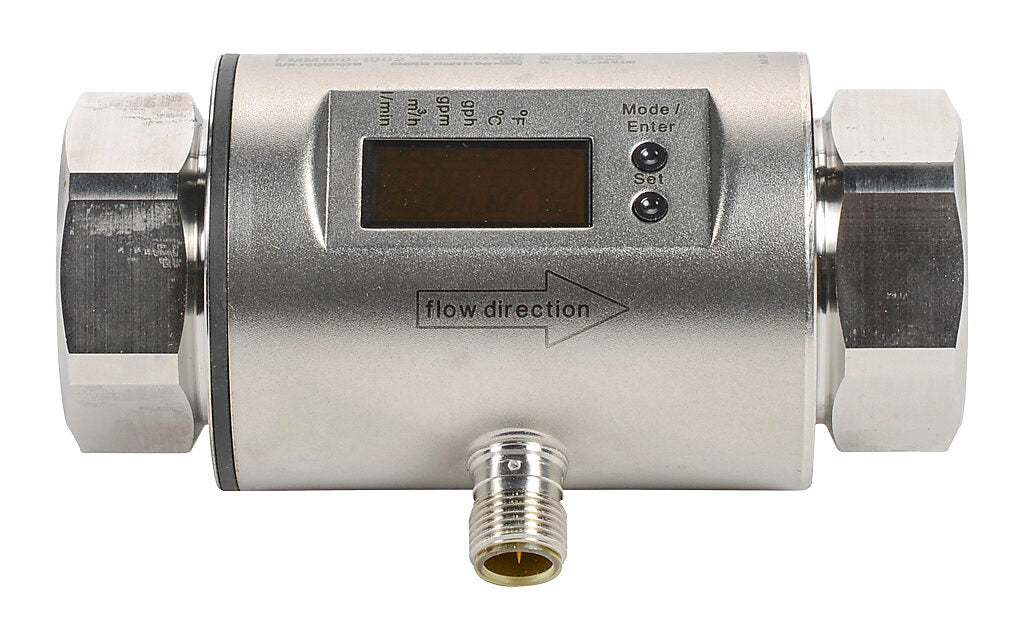

The Automation Direct FMM100-1002 is a ProSense magnetic-inductive flow meter designed for accurate measurement of water and compatible chemicals. It provides dual 4–20 mA analog outputs for integration with PLCs and control systems. Built with corrosion-resistant wetted materials and a 1-inch female NPT connection, the FMM100-1002 is suited for industrial fluid monitoring applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Process Control |

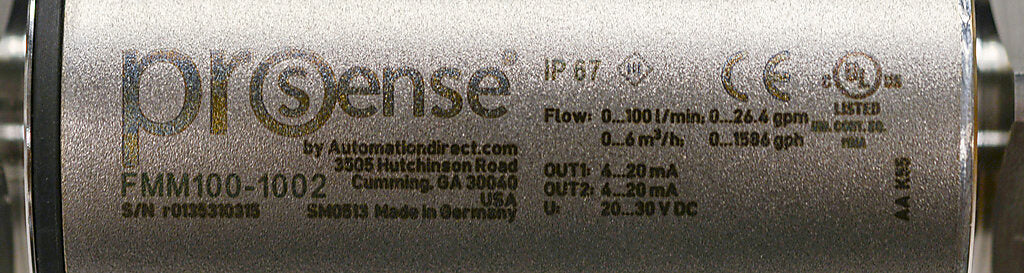

| Part Number |
FMM100-1002 |
| Subcategory |
Flow Meters |
| Series |
ProSense FMM100 |
| Media Type |
Water and chemicals |
| Sensing Type |
Magnetic-inductive |
| Process Connection |
1 in female NPT |
| Measuring Range (Flow) |
0 to 26.4 GPM |
| Temperature Range |
-4 to 176°F |
| Output |
(2) 4–20 mA analog outputs |
| Operating Voltage |
20–30 VDC |
| Electrical Connection |
4-pin M12 quick-disconnect |
| Seal Material |
FKM |
| Wetted Materials |
316L stainless steel, PEEK, FKM |
| IP Rating |
IP67 |
| Additional Information |
Cable sold separately |
| Weight |
2.5 lb |
Information About FMM100-1002

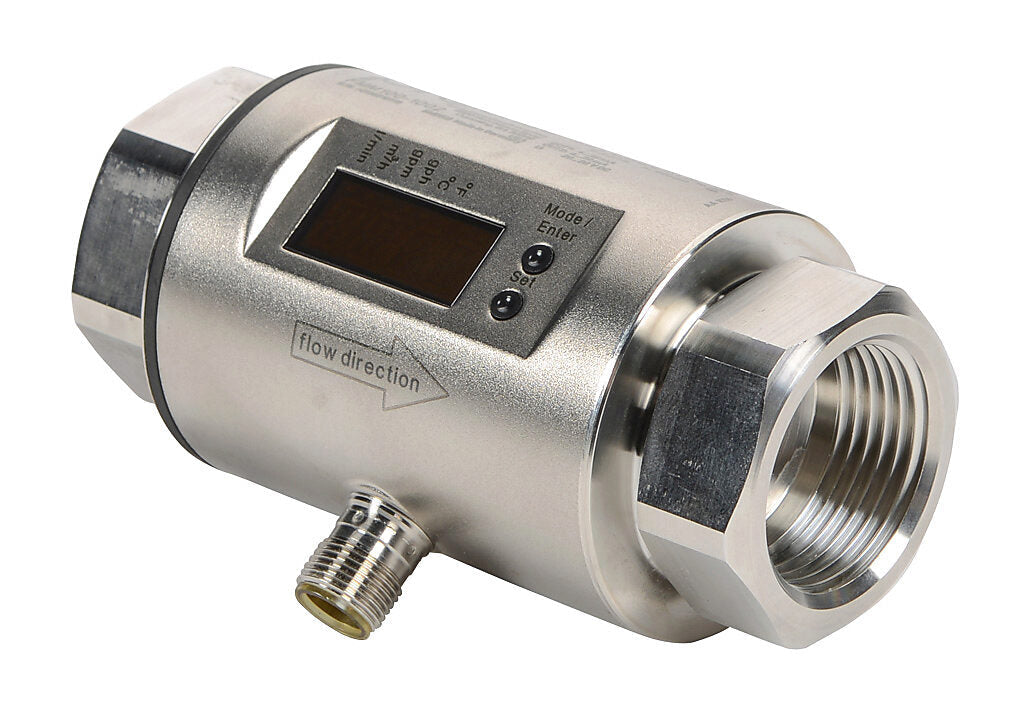

The FMM100-1002 is part of the ProSense FMM100 series of electromagnetic flow meters engineered for conductive liquid measurement. It uses magnetic-inductive sensing technology to deliver reliable flow readings without moving parts, reducing maintenance requirements. The unit features a 1-inch female NPT process connection and rugged IP67-rated housing for industrial environments. Designed for operation on 20–30 VDC, it offers dual 4–20 mA analog outputs and connects electrically through a 4-pin M12 quick-disconnect (cable sold separately).
Key Features:
- Magnetic-Inductive Sensing: Provides accurate flow measurement with no moving mechanical components.
- Water and Chemical Compatibility: Suitable for conductive liquids in industrial processes.
- 1-Inch Female NPT Connection: Standard threaded process connection for easy installation.
- Dual 4–20 mA Outputs: Two analog outputs for flexible control and monitoring integration.
- Wide Flow Range: Measures from 0 to 26.4 GPM.
- Broad Temperature Range: Operates from -4 to 176°F.
- Corrosion-Resistant Wetted Parts: Constructed with 316L stainless steel, PEEK, and FKM seals.
- IP67 Protection: Sealed housing for washdown and harsh environments.
The FMM100-1002 delivers the reliability and precision required for industrial liquid flow measurement and process control applications.
