Description
Product description

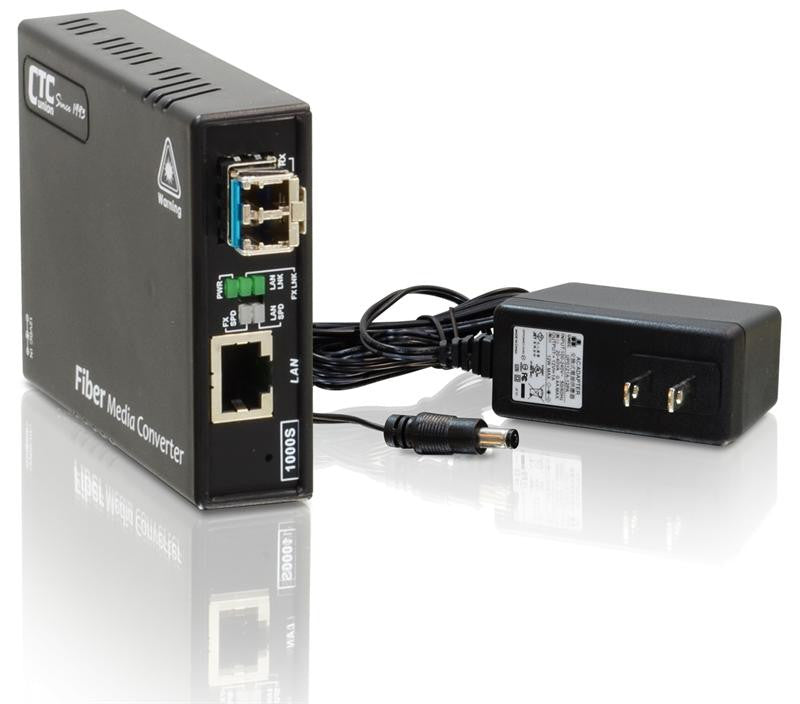

FMC-1000S-MM converter is an economical yet high performance un-managed Gigabit Ethernet fiber media converter. The FMC series of media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. FMC-1000S-MM Gigabit converter is a bundle between and FMC-1000S converter and an SFP 1.25G 1000Base-SX optical transceiver. The unit has one RJ-45 copper port with auto-negotiation 10/100/1000 and MDI/MDI-X features for the Gigabit Ethernet copper interface. Unit supports Q-in-Q pass through as well as VLAN tagged packets. Maximum packet size is 2048 bytes.AC 90-240V power adapter is included in carton package.
New Part Number: FMC-1001S-MM
Technical specifications
| Copper interface: | RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and IEEE 802.3ab 1000Base-T compliant |
| Optical interface: | 1000Base-SX, 850nm, dual LC connector |
| Ethernet interface: | Supports 10/100/1000Base-T/TX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100/1000 speed manual selection. Transmission Packet Rate for 10/100/1000Base-T/TX : 14880 per second /148800/1488000 per second. Copper TP cable 4 pair Cat. 5, 5e or 6 UTP |
| Features: | Q-inQ pass through, VLAN 802.1q pass through, max. packet size 2.048 bytes |
| Fiber operating distance: | 550m for 50/125um fiber and 275m for 62.5/125um fiber |
| Optical connector: | dual LC connector |
| Front LEDs: | PWR, Fiber Link, TP Link, TP Speed |
| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~50°C (Operating); 0~70°C (Storage) |
| Humidity: | 20 80% non condensing (Operating); 0 90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 73mm x 108mm x 23mm |
| Weight: | 160g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
Fiber power budget according to available models
(highlighted model is one available for purchase on this page)
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| FMC-1000S-MM | 550m | 850nm | -9.5 | -18 | 8.5 |
| FMC-1000S-XR | 2Km | 1310nm | -9 | -19 | 10 |
| FMC-1000S-SM10 | 10Km | 1310nm | -9.5 | -20 | 10.5 |
| FMC-1000S-SM40 | 40Km | 1310nm | -4 | -24 | 20 |
| FMC-1000S-SM50 | 50Km | 1550nm | -4 | -24 | 20 |
| FMC-1000S-SM80 | 80Km | 1550nm | 0 | -24 | 24 |
| FMC-1000S-SM120 | 120Km | 1550nm | 0 | -30 | 30 |
| FMC-1000S-WA20 | 20Km | Tx:1310nm Rx:1550nm | -8 | -23 | 15 |
| FMC-1000S-WB20 | 20Km | Tx:1550nm Rx:1310nm | -8 | -23 | 15 |
| FMC-1000S-WA40 | 40Km | Tx:1310nm Rx:1550nm | -3 | -23 | 20 |
| FMC-1000S-WB40 | 40Km | Tx:1550nm Rx:1310nm | -3 | -23 | 20 |
| FMC-1000S-WA60 | 60Km | Tx:1310nm Rx:1550nm | 0 | -24 | 24 |
| FMC-1000S-WB60 | 60Km | Tx:1550nm Rx:1310nm | -2 | -25 | 23 |
Additional information on FMC-1000S-MM converter:
PDF DatasheetProduct
