Overview

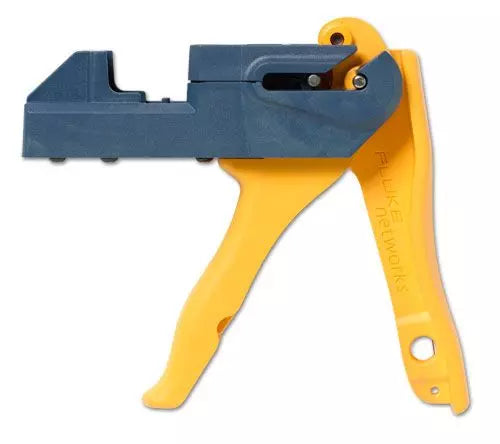

The Fluke Networks JR-ORT-2 JackRapid is a specialized termination tool engineered for precise installation of Ortronics connectivity solutions. The tool is designed to seat and terminate all eight wires within an RJ45 jack simultaneously, utilizing a single handle squeeze mechanism to provide consistent pressure during the termination process.
Key Features
-
Integrated Wire Trimming: A built-in blade system automatically shears off excess conductor wire during the handle actuation, removing the requirement for a secondary trimming operation.
-

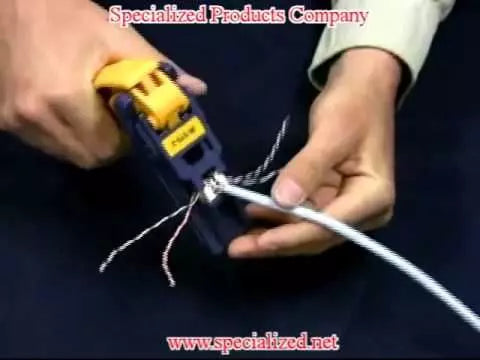

Single-Action Termination: The handle mechanism seats all eight conductors into the insulation displacement contact (IDC) slots in one movement, which minimizes physical effort during repetitive tasks.
-
Ergonomic Handle Geometry: The tool is structured for one-handed operation, which assists in reducing hand fatigue during high-volume installation projects.
-
Close-Wall Compatibility: The head geometry is optimized to allow for terminations in restricted spaces, including locations where jacks are installed in close proximity to wall surfaces.
-
Replaceable Blade Head: The design incorporates a modular blade head, allowing the user to swap heads to accommodate different jack types without replacing the entire tool body.
Technical Specifications
| Model Number |
JR-ORT-2 |
| Compatible Jack Systems |
Ortronics TJ5E00, TJ600, TJ610 |
| Tool Dimensions |
5.5" x 5.5" x 1.75" |
| Operation Type |
One-handed, spring-loaded handle |
| Termination Method |
Simultaneous seating and trimming |
| Warranty Period |
90 days from date of manufacture |
