The FLUKE-87VMAX is an industrial-grade True-RMS digital multimeter engineered to withstand harsh environments. It offers IP67 waterproofing, drop protection from up to 4 meters, extended temperature tolerance, and up to 800 hours of battery life.
[/shortdesc]
[specifications] [/specifications]

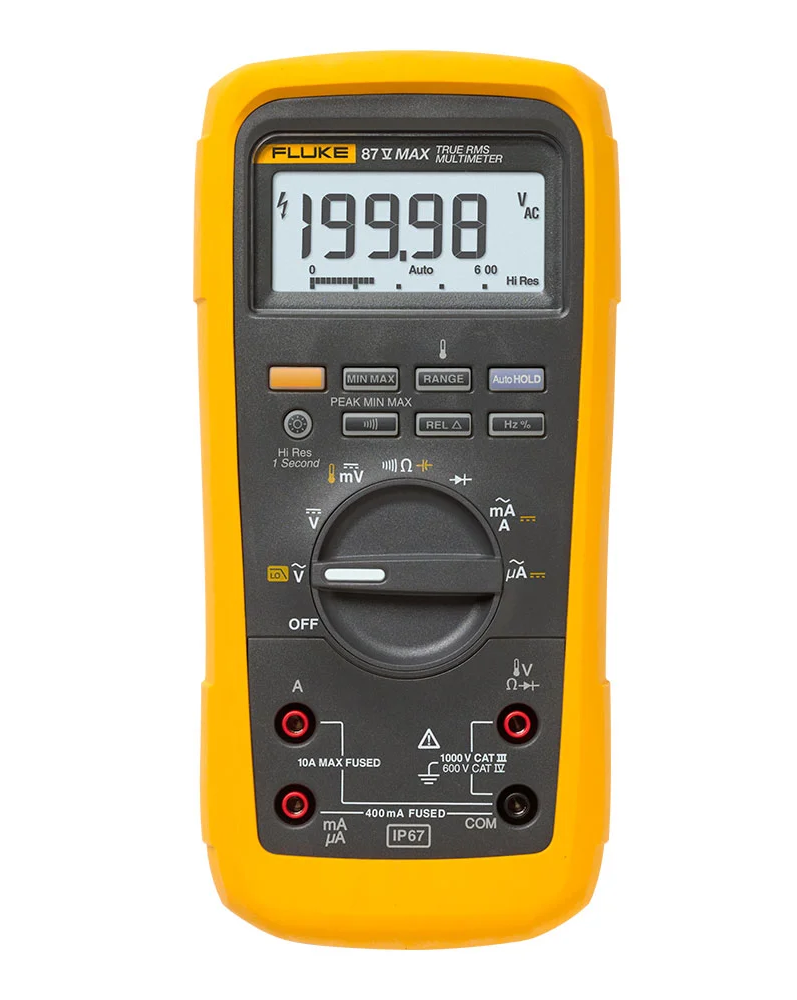

FLUKE-87VMAX True-RMS Digital Multimeter
Designed for use in extreme conditions, the FLUKE-87VMAX True-RMS Digital Multimeter combines trusted precision with rugged durability. With its IP67 rating for water and dust resistance, and a robust housing that survives 4-meter drops, it’s ideal for industrial and field environments. It provides accurate True-RMS readings for AC/DC voltage and current, plus frequency, temperature, resistance, continuity, and diode checks. A built-in thermometer, high-resolution 19,999 count display, and large, backlit keypad improve usability in low-light and electrically noisy conditions.
Key Features:
- True-RMS AC/DC voltage and current measurements
- Measures up to 1000 V and 10 A (20 A for 30 seconds)
- Frequency measurements up to 200 kHz
- Built-in temperature function with included thermocouple
- Min/Max/Average recording and 250 μs Peak capture
- Variable frequency drive (VFD) filtering for accurate motor readings
- Large dual-level backlit display and keypad lighting
- IP67 rated waterproof and dustproof housing
- Withstands 4-meter (13 ft) drops
- Battery life up to 800 hours on three AA batteries
Technical Specifications:
-
DC Voltage Accuracy: ±(0.05% + 1), Range: 0.1 mV to 1000 V
-
AC Voltage Accuracy: ±(0.7% + 4), Range: 0.1 mV to 1000 V
-
DC Current: ±(0.2% + 2), up to 10 A
-
AC Current: ±(1.0% + 2), up to 10 A
-
Resistance: 0.1 Ω to 50 MΩ
-
Capacitance: 0.01 nF to 9999 µF
-
Frequency: 0.5 Hz to 199.99 kHz
-
Temperature: -200 °C to +1090 °C
-
Display: 19,999 count high-resolution mode
-
Safety Ratings: CAT IV 600 V, CAT III 1000 V
-
IP Rating: IP67 (waterproof and dustproof)
-
Drop Protection: Up to 4 meters
-
Power: 3x AA batteries (800-hour life)
-
Size: 6.0 cm x 10.1 cm x 21.5 cm
-
Weight: 698.5 g (with holster)
