Description

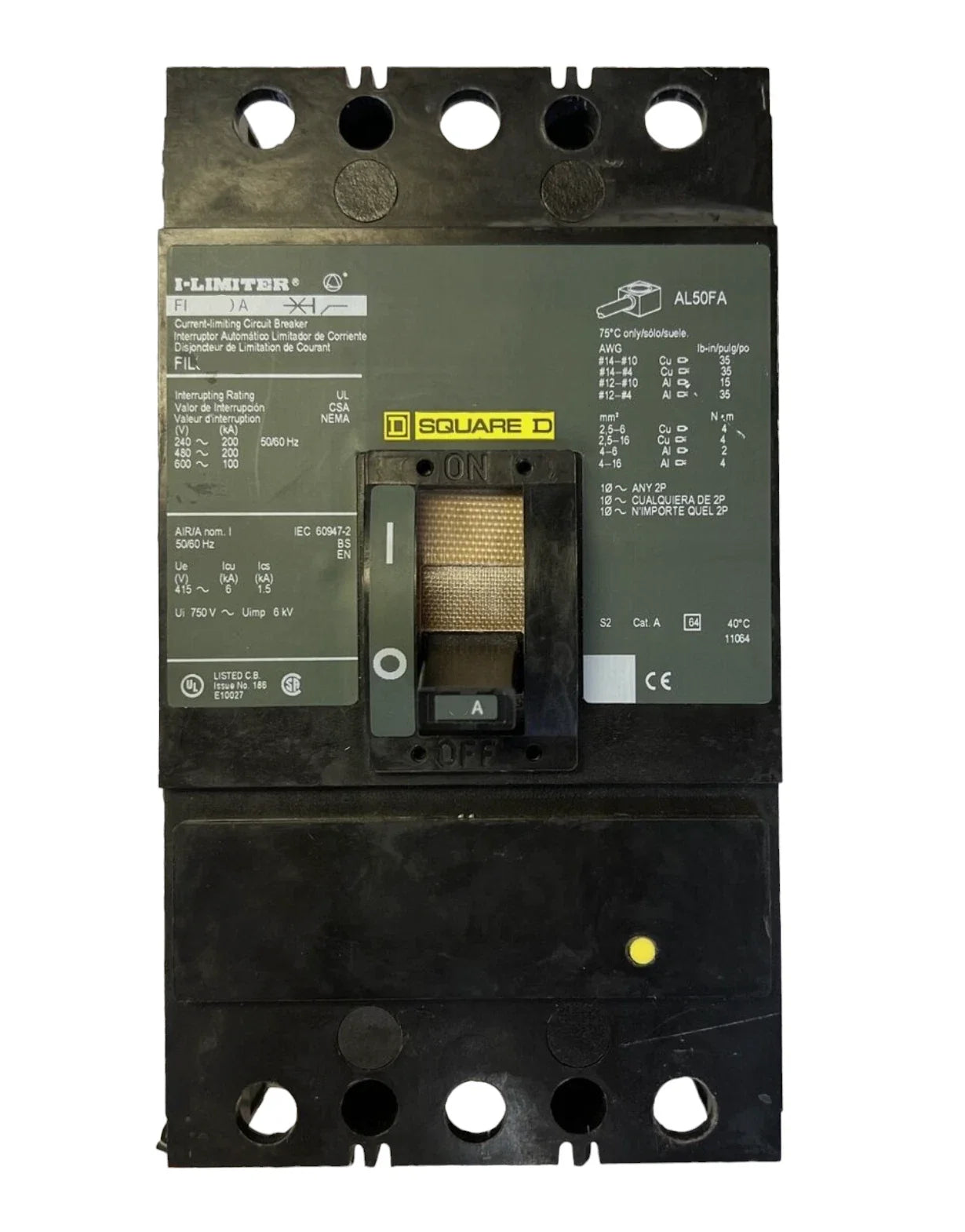

The Schneider Electric FIL36060 is a three pole molded case circuit breaker designed for high-performance protection in low-voltage power distribution systems. It provides thermal magnetic protection with long-time and instantaneous trip functions for controlled operation in demanding industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Protection |
| Part Number |
FIL36060 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
FIL |
| Frame Type |
FIL |
| Amperage Rating |
60 A |
| Voltage Rating |
600 VAC |
| Number of Poles |
3 |
| Phase |
3 Phase |
| Interrupting Rating |
200 kAIC @ 480 V |
| Protection Type |
Thermal Magnetic |
| Trip Functions |
Long-Time and Instantaneous (LI) |
| Connection Type |
Feed-Thru |
| Terminal Connection |
Line and Load Side Lugs |
| Weight |
8.999 lbs |
Information About FIL36060
The FIL36060 is part of the Schneider Electric FIL Series, engineered for molded case circuit breaker applications requiring exceptionally high interrupting capacity. This breaker supports three-phase electrical systems with a continuous current rating of 60 amps and a maximum operating voltage of 600 VAC. It incorporates a thermal magnetic trip unit that delivers coordinated overload protection and instantaneous short-circuit interruption. The feed-thru connection design with line and load side lugs allows efficient integration into switchgear and power distribution assemblies where reliability and fault tolerance are critical.
Key Features
- Thermal Magnetic Protection System: Combines a calibrated thermal element for overload protection with an instantaneous magnetic trip to respond rapidly to short-circuit faults.
- Ultra-High Interrupting Capacity: Rated at 200 kAIC at 480 V, supporting safe interruption of extremely high fault currents in heavy-duty power systems.
- Three Pole Configuration: Ensures balanced protection across all phases in three-phase distribution networks.
- Feed-Thru Connection Design: Supports straight-through power flow using line and load side lugs, simplifying wiring layouts in switchgear assemblies.
- FIL Heavy-Duty Frame: Engineered for mechanical strength and thermal stability under high fault and load conditions.
- Long-Time Trip Function: Protects conductors and connected equipment against sustained overcurrent situations.
- Instantaneous Trip Response: Minimizes fault energy and system stress by rapidly clearing short-circuit events.
The FIL36060 delivers the reliability and precision required for protecting critical three-phase power distribution circuits in industrial and utility-grade applications.
