Description

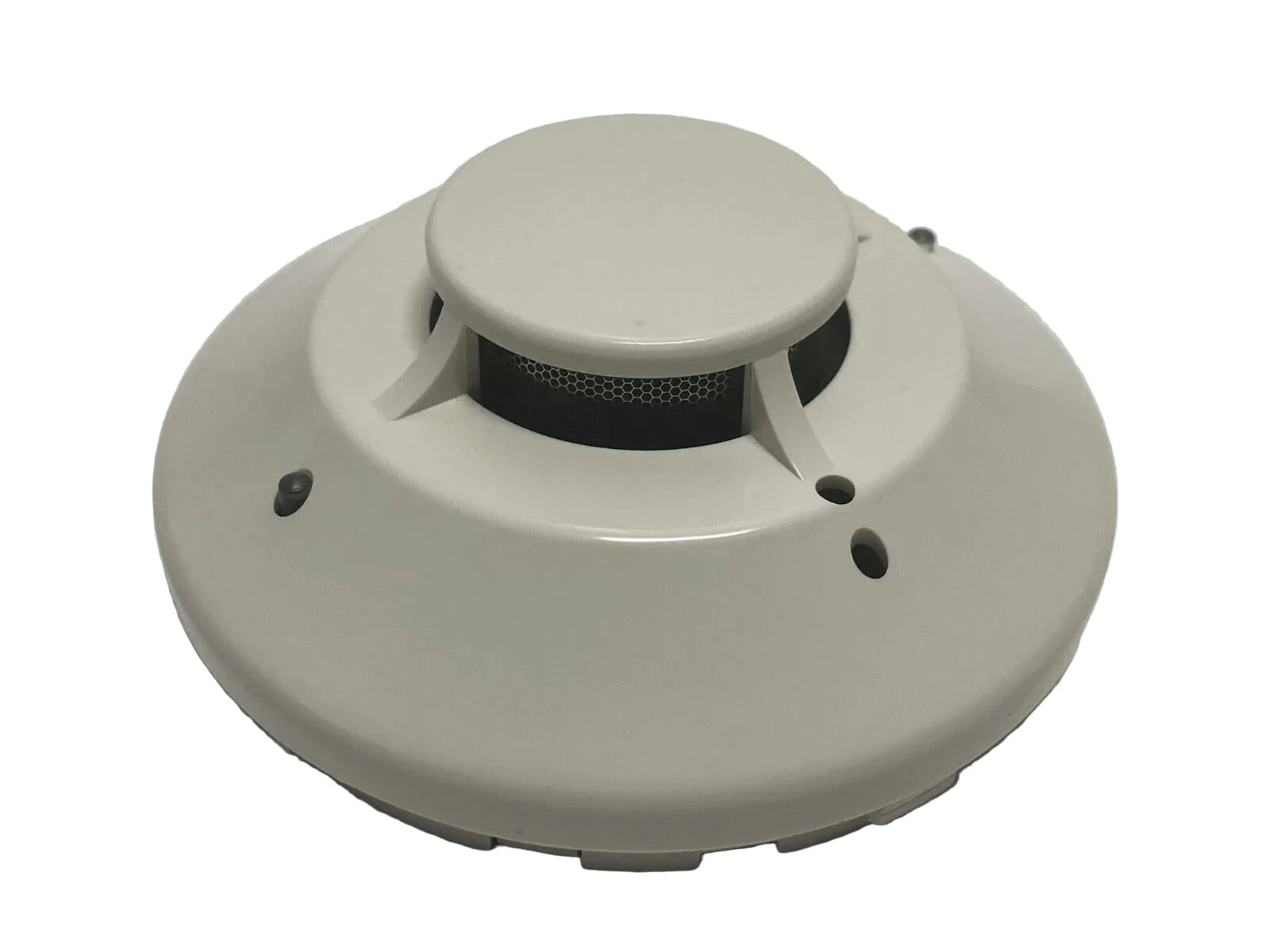

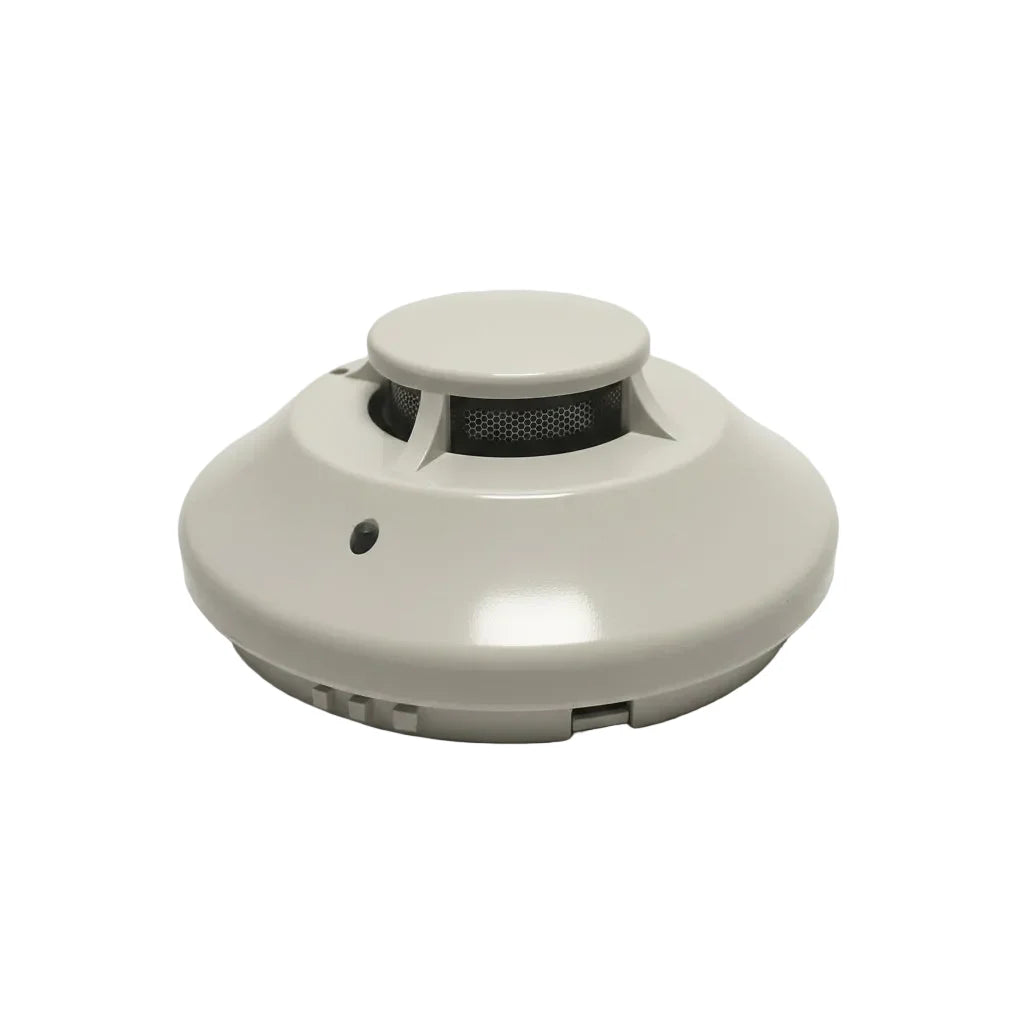

The Fike 67-033 is an intelligent ionization smoke detector designed for use with compatible Fike addressable fire alarm systems. Operating on a 15–30 VDC supply, it provides fast detection of flaming fires while offering low standby current consumption and continuous status indication through an integrated LED.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fike |
| Category |
Fire Alarm Systems |
| Part Number |
67-033 |
| Subcategory |
Intelligent Smoke Detectors |
| Product Type |
Addressable Ionization Smoke Detector |
| Detection Technology |
Ionization |
| Operating Voltage |
15–30 VDC |
| Standby Current |
481 µA @ 24 VDC |
| Alarm Current |
2 mA @ 24 VDC (LED on) |
| Sensitivity |
0.7–2.2% obscuration per ft |
| Maximum Air Velocity |
1,200 ft/min |
| Operating Temperature |
0°C to 49°C (32°F to 120°F) |
| Relative Humidity |
10% to 93% RH, non-condensing |
| Maximum Operating Temperature |
120°F (49°C) |
| Application |
Intelligent addressable fire alarm systems |
| Weight |
0.15 lbs |
Information About 67-033
The 67-033 is an addressable ionization smoke detector engineered for commercial and industrial fire alarm installations. It uses ionization sensing technology to provide rapid response to fast-flaming combustion while communicating with compatible Fike intelligent control panels. The detector operates reliably across a wide range of environmental conditions and is suitable for installation in areas with controlled airflow. Its low power consumption and supervised operation contribute to dependable long-term fire detection performance.
Key Features:
- Ionization Detection Technology: Provides rapid response to fast-flaming fire conditions.
- Intelligent Addressable Device: Communicates with compatible Fike fire alarm control panels.
- Wide Operating Voltage: Operates from 15 to 30 VDC.
- Low Standby Current: Consumes only 481 µA at 24 VDC during normal operation.
- Visual Alarm Indicator: Integrated LED draws 2 mA at 24 VDC when activated.
- Air Velocity Compatibility: Rated for airflow up to 1,200 feet per minute.
- Environmental Reliability: Operates in temperatures from 0°C to 49°C with humidity up to 93% RH.
- Commercial Fire Protection: Designed for continuous monitoring in intelligent fire alarm systems.
The 67-033 delivers the reliability and precision required for intelligent smoke detection in commercial and industrial fire alarm applications.
