Overview

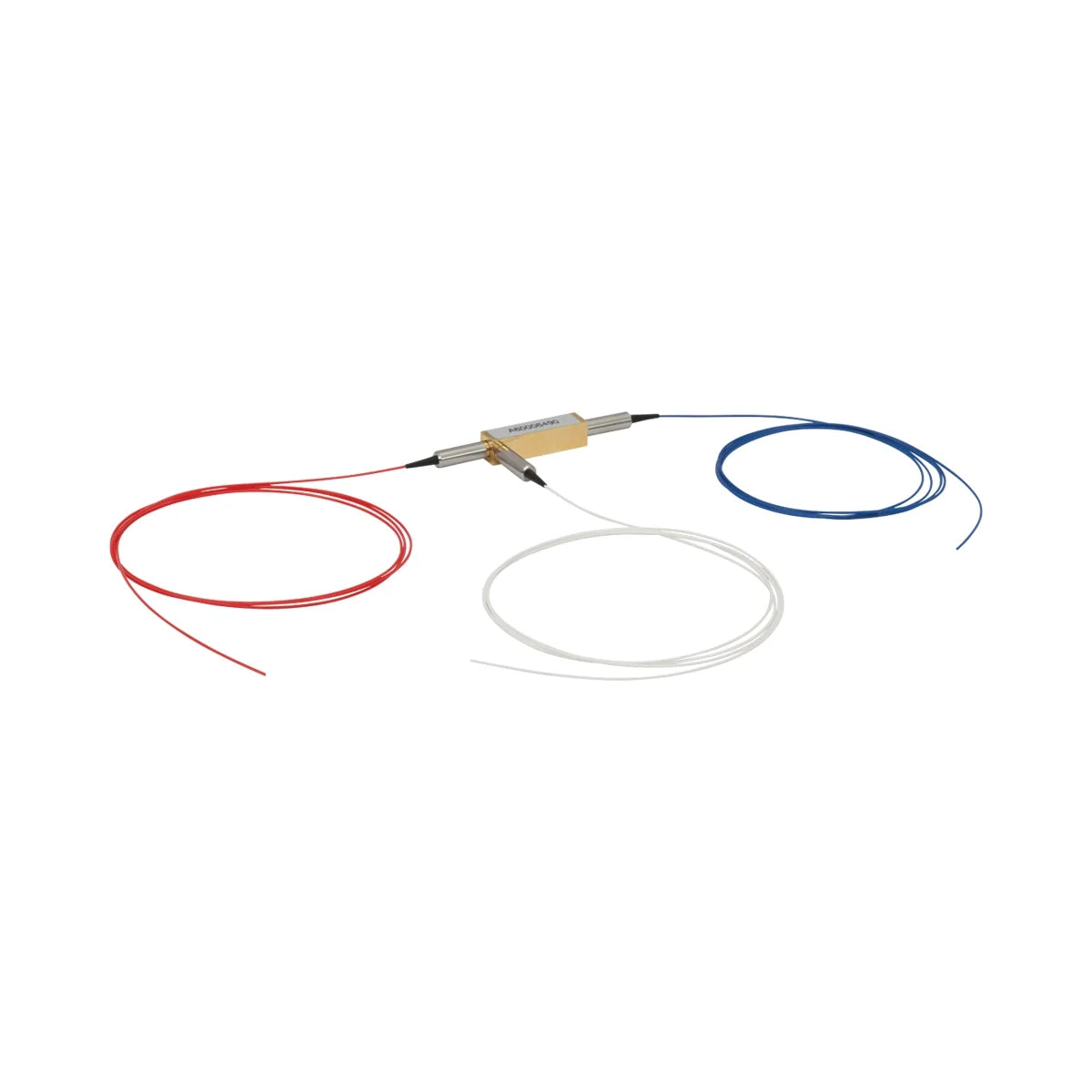

The CIR1064 is a single-mode fiber optic circulator designed for operation within the 1050 nm to 1070 nm wavelength range. This device acts as a non-reciprocal component that directs light entering any port to the next sequential port, while preventing backward transmission. It is supplied without optical connectors, allowing for custom integration into fiber-based systems.
Key Features
- Operates in the 1050 - 1070 nm spectral range, providing compatibility with Ytterbium-doped fiber lasers and standard near-infrared optical systems.
- Designed for single-mode fiber (SMF) applications, ensuring maintenance of beam profile and signal integrity.
- Non-reciprocal three-port routing architecture, which enables the separation of input and reflected signals.
- Compact package with a weight of 0.14 lbs, suitable for integration into benchtop or OEM optical setups.
- Supplied as a pigtail-style component without connectors, facilitating custom splicing or termination to specific system requirements.
Technical Specifications
| Parameter |
Value |
| Product SKU |
CIR1064 |
| Operating Wavelength |
1050 - 1070 nm |
| Fiber Type |
Single Mode (SMF) |
| Configuration |
3-Port Circulator |
| Connector Type |
None |
| Package Weight |
0.14 lbs |
| Compliance |
RoHS, REACH |
