Description

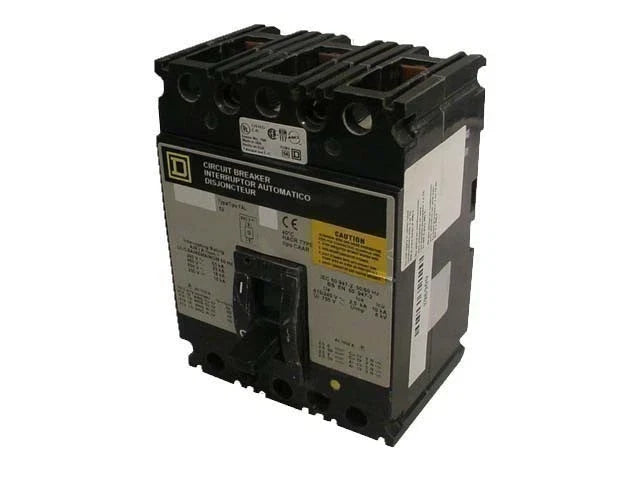

The Square D FHP36015TF is a 3-pole molded case circuit breaker designed to provide dependable overcurrent protection in high-voltage power distribution systems. Rated at 15 amps and up to 600 volts, this bolt-on breaker features thermal-magnetic protection and long-time/instantaneous trip functions for reliable circuit control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Molded Case Circuit Breaker |
| Part Number |
FHP36015TF |
| Subcategory |
3-Pole |
| Series |
FHP |
| Circuit Breaker Type |
Molded Case |
| Amperage |
15 Amp |
| Voltage Rating |
600 VAC |
| Poles |
3 |
| Phase |
3 |
| Mounting Type |
Bolt-On |
| Protection Type |
Thermal Magnetic |
| Trip Functions |
LI – Long-Time and Instantaneous |
| Interrupting Rating |
25kAIC at 480V |
| Application |
Power Distribution |
| Weight |
6.2 lb |
Information About FHP36015TF
The FHP36015TF is part of Square D’s FHP series, engineered for compact yet robust performance in commercial and industrial electrical installations. Built with a durable molded case construction, it is designed for bolt-on mounting to ensure secure electrical connections. This breaker supports three-phase systems and incorporates thermal-magnetic trip technology to protect against overloads and short circuits. Its interrupting capability makes it suitable for applications where consistent fault protection is required.
Key Features:
- 15 Amp Current Rating: Designed for precise protection of low-current branch circuits.
- 3-Pole Configuration: Supports balanced three-phase electrical systems.
- 600V Voltage Rating: Suitable for higher-voltage commercial and industrial applications.
- Thermal-Magnetic Protection: Provides reliable overload and short-circuit response.
- LI Trip Functions: Long-time and instantaneous tripping enhances system safety.
- Bolt-On Mounting Style: Ensures secure installation and dependable electrical contact.
- High Interrupting Capacity: Rated at 25kAIC at 480V for fault protection.
The FHP36015TF delivers the reliability and precision required for three-phase power distribution and circuit protection applications.
