Description

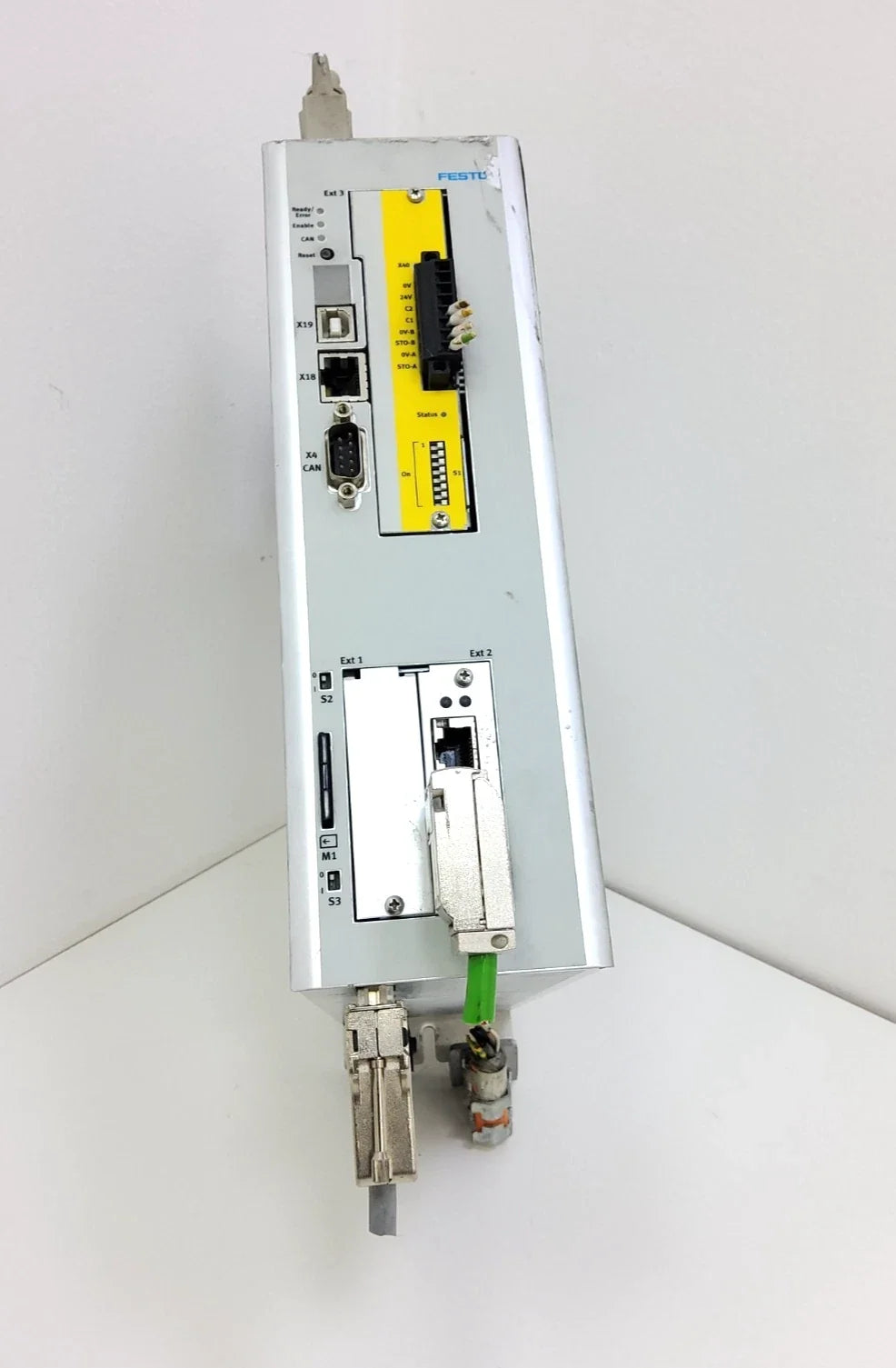

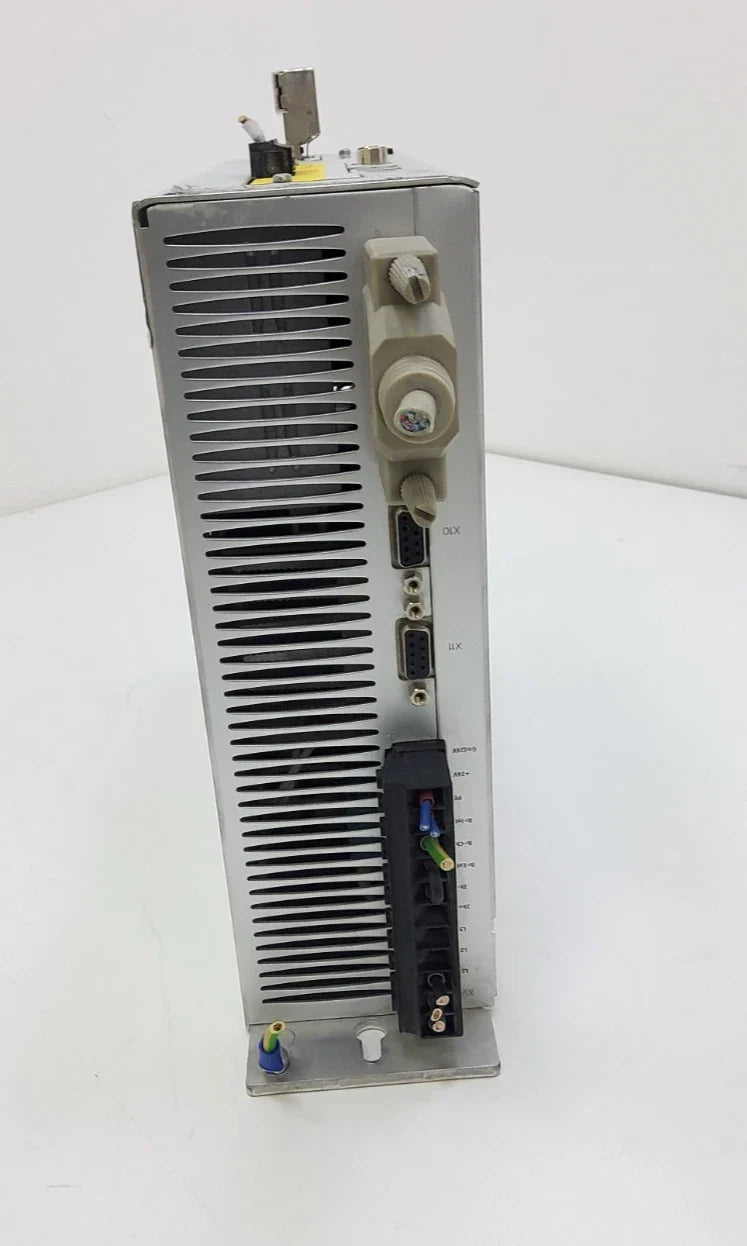

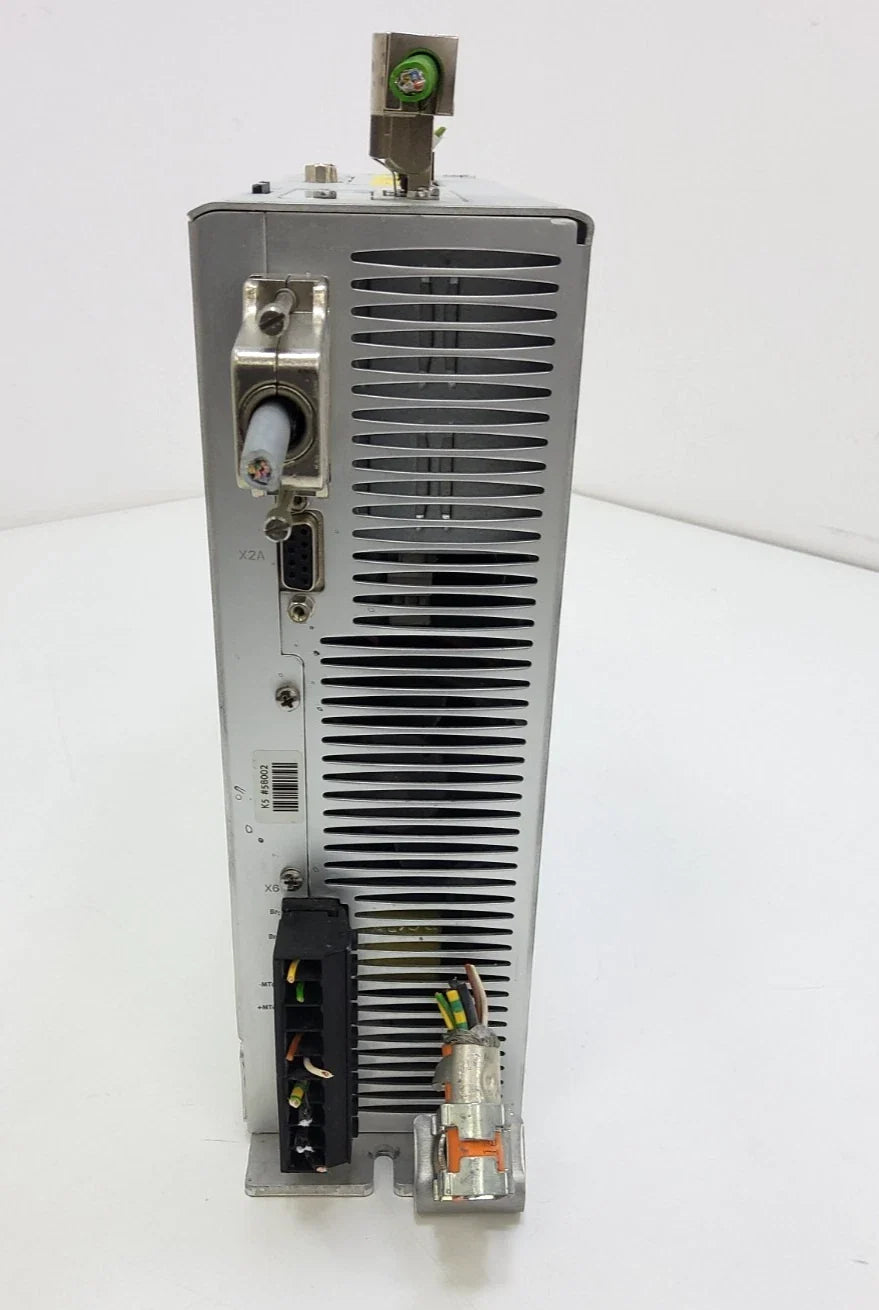

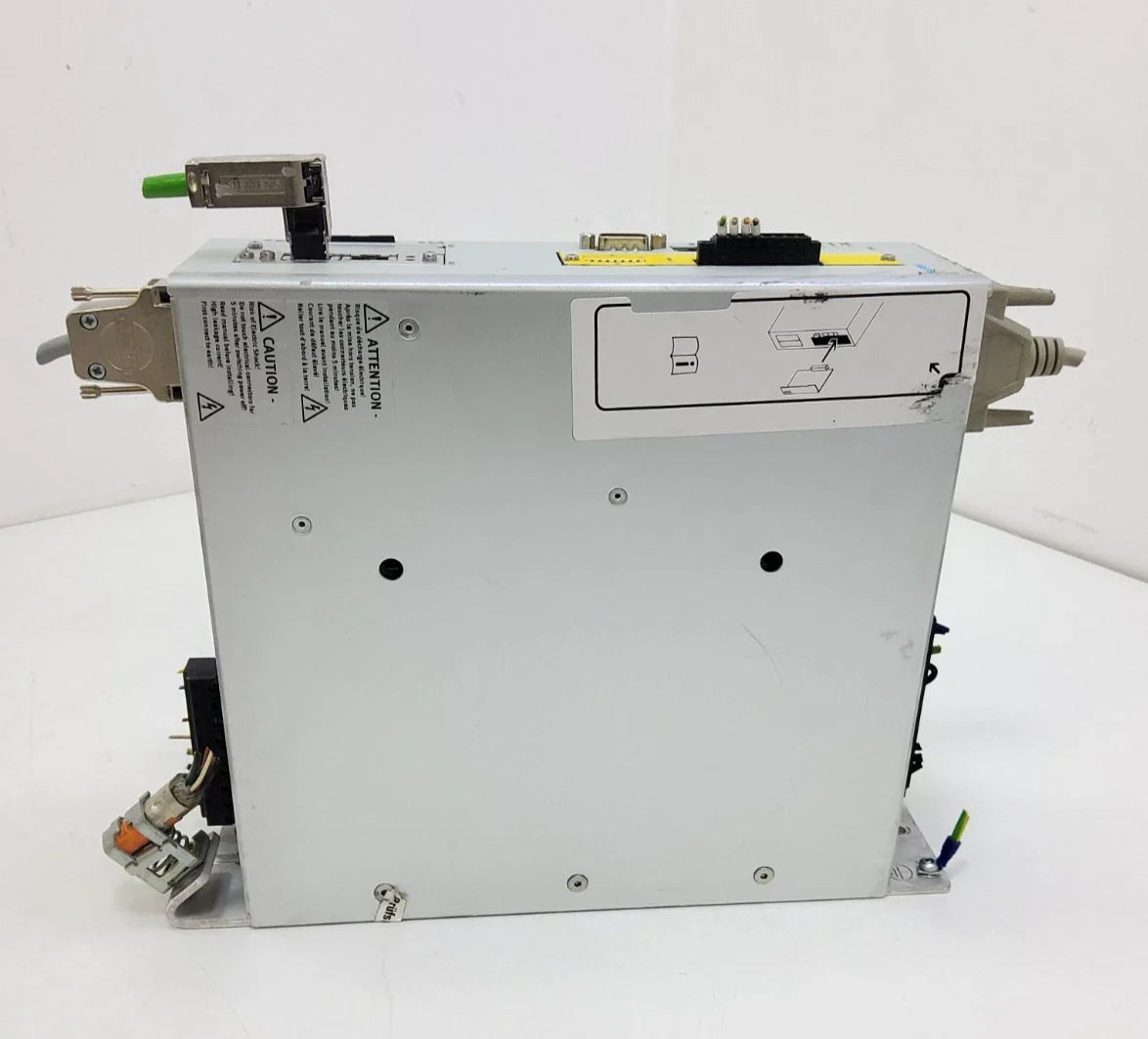

The FESTO CMMP-AS-C5-11A-P3-M3 is a servo drive controller designed for precise motion control in industrial automation systems. It provides accurate regulation of position, speed, and torque for servo motors operating on three-phase power. This unit is suited for high-performance applications requiring reliable and repeatable motion control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
FESTO |
| Category |
Servo Products |
| Part Number |
CMMP-AS-C5-11A-P3-M3 |
| Subcategory |
Servo Drive/Servo Control |
| Series |
CMMP-AS |
| Input Voltage |
400 VAC |
| Input Phase |
Three Phase |
| Frequency |
50/60 Hz |
| Rated Current |
5.5 A |
| Digital Inputs |
10 |
| Digital Outputs |
5 |
| Analog Inputs |
2 Setpoint Inputs |
| Analog Outputs |
2 Monitoring Outputs |
| Display Type |
Seven-Segment Display |
| Protection Rating |
IP10 / IP20 |
| Part Number (Alt.) |
1501327 |
| Weight |
7.61 lbs |
Information About CMMP-AS-C5-11A-P3-M3
The CMMP-AS-C5-11A-P3-M3 is part of FESTO’s CMMP-AS series, developed for advanced servo control in automated machinery. It features integrated control electronics with digital and analog interfaces for flexible system integration. The drive supports three-phase 400 VAC input and is designed to operate with compatible FESTO servo motors in coordinated motion systems. Equipped with onboard diagnostics and a seven-segment display, it enables straightforward monitoring and parameter configuration in industrial environments.
Key Features:
- Servo Drive Controller: Provides closed-loop control of position, speed, and torque for servo motor systems.
- Three-Phase Operation: Designed for 400 VAC, 50/60 Hz industrial power supply.
- Digital and Analog I/O: Includes 10 digital inputs, 5 digital outputs, and multiple analog interfaces for control flexibility.
- Integrated Display: Seven-segment display allows real-time status monitoring and parameter adjustments.
- High Current Capacity: Rated for 5.5 A operation to support medium-power servo applications.
- Analog Setpoint Inputs: Supports two analog inputs for precise command signal control.
- Monitoring Outputs: Provides analog outputs for system diagnostics and feedback integration.
- Compact Industrial Design: Built for installation in control cabinets with IP10/IP20 protection rating.
The CMMP-AS-C5-11A-P3-M3 delivers the reliability and precision required for high-performance servo motion control in industrial automation systems.
