Description
The Eaton FDPWT3233R is a fusible panelboard switch unit designed for reliable circuit control and protection within FDP series panelboards. Manufactured by Eaton / Cutler-Hammer, the FDPWT3233R features a 100 amp rating with a three-pole configuration and supports up to 240V AC systems. Its twin horizontal configuration and Class R fuse compatibility provide dependable switching and overcurrent protection for commercial and industrial power distribution applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton / Cutler-Hammer |
| Category |
Circuit Protection |
| Part Number |
FDPWT3233R |
| Subcategory |
Fusible Panelboard Switch |
| Series |
FDP Panelboard Series |
| Switch Type |
Fusible Panelboard Switch (Twin Unit) |
| Amperage Rating |
100 A (Per Unit) |
| Voltage Rating (AC) |
240 VAC |
| Voltage Rating (DC) |
250 VDC |
| Number of Poles |
3 |
| Mounting Type |
Horizontal Panelboard Mount |
| Fuse Class Provision |
Class R Cartridge Fuses |
| Interrupt Rating (240VAC) |
200 kAIC |
| Interrupt Rating (250VDC) |
10 kAIC |
| Maximum Horsepower (240VAC) |
30 HP |
| Maximum Horsepower (250VDC) |
20 HP |
| Wire Size Range |
#14 AWG – 1/0 AWG |
| Application |
Branch Circuit Panelboard Switching |
| Frame Type |
FDP |
| Connection Type |
Branch Circuit |
| Frequency Rating |
50/60 Hz |
| Weight |
Approx. 6 lb |
Information About FDPWT3233R

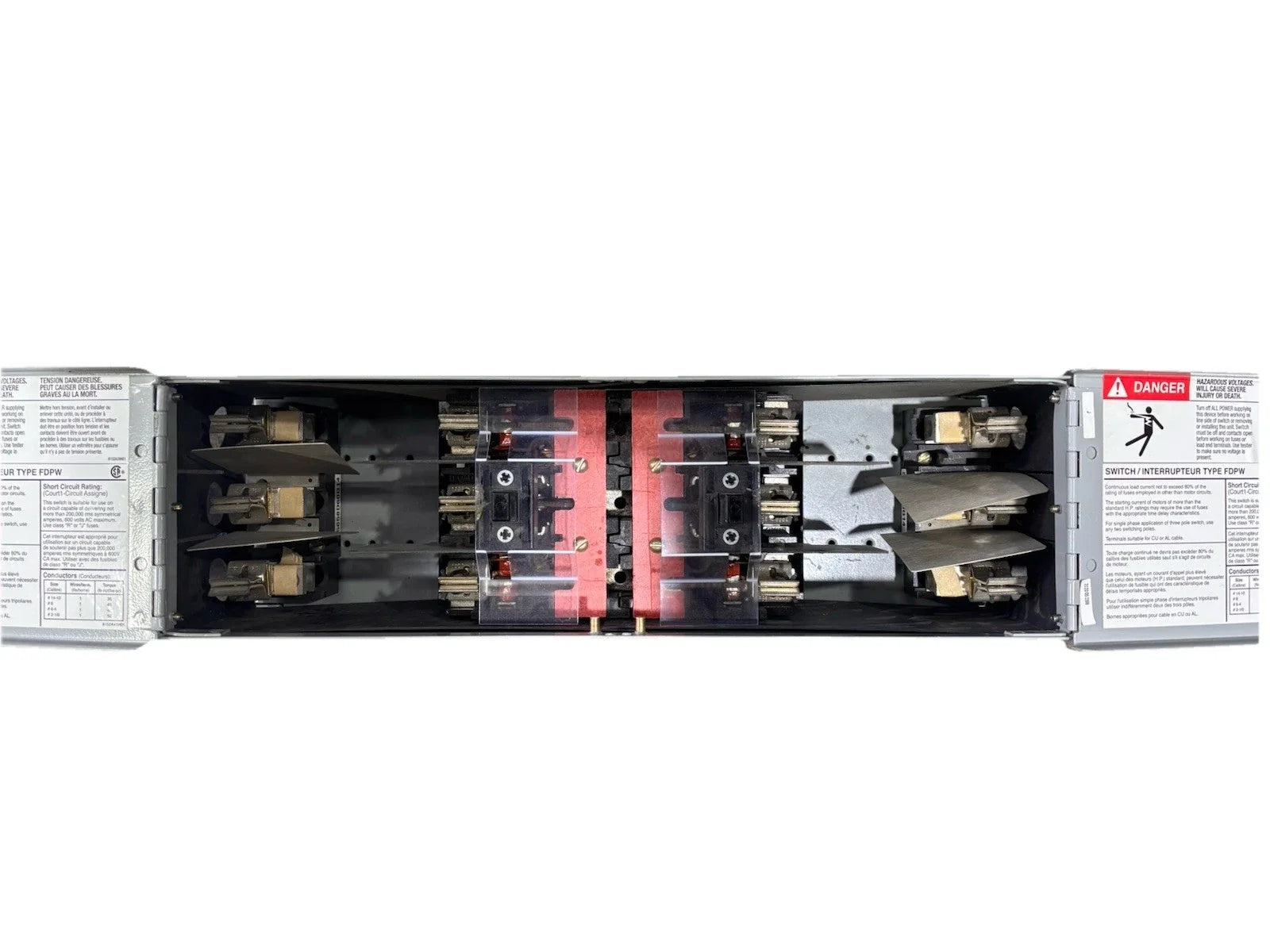

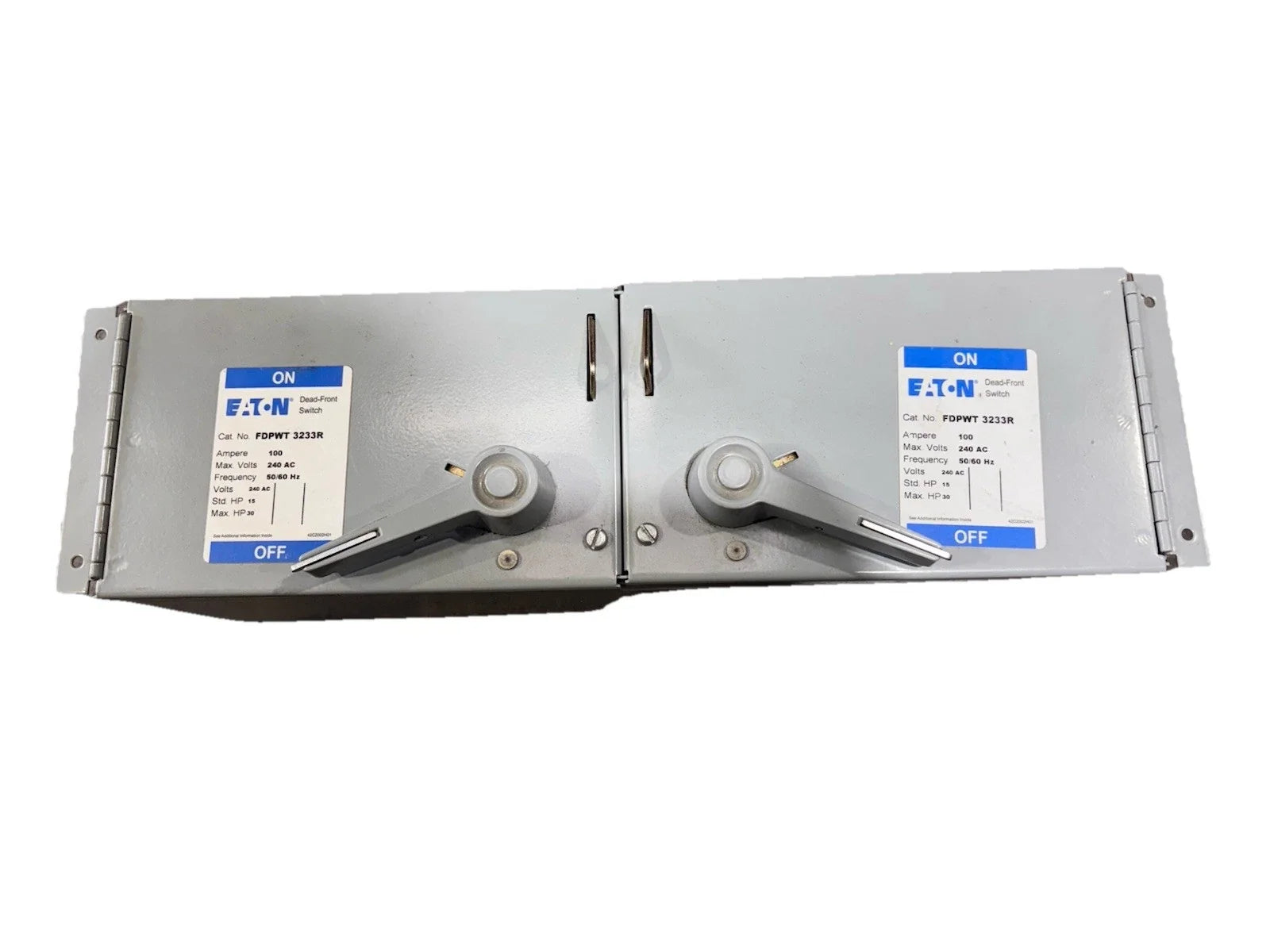

The FDPWT3233R is part of Eaton’s FDP panelboard switch lineup engineered to provide flexible circuit control and protection within panelboard distribution systems. Designed as a twin fusible switch unit, it allows two independent 100A circuits to be controlled within a compact panelboard installation. The switch supports Class R cartridge fuses, enabling effective overcurrent protection while maintaining safe manual circuit disconnect capability. With a high interrupting capacity and compatibility with Eaton FDPW panelboards, it is commonly used in commercial buildings, industrial facilities, and electrical distribution systems.
Key Features:
- 100 Amp Current Rating: Provides reliable switching and circuit protection for branch circuit applications.
- Three-Pole Configuration: Designed for protection and control of three-phase electrical circuits.
- Twin Unit Panelboard Design: Supports two independent switch units within a single panelboard mounting location.
- Class R Fuse Compatibility: Enables high-performance overcurrent protection using cartridge fuses.
- High Interrupting Capacity: Rated up to 200 kAIC at 240VAC for high fault current environments.
- Horizontal Panelboard Mounting: Designed for installation in Eaton FDP series panelboards.
- Fusible Disconnect Function: Allows manual circuit isolation with integrated fuse protection.
- Wide Wire Range Support: Accepts conductors from #14 AWG to 1/0 AWG for flexible installation.
The FDPWT3233R delivers the reliability and precision required for safe circuit switching and protection within panelboard power distribution systems.
