Description

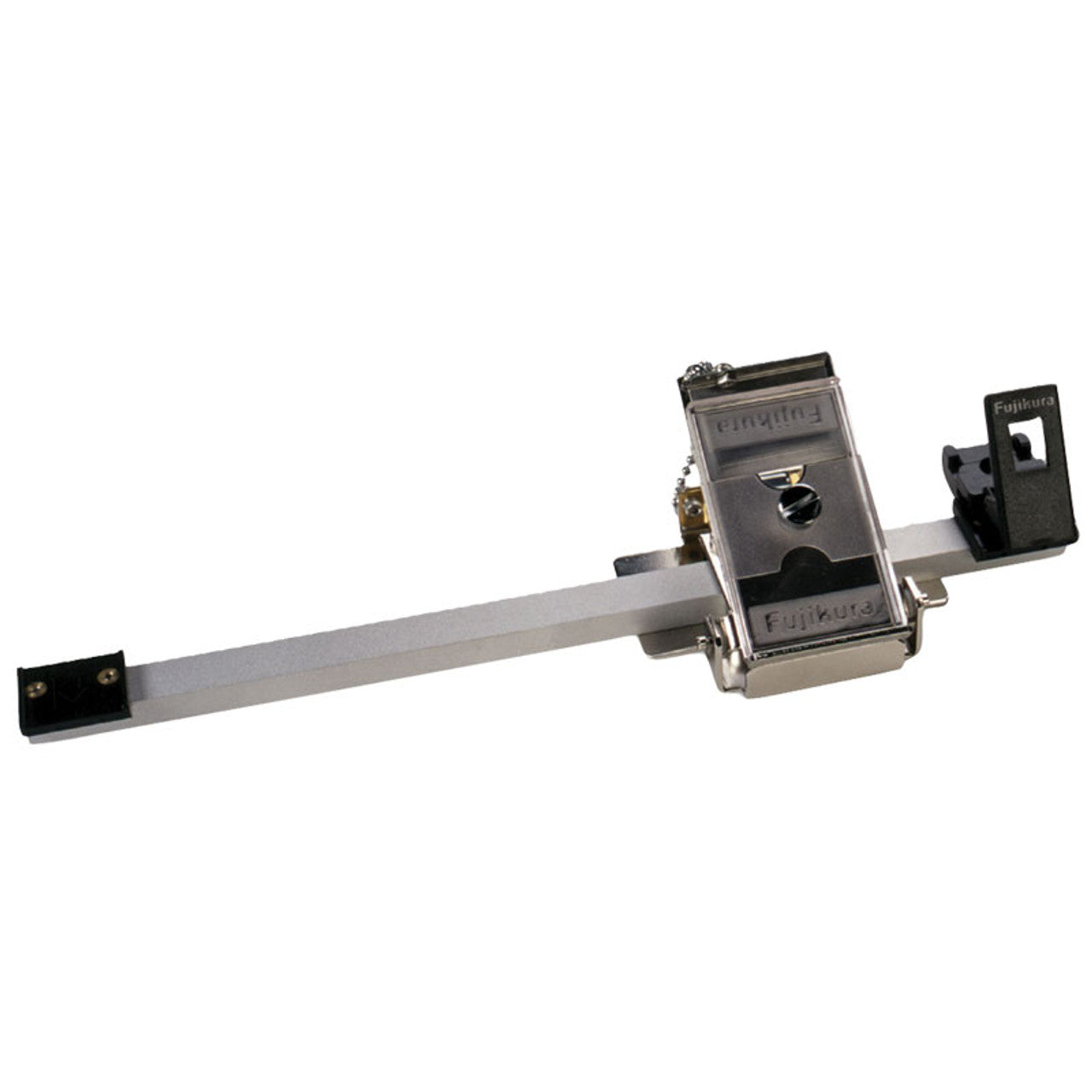

The FAT-04 Fiber Arrangement Tool is a precision device designed to streamline the process of ribbonizing optical fibers. It uses a linear travel method to align fibers consistently, ensuring accuracy and efficiency in fiber ribbon making.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
AFL (Fujikura) |
| Category |
Fiber Optic Tools |
| Part Number |
FAT-04 |
| Subcategory |
Fiber Arrangement / Ribbonizing Tools |
| Method |
Linear travel arrangement |
| Included Paste |
FAA-03A Ribbon Forming Adhesive (130 ml bottle) |
| Applicator Blocks |
PAB-01 (1 pc standard, spare included) |
| Clips |
CLP-02 (2 pcs) |
| Sponge Pads |
SP-1 (125 pcs per pack) |
| Cotton Swabs |
FM-225 (100 pcs per pack) |
| Dimensions |
Compact, portable hand tool |
| Weight |
Approx. 1–1.5 kg |
| Options Available |
Extra adhesive (FAA-03A, set of 5 bottles), fiber holders FH-70-xx |
| Instruction Manual |
Included |
Information About FAT-04
The FAT-04 provides technicians with an easy-to-use tool for arranging single optical fibers into precise ribbon configurations. It includes a spare paste applicator, which allows work to continue even if one applicator requires cleaning. The tool is supplied with adhesive, sponge pads, applicator blocks, and clips, making it a complete package for fiber preparation tasks. Designed for use in fiber optic ribbon making, it is widely adopted in telecom and data center applications where multi-fiber alignment is required.
Key Features:
- Linear Travel Method: Ensures accurate and consistent fiber alignment during ribbonizing.
- Spare Applicator Included: Allows uninterrupted work by swapping paste applicators during cleaning.
- Complete Kit: Comes with applicator blocks, clips, sponge pads, cotton swabs, and adhesive.
- Durable Construction: Designed for repeated use in field and laboratory environments.
- Easy Operation: Simplifies fiber preparation, reducing technician error.
- Compact Design: Lightweight and portable for on-site optical work.
- OEM Quality: Manufactured to meet telecom-grade standards for reliability.
The FAT-04 delivers the precision and usability required for professional fiber ribbon preparation.
