Description
The F3SJ‑A0620P30‑L is a high-performance safety light curtain transmitter from Omron’s F3SJ-A series, designed for industrial machine safeguarding.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
F3SJ-A0620P30-L |
| Subcategory |
Light Curtain |
| Resolution |
30 mm |
| Protected Height |
620 mm |
| Light Source |
870 nm Infrared LED |
Operating Voltage
|
24 VDC |
| Protection Rating |
IP65 |
| Weight |
4.00 lbs |
Information About F3SJ-A0620P30-L

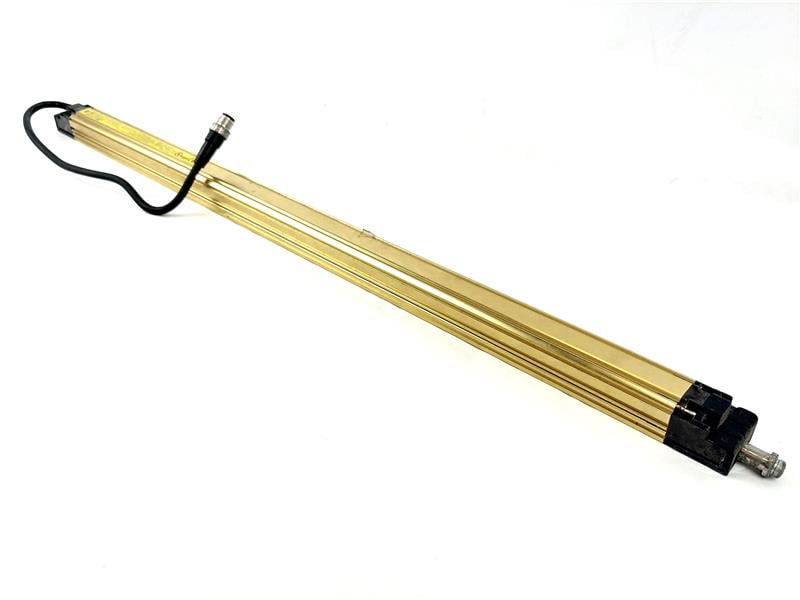

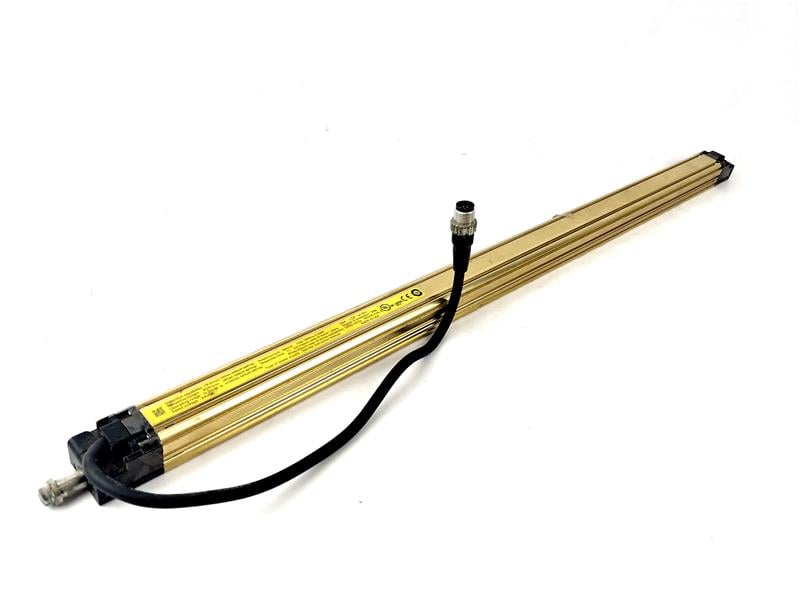

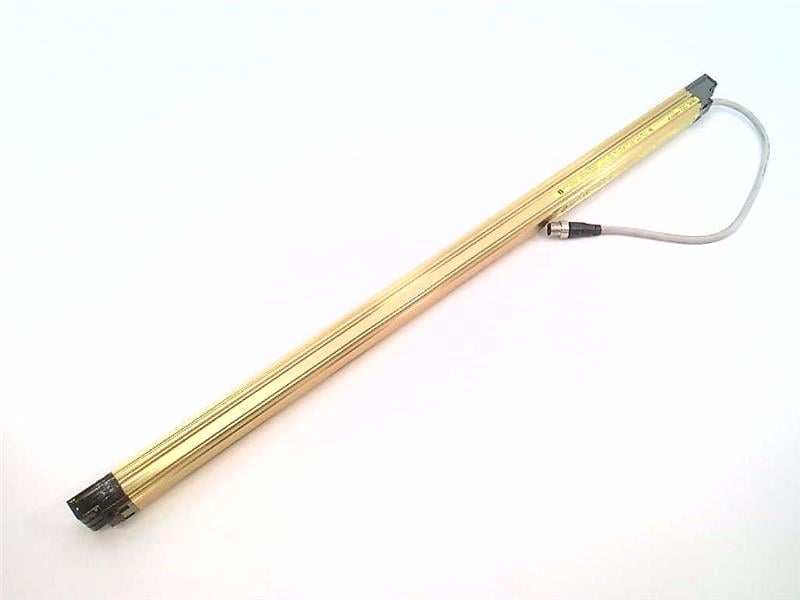

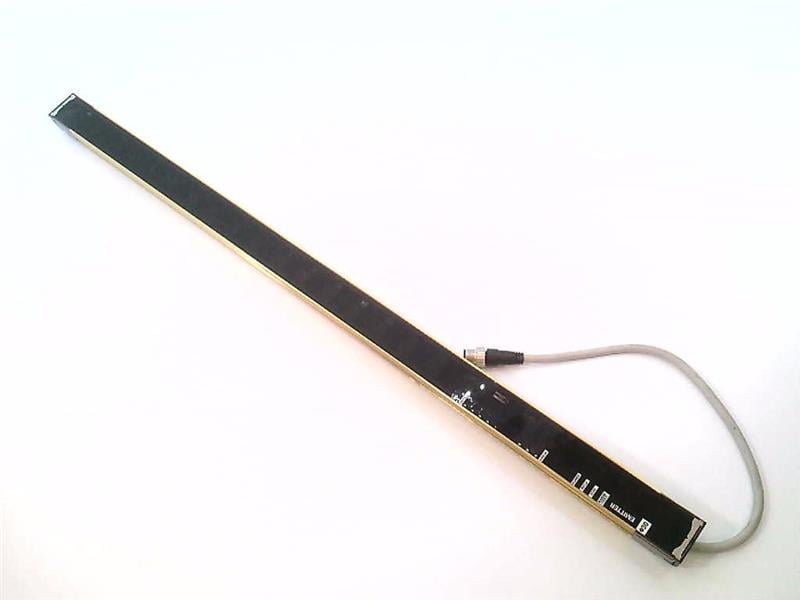

The F3SJ-A0620P30-L is a safety light curtain transmitter designed specifically for Omron’s F3SJ-A series of machine safeguarding systems. Engineered for high-precision protection, it emits a 620 mm high infrared detection field with a resolution of 30 mm, effectively detecting fingers and hands. Built with a rugged IP65-rated housing and using 870 nm infrared LEDs, the F3SJ-A0620P30-L integrates seamlessly into industrial environments, providing advanced safety coverage in compliance with PLe and SIL3 standards.
Key Features:
- Safety Light Curtain Transmitter: Functions as the emitter unit in Omron’s F3SJ-A safety light curtain system.
- 30 mm Resolution: Detects objects as small as 30 mm, offering precise hand and finger protection.
- 620 mm Protected Height: Covers a vertical safety field of 620 mm, ideal for point-of-operation guarding.
- Infrared LED Source: Uses 870 nm infrared LEDs for reliable beam generation and detection.
- 24 VDC Power Supply: Operates on standard 24 VDC industrial power input.
- IP65 Protection: Dust-tight and water-resistant for reliable use in harsh industrial conditions.
- Advanced Safety Functions: Compatible with muting, blanking, and advanced diagnostics when paired with appropriate receivers.
- Safety Compliance: Certified to PLe (ISO 13849-1) and SIL3 (IEC 61508) standards for critical safety applications.
The F3SJ-A0620P30-L enhances operator safety by providing reliable and precise perimeter monitoring. Its robust design and ease of integration make it ideal for industrial machine safeguarding, ensuring protection without compromising productivity.
