Description

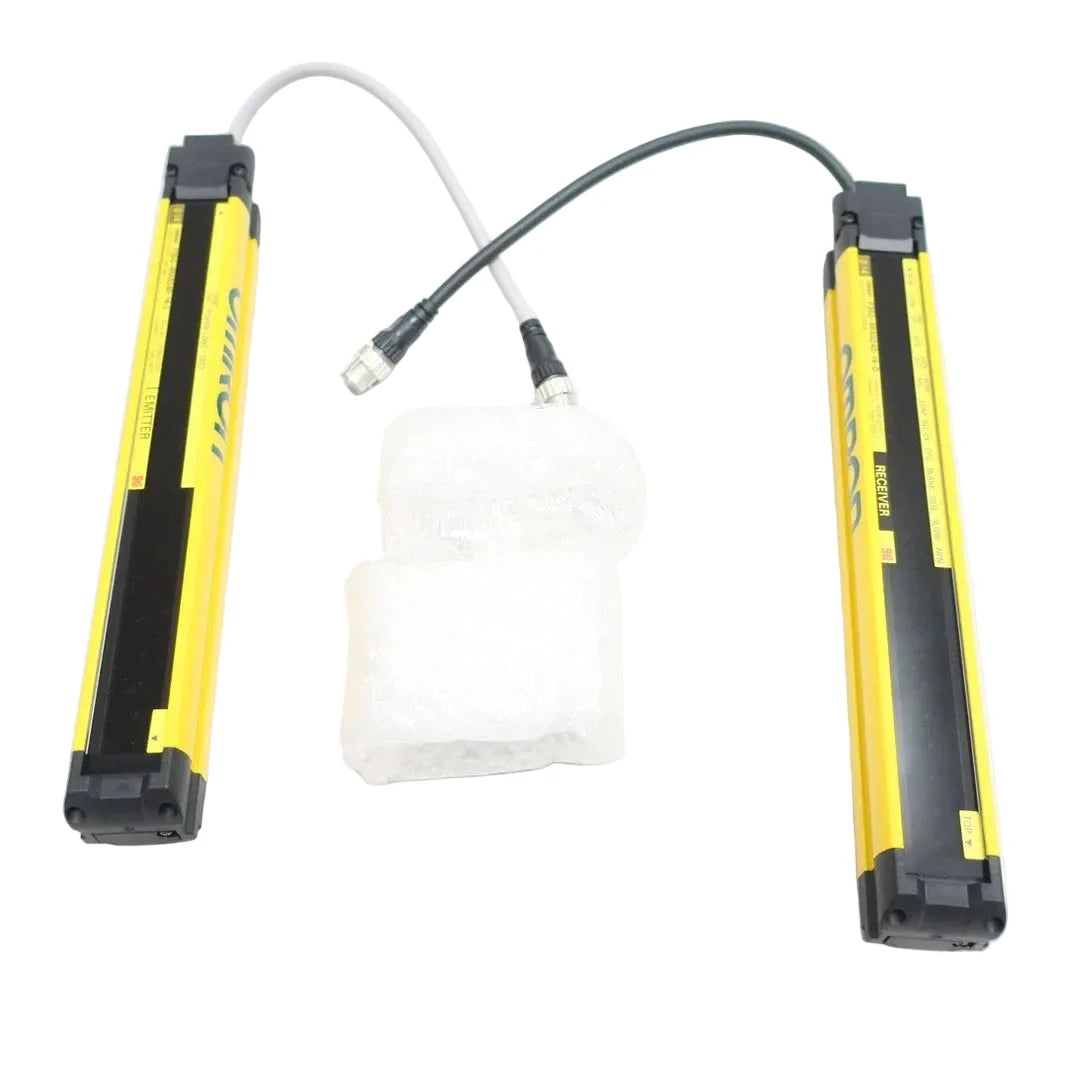

The Omron F3SG-4RA0240-14 is a safety light curtain engineered for finger protection in high-risk industrial machinery. It delivers Category 4 safety performance with fine resolution sensing to ensure rapid and reliable hazard detection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Machine Safety |
| Part Number |
F3SG-4RA0240-14 |
| Subcategory |
Safety Light Curtains |
| Protection Type |
Finger Protection |
| Detection Capability |
14 mm |
| Protective Height |
240 mm |
| Number of Beams |
23 |
| Beam Spacing (Pitch) |
10 mm |
| Operating Range |
0.3 m to 10.0 m |
| Safety Category |
Category 4 |
| Performance Level |
PL e |
| Safety Integrity Level |
SIL 3 |
| Supply Voltage |
24 VDC |
| Ingress Protection |
IP65, IP67 |
| Functions |
Blanking, Muting |
| Operating Temperature |
-10°C to +55°C |
| RoHS Compliance |
Yes |
| Weight |
10.2 lbs |
Information About F3SG-4RA0240-14
The F3SG-4RA0240-14 is part of Omron’s F3SG safety light curtain series, developed to meet stringent international safety standards for industrial automation. This series is designed for applications requiring finger-level protection with high resolution and fast response characteristics. The device achieves Category 4 safety classification with Performance Level e and SIL 3 ratings, supporting use in safety-critical environments. Its rugged construction and high ingress protection ratings ensure dependable operation in harsh industrial conditions.
Key Features
- Finger Protection Resolution: Provides 14 mm detection capability to reliably sense finger intrusion into hazardous zones.
- Category 4 Safety Performance: Designed to meet the highest safety category requirements for machine guarding applications.
- PL e And SIL 3 Compliance: Supports advanced functional safety architectures in accordance with international standards.
- Compact Protective Height: 240 mm sensing height with 23 beams ensures precise coverage in restricted access areas.
- Advanced Safety Functions: Integrated blanking and muting features support flexible system design without compromising safety.
- Extended Sensing Range: Operates reliably over distances up to 10 meters for versatile installation options.
- High Environmental Protection: IP65 and IP67 ratings provide resistance to dust and water in industrial environments.
The F3SG-4RA0240-14 delivers the reliability and precision required for finger protection and advanced machine safety applications.
