Description

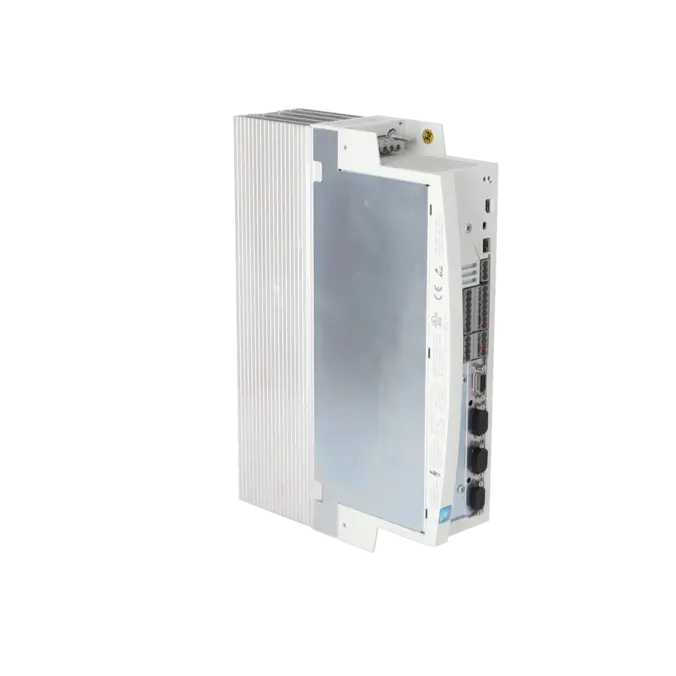

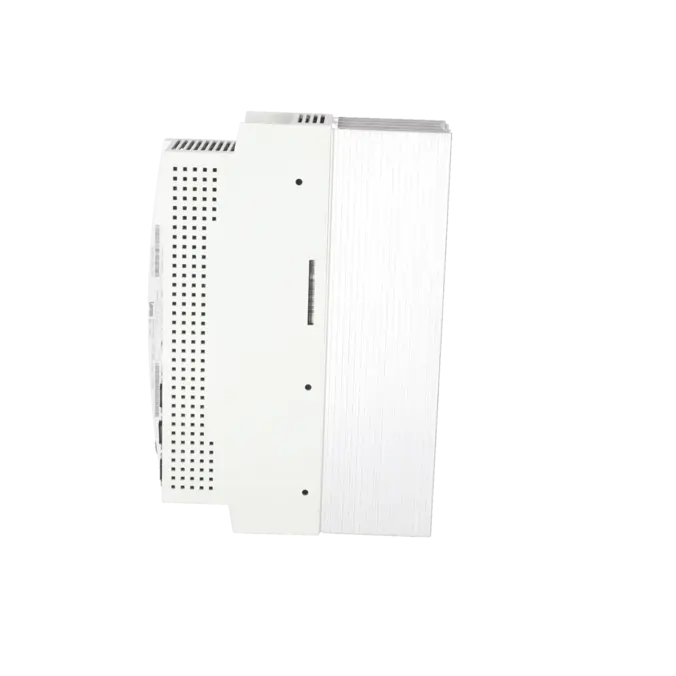

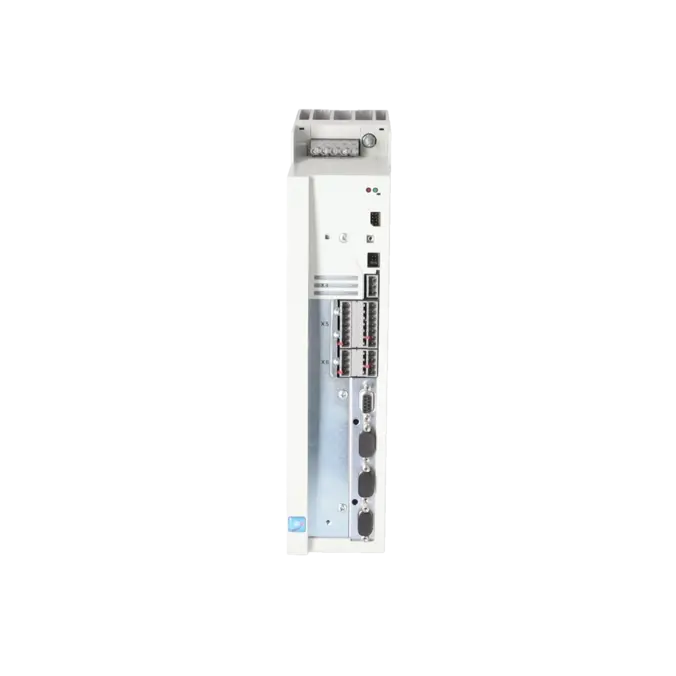

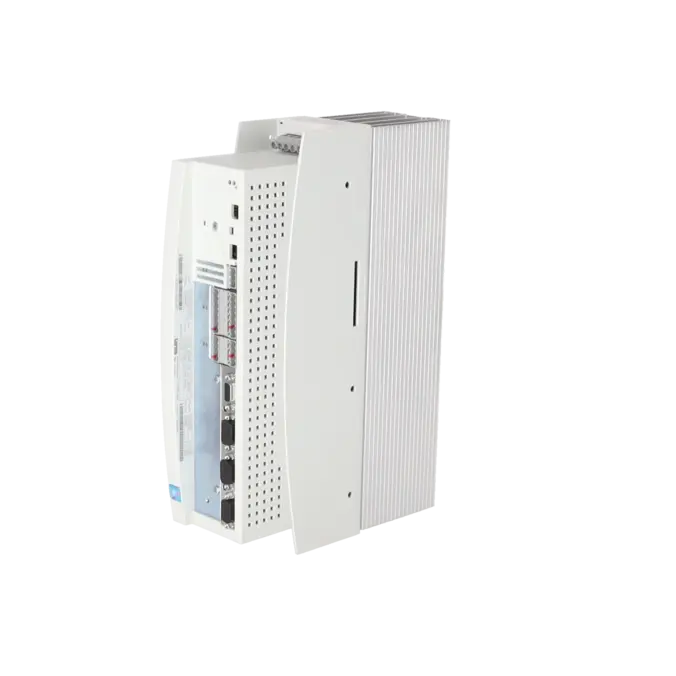

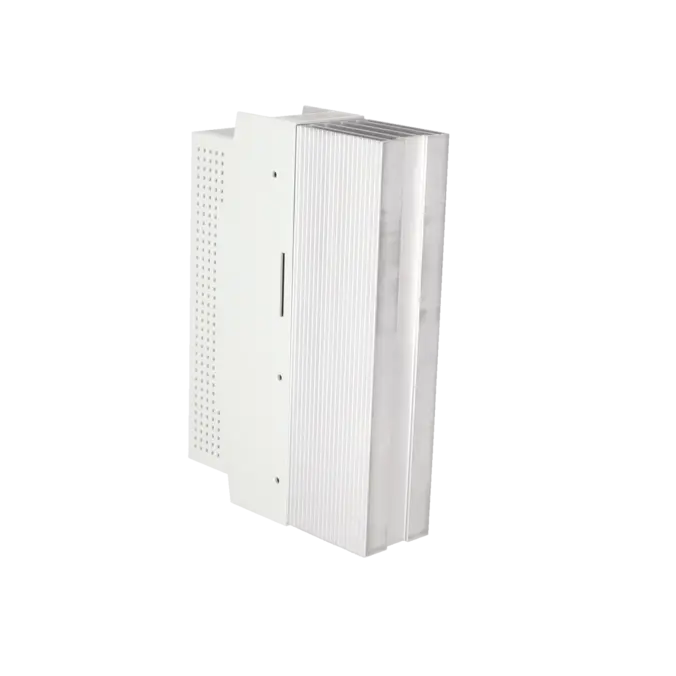

The Lenze EVS9321-EIV907 is a 9300 Series servo controller designed for precise motion control in three-phase 400/480 VAC systems. Rated at 0.37 kW (0.5 HP), it provides adjustable output frequency up to 480 Hz for controlled positioning and speed regulation. The built-in unit is intended for panel-mounted industrial automation applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Servo Products |
| Part Number |
EVS9321-EIV907 |
| Subcategory |
Servo Drive/Servo Control |
| Series |
9300 Series |
| Product Type |
Servo Position Controller |
| Rated Power |
0.37 kW (0.5 HP) |
| Input Voltage |
3-Phase 400/480 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
1.5 A |
| Output Voltage |
0–480 VAC |
| Output Frequency |
0–480 Hz |
| Overload Capacity |
1.5 × In for 60 s |
| Mounting Type |
Panel Mount (Built-In Unit) |
| Variant |
Standard |
| Weight |
9.22 lbs |
Information About EVS9321-EIV907
The EVS9321-EIV907 belongs to the Lenze 9300 servo drive platform engineered for modular motion control systems. It operates on a 3-phase 400/480 VAC supply at 50/60 Hz and delivers regulated output voltage up to 480 VAC with a rated current of 1.5 A. The drive supports position, speed, and torque control modes, enabling flexible integration into automation processes. Designed as a built-in panel unit, it provides expandable communication capability through pluggable interface modules for industrial fieldbus systems.
Key Features:
-
9300 Series Platform: Modular servo drive architecture for industrial automation.
-
0.37 kW (0.5 HP) Rating: Suitable for compact positioning applications.
-
400/480 VAC Input: Three-phase power configuration.
-
0–480 Hz Output Frequency: Adjustable frequency range for motion control.
-
1.5 A Rated Current: Supports controlled low-power motor operation.
-
Position and Speed Control: Designed for precise servo applications.
-
Modular Communication Options: Supports integration with common industrial fieldbus systems.
-
Panel-Mounted Built-In Unit: Intended for control cabinet installation.
-
Overload Capacity: 1.5 × rated current for 60 seconds.
The EVS9321-EIV907 delivers the reliability and precision required for industrial servo drive and motion control applications.
