Description

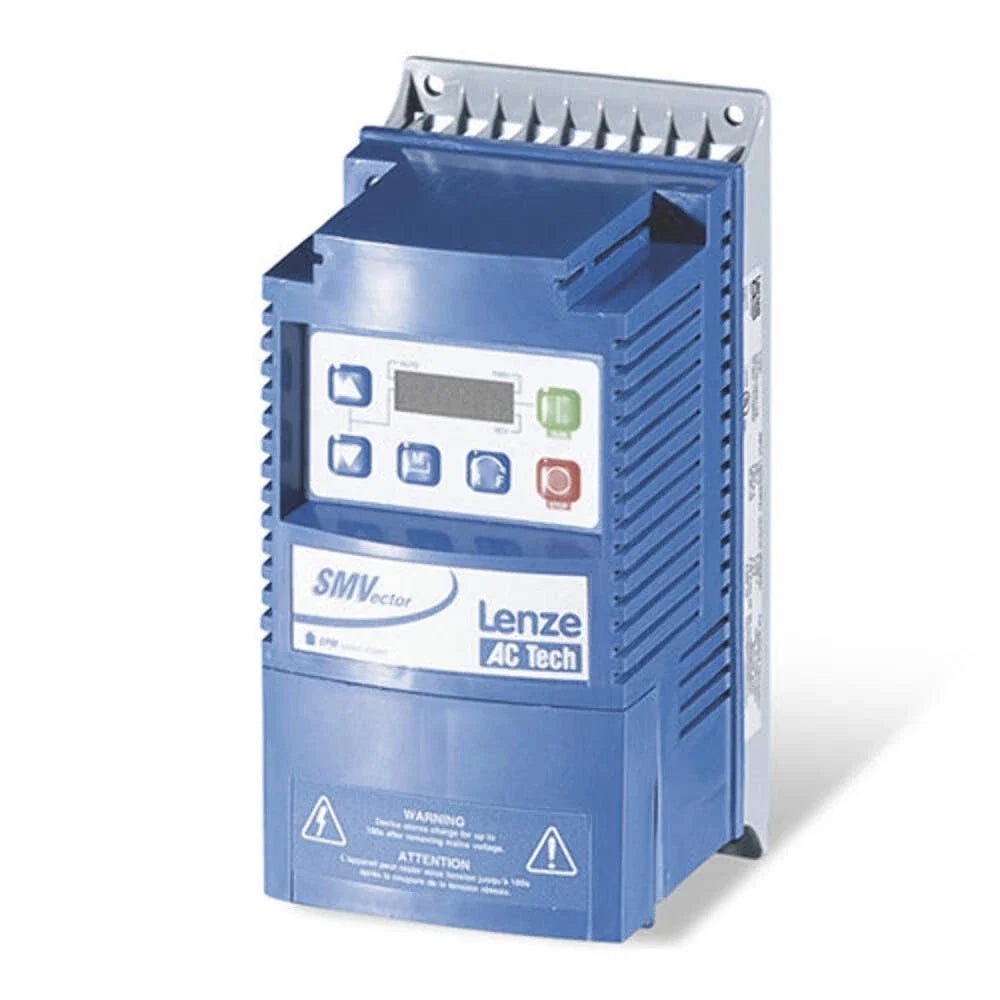

The Lenze ESV303N06TXB is a three-phase SMVector frequency inverter designed for industrial motor speed control. It delivers up to 30.0 kW (40 HP) of power with a 600 VAC input/output range and supports continuous operation at up to 41 A output current. This AC drive is engineered for dependable variable-frequency performance in automated systems requiring robust speed and torque regulation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Motion Control |
| Part Number |
ESV303N06TXB |
| Subcategory |
AC Drives / Frequency Inverters |
| Series |
SMVector (SMV) |
| Power Rating |
30.0 kW (40 HP) |
| Input Voltage |
490–600 VAC, 3-phase |
| Output Voltage |
490–600 VAC, 3-phase |
| Output Current |
41 A |
| Output Frequency Range |
0–500 Hz (typical, SMVector) |
| Control Modes |
Open Loop V/Hz, Flux Vector Control |
| Braking Functions |
Dynamic, DC Injection |
| Operator Interface |
Standard Keypad (Forward/Stop/Reverse) |
| Speed Potentiometer |
None |
| Encoder Input |
None |
| Communication Options |
Optional modules available |
| Enclosure |
NEMA 1 / IP31 |
| Mounting |
Panel / Cabinet |
| Environment |
Indoor |
| Weight |
29.00 lbs (13.15 kg) |
Information About ESV303N06TXB
The ESV303N06TXB is part of Lenze’s SMVector (SMV) series of frequency inverters, built to drive three-phase AC induction motors in industrial environments. It accepts a 490–600 VAC three-phase input and provides a proportional three-phase output at the same voltage range for wide compatibility with medium-voltage motors. The drive includes dynamic and DC injection braking functions for controlled deceleration and safe stop performance. Designed in a NEMA 1/IP31 enclosure, the unit is suited for indoor applications such as conveyors, pumps, and material handling systems where reliable speed regulation is required.
Key Features:
- 30.0 kW (40 HP) Output: Provides substantial motor power for mid-range industrial drives.
- Three-Phase 490–600 VAC Input: Compatible with high-voltage industrial mains.
- Three-Phase Output: Up to 600 VAC at variable frequency for flexible motor control.
- 41 A Output Current: Delivers robust current capacity for demanding loads.
- Dynamic & DC Injection Braking: Provides controlled deceleration and stopping torque.
- Standard Keypad Control: Local operation via keypad with start/stop and direction functions.
- Enclosure NEMA 1 / IP31: Suitable for indoor industrial use with basic environmental protection.
- SMVector Control Technology: Combines vector control and V/Hz modes for optimized performance.
The ESV303N06TXB delivers the performance and flexibility required for variable-speed motor control and industrial automation applications.
