| Product Configurations |
High-performance storage optimized for your most critical applications |
| Storage Controllers |
Dual controllers with 16GB non-volatile memory per controller with up to 512GB non-volatile memory in a group of 16 arrays |
| Network Interfaces |
10GbE Connectivity; management network: 1x 100BASE-TX per controller; interface ports: 2x 10GBASE-T with RJ45 or 2x 10GbE SFP+ for fibre or twin-ax copper cabling |
| Hard Disk Drives |

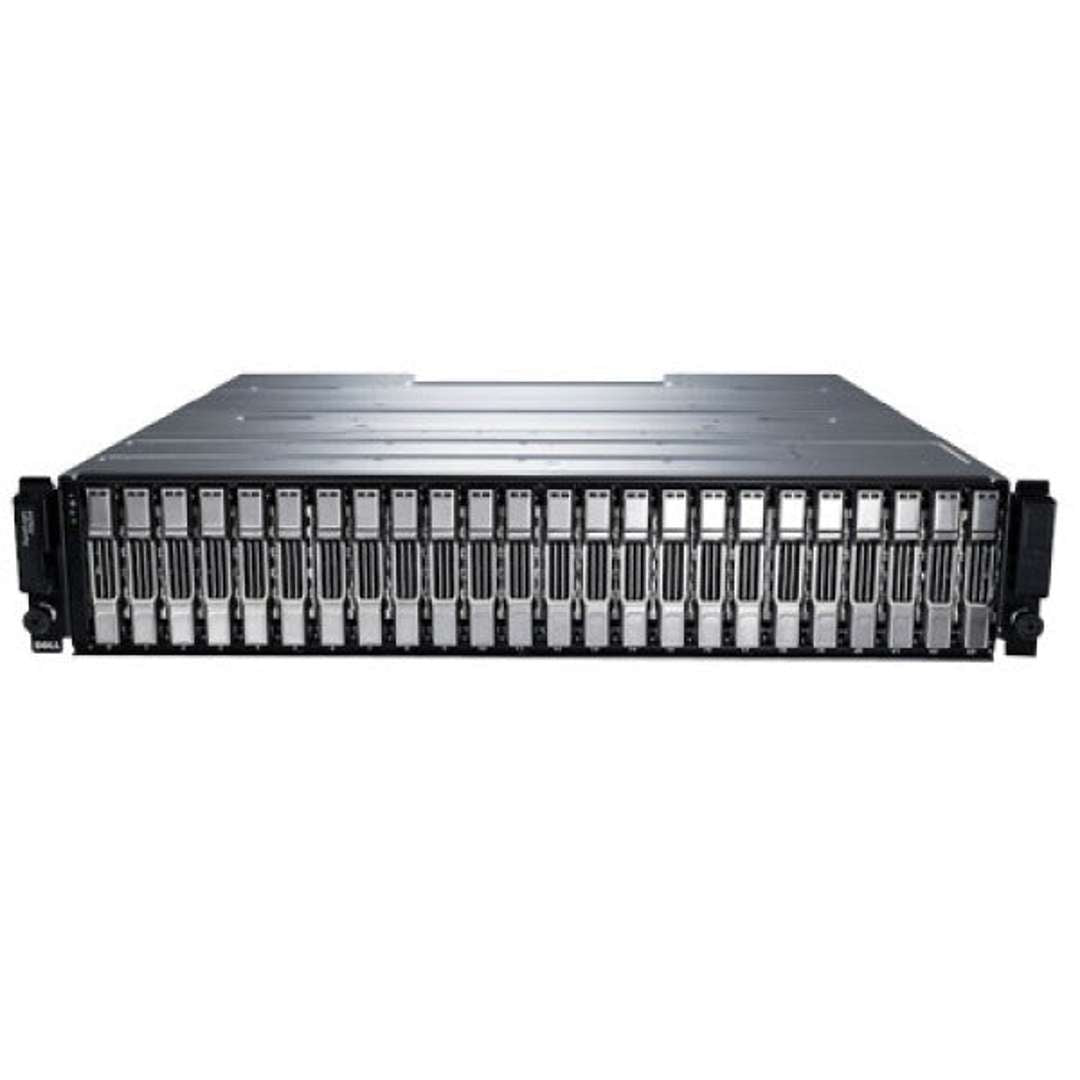

24 x hot-pluggable 2.5" SSD's |
| Drive Capacities |
400GB, 800GB 2.5" SSD |
| System Capacities |
Up to 19.2TB (up to 307.2TB with 16 arrays) |
| Host Protocol |
Any standards-compliant iSCSI initiator |
| OS and Hypervisors Supported |
Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
| RAID Supported |
RAID 6, RAID 10 and RAID 50 |
| TCP Network Support |
IPv4 SAN and management traffic supported, and IPv6 SAN and in-band management supported |
| Expansion Option |
Can be combined with other EqualLogic PS Series arrays in the same SAN group online; maximum of 16 total arrays per group that can support a maximum of 384 drives. Supports up to 10 cross-generation types of controllers with multiple network configurations and drives types in a new or existing EqualLogic SAN resource pool, all managed by a single interface |
| Reliability |
Redundant hot-swappable controllers; hot-swappable disks and power supplies |
| Enclosure Monitoring System |
Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces |
Group Manager (GUI and CLI), SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support, Virtual Storage Manager vCenter plugin |
| Security |
CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support |
| Notification Methods |
SAN Headquarters alerting including Dell SupportAssist, SNMP traps, e-mail, syslog |
| Physical |
Height: 2/U (3.42") - Width: 17.57" - Depth: 21.50" - Max Weight: 58.3lbs |
| Power |
Dual 700W, optional dual 700W DC-DC |
| Rack Support |
ReadyRails II static rails for tool-less mounting in 4-post racks with square or un-threaded round holes or tooled mounting in 4-post threaded-hole racks |
