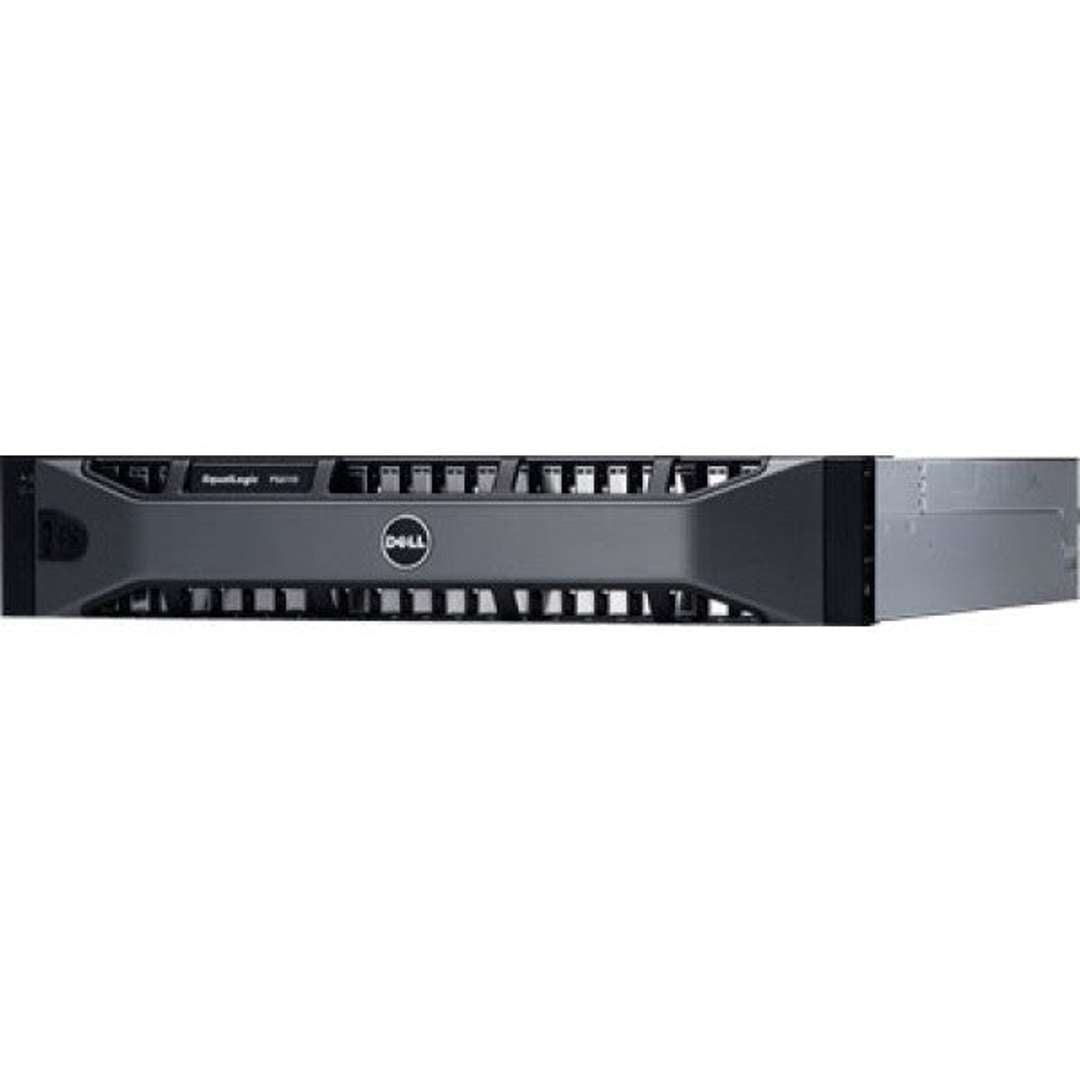

EqualLogic PS6100S 2U Storage Array (24 x 2.5" SSD'S)

Quick Specs

The Dell EqualLogic PS6100 Series storage arrays offer enterprise power with everyday simplicity. The PS6100 Series offers exceptional performance with 1GbE networking to leverage existing infrastructure. The PS6100 Series doesn’t force you to make a choice between scaling storage performance or expanding capacity. PS Series arrays make it possible to purchase only the storage you need when you need it.

Easy to use management features speed SAN configuration while built-in intelligence senses network connections, automatically builds RAID sets and conducts system health checks. Works well with older generation PS series storage arrays to automatically manage data, load balance across all resources or seamlessly expand the storage pool when you add a new array. PS6100 Series arrays also reduce single points of failure with fully redundant and hot-swappable controllers, fan trays, power supplies, disk drives with hot spares and vertical port sharing.

The PS6100S Storage Array offers affordable capacity for highly consolidated environments with up to 19.2TB of Solid State Disk (SSD) storage in a 2U/24 2.5 drive solution.

PS6100S ISCSI SAN TECHNICAL FEATURES

PS6100 SERIES FEATURES	PS6100S ISCSI SAN TECHNICAL FEATURES
Product Configurations	High performance for your demanding enterprise applications
Storage Controllers	Dual controllers with 4GB non-volatile memory per controller
Network Interfaces	4x 1000BASE-T ports per controller. Management Network: 1x 100BASE-TX dedicated management port per controller
Hard Disk Drives	24x Hot-Pluggable 2.5" SSDs
Drive Capacities	100GB, 200GB, 400GB, 800GB 2.5" SSDs
System Capacities	Up to 19.2TB
Host Protocol	Any standards-compliant iSCSI initiator
OS and Hypervisors Supported	Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare
RAID Supported	RAID 5, RAID 6, RAID 10, RAID 50
TCP Network Support	IPv4 SAN and management traffic supported, and IPv6 SAN and in-band management supported
Expansion Option	Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. A maximum of 16 total members per group
Reliability	Redundant hot-swappable controllers with vertical port sharing; hot-swappable disks and power supplies
Enclosure Monitoring System	Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces	SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support
Security	CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support
Notification Methods	SNMP traps, e-mail, syslog
Physical	Height: 2/U (3.41") - Width: 17.57" - Depth: 21.3" - Max Weight: 53.1lbs
Power	Dual 700W
Rack Support	ReadyRails II static rails for tool-less mounting in 4-post racks with square or un-threaded round holes or tooled mounting in 4-post threaded-hole racks
