Description

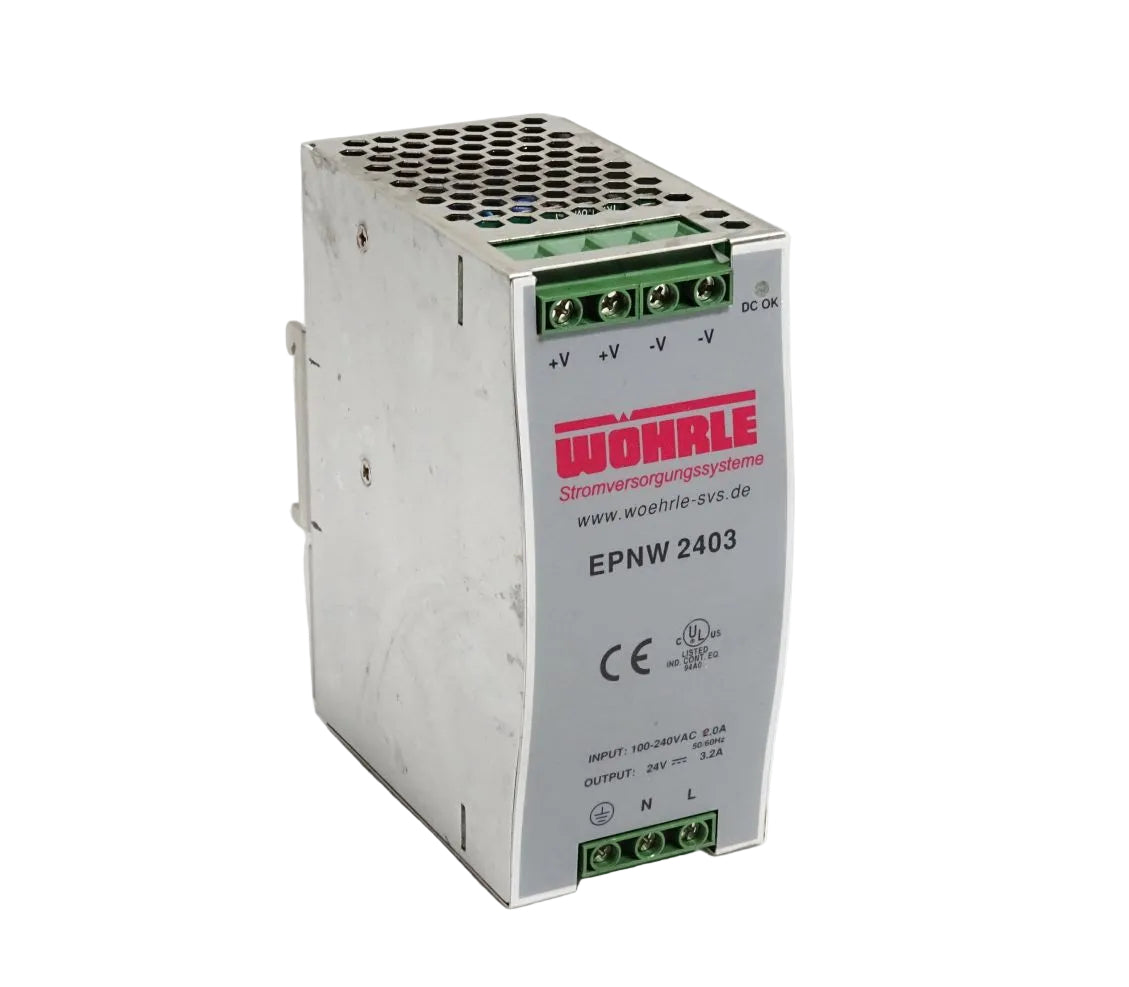

The WOHRLE EPNW2403 is a DIN-rail mounted industrial power supply designed to provide stable and reliable 24 V DC power for automation and control systems. The WOHRLE EPNW2403 delivers up to 3.2 A output current with a wide-range AC/DC input, ensuring dependable operation in industrial control panels. It is engineered for efficiency, protection, and continuous-duty applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
WOHRLE |
| Category |
Power Supplies |
| Part Number |
EPNW2403 |
| Subcategory |
DIN Rail Power Supplies |
| Output Voltage |
24 V DC (adjustable 24–28 V) |
| Rated Output Current |
3.2 A |
| Output Current Range |
0–3.2 A |
| Rated Power |
76.8 W |
| Input Voltage Range |
85–264 VAC / 120–370 VDC |
| Input Frequency |
47–63 Hz |
| Efficiency (Typical) |
80% |
| Hold-Up Time |
60 ms at 230 VAC |
| Ripple & Noise |
Max. 150 mVp-p |
| Operating Temperature |
-10 to +60 °C |
| Mounting Type |
DIN Rail |
| Weight |
Approx. 0.6 kg |
Information About EPNW2403
The EPNW2403 is part of the WOHRLE EPNW series of compact industrial power supplies intended for DIN-rail installation. It features a lightweight and compact design with an extended input voltage range suitable for global power systems. The unit is commonly used to supply PLCs, I/O modules, sensors, actuators, and other 24 V DC control devices in automation environments. Integrated technologies such as inrush current limitation and comprehensive protection circuits enhance system reliability and operational safety.
Key Features:
- Wide Input Voltage Range: Supports 85–264 VAC and 120–370 VDC for flexible power sourcing.
- Regulated 24 V DC Output: Provides stable output voltage with adjustable range up to 28 V DC.
- Compact DIN-Rail Design: Optimized for space-saving installation in control cabinets.
- High Operational Efficiency: Typical efficiency of up to 80% reduces thermal losses.
- Integrated Inrush Current Limitation: Minimizes stress on upstream electrical components.
- Comprehensive Protection Functions: Includes short-circuit, overload, overvoltage, and overtemperature protection.
- Industrial-Grade Reliability: Designed for continuous operation with full burn-in testing.
The EPNW2403 delivers the reliability and precision required for industrial control power distribution and automation systems.
