Description

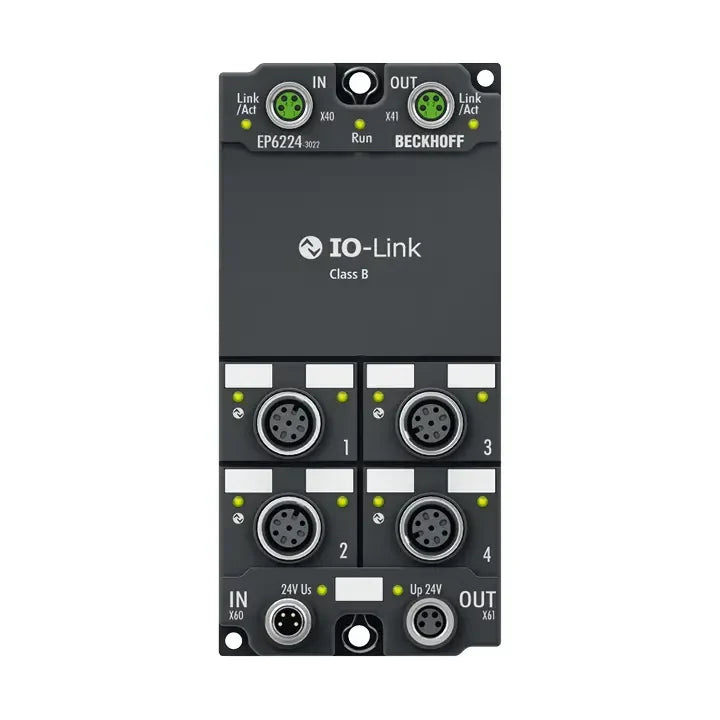

The Beckhoff EP6224-3022 is a 4-channel EtherCAT Box IO-Link master module, Class B, designed for connecting IO-Link sensors and actuators in industrial field applications. Supporting IO-Link V1.1 with multiple baud rates, it ensures efficient and reliable communication with decentralized devices via M12 connections.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
I/O Modules |
| Part Number |
EP6224-3022 |
| Subcategory |
IO-Link Masters |
| Protocol |
EtherCAT |
| Bus Interface |
2 x M8 socket, 4-pin, a-coded, shielded |
| IO-Link Interfaces |
4 (Class B) |
| Specification Version |
IO-Link V1.1 |
| Data Transfer Rates |
4.8 kbaud, 38.4 kbaud, 230.4 kbaud |
| Connection Method |
M12 socket, 5-pin, a-coded |
| Nominal Voltage |
24 V DC (-15%/+20%) |
| Current Consumption |
typ. 130 mA + load from US |
| Distributed Clocks |
Yes |
| Electrical Isolation |
500 V |
| Power Supply Connection |
Feed: 1 x M8 male socket, 4-pin, a-coded; downstream: 1 x M8 female socket, 4-pin, a-coded |
| Operating Temperature |
-25…+60 °C |
| Storage Temperature |
-40…+85 °C |
| Dimensions (W x H x D) |
60 x 126 x 26.5 mm |
| Material |
PA6 (polyamide) |
| Installation |
2 fixing holes (3.5 mm for M3, 4.5 mm for M4) |
| Weight |
approx. 250 g |
Information About EP6224-3022
The EP6224-3022 is part of Beckhoff’s EtherCAT Box I/O series, designed for decentralized installation in industrial automation systems. As an IO-Link master, it offers four Class B interfaces compliant with IO-Link V1.1, enabling direct connection of IO-Link sensors and actuators. Supporting baud rates of 4.8 kbaud, 38.4 kbaud, and 230.4 kbaud, the module ensures fast and flexible communication in field applications. With rugged M12 connectors, 500 V electrical isolation, and wide environmental tolerance, the EP6224-3022 delivers reliable operation even in demanding industrial conditions.
Key Features:
-
Four IO-Link Channels: Provides four Class B master interfaces for connecting sensors and actuators directly.
-
Standards-Compliant: Supports IO-Link V1.1 for universal device compatibility and reliable communication.
-
Flexible Data Rates: Operates at 4.8 kbaud, 38.4 kbaud, or 230.4 kbaud to adapt to application requirements.
-
EtherCAT Integration: Communicates seamlessly with EtherCAT networks via shielded M8 connectors.
-
Rugged M12 Connections: Ensures secure field wiring for both signal and power in industrial environments.
-
Distributed Clock Support: Enhances synchronization accuracy across devices in real-time systems.
-
Electrical Isolation: 500 V isolation between communication and supply for reliable and safe operation.
-
Compact Field Housing: Slim PA6 polyamide housing with robust mounting options (M3 or M4 screws).
-
Wide Temperature Range: Operates between -25 °C and +60 °C, with storage capability down to -40 °C.
-
Decentralized Installation: Optimized for use outside control cabinets, reducing wiring complexity.
The EP6224-3022 delivers the reliability and precision required for connecting IO-Link devices to EtherCAT networks in advanced industrial automation.
