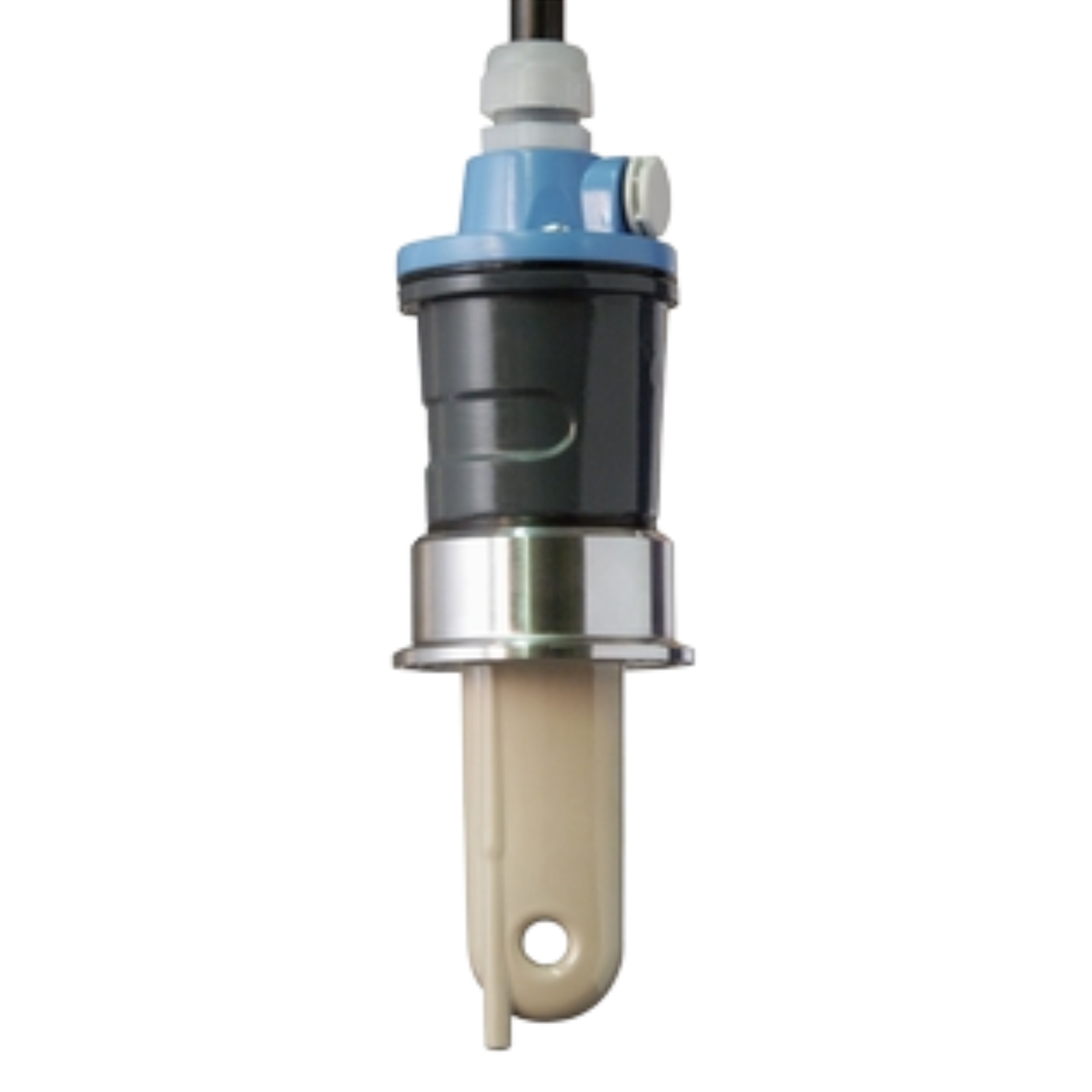

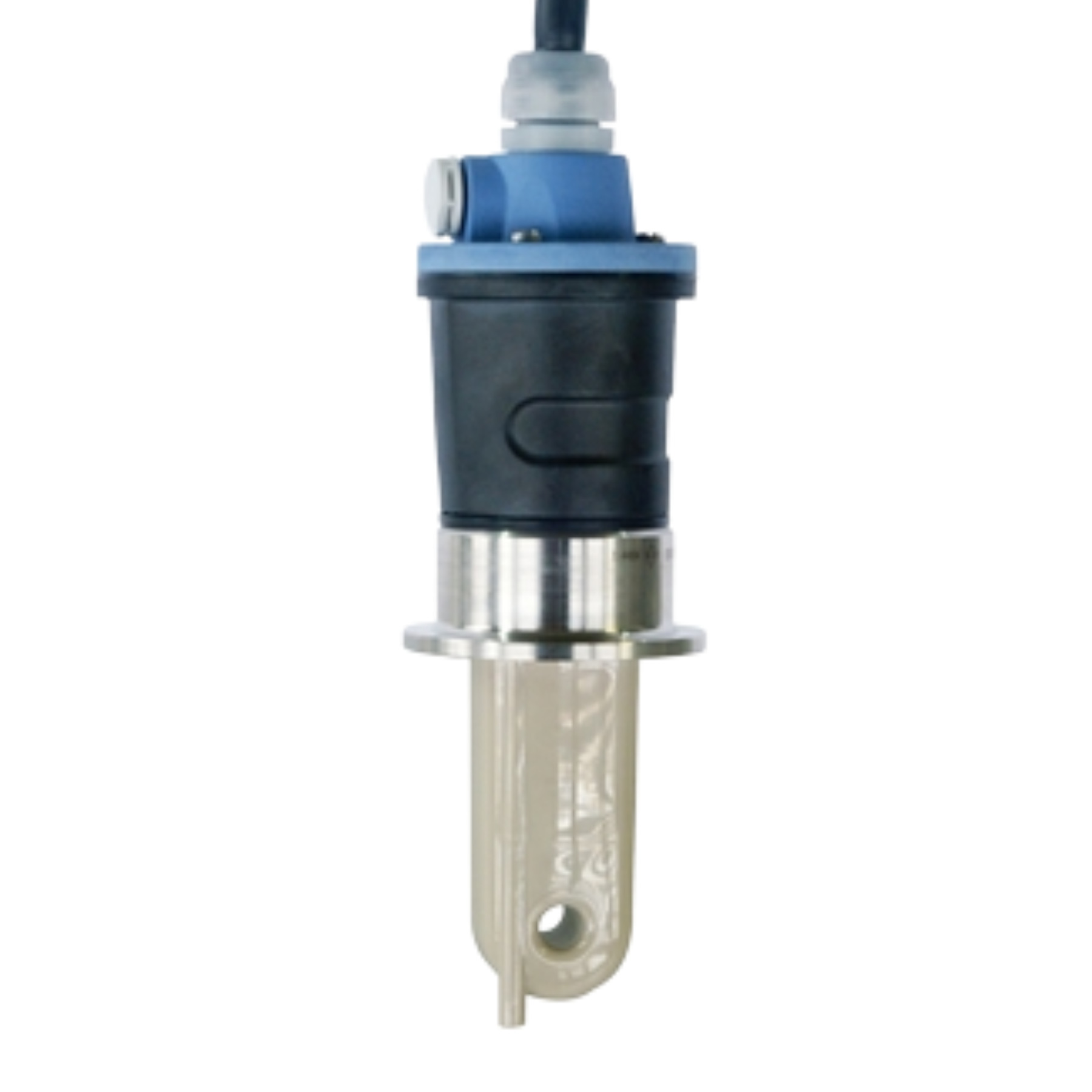

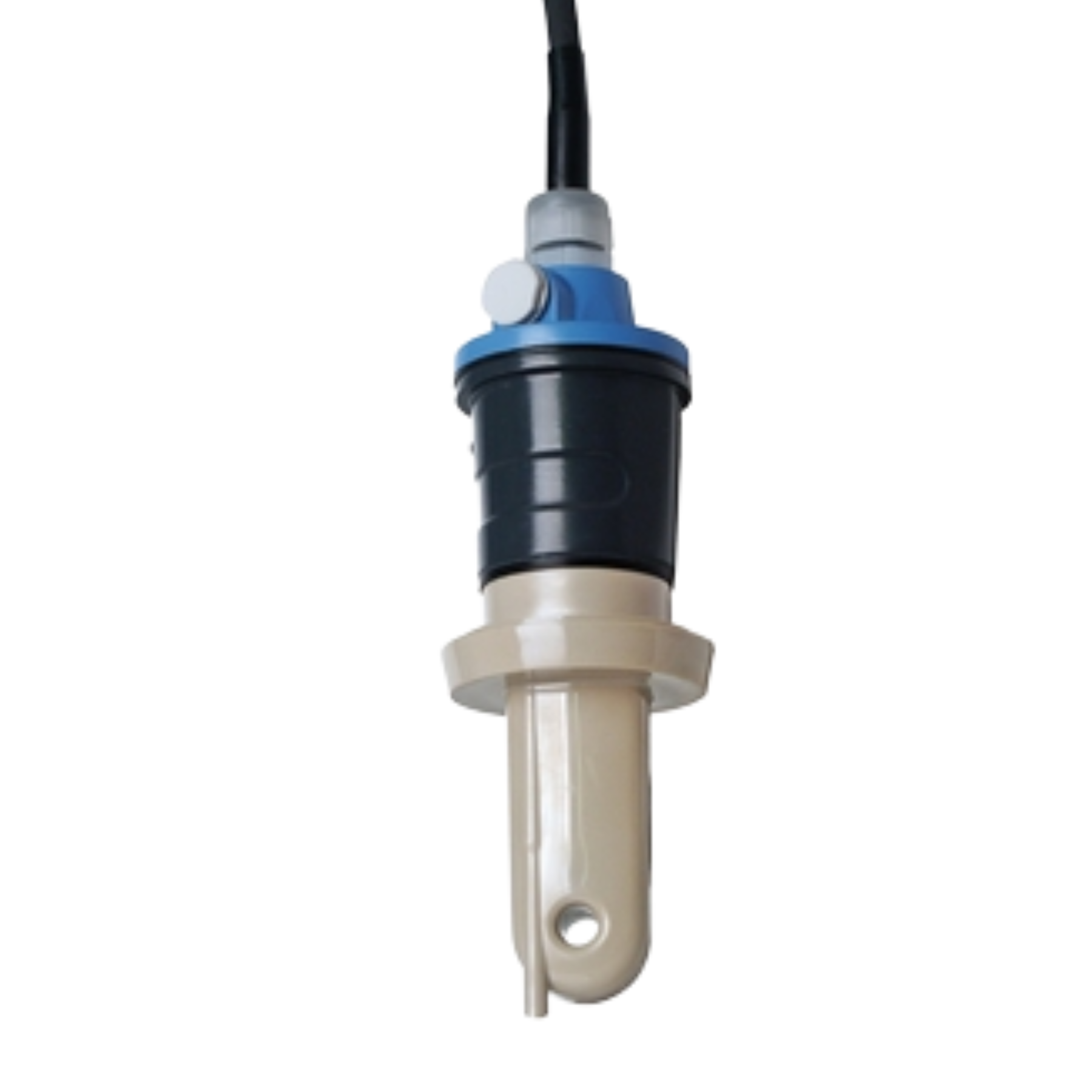

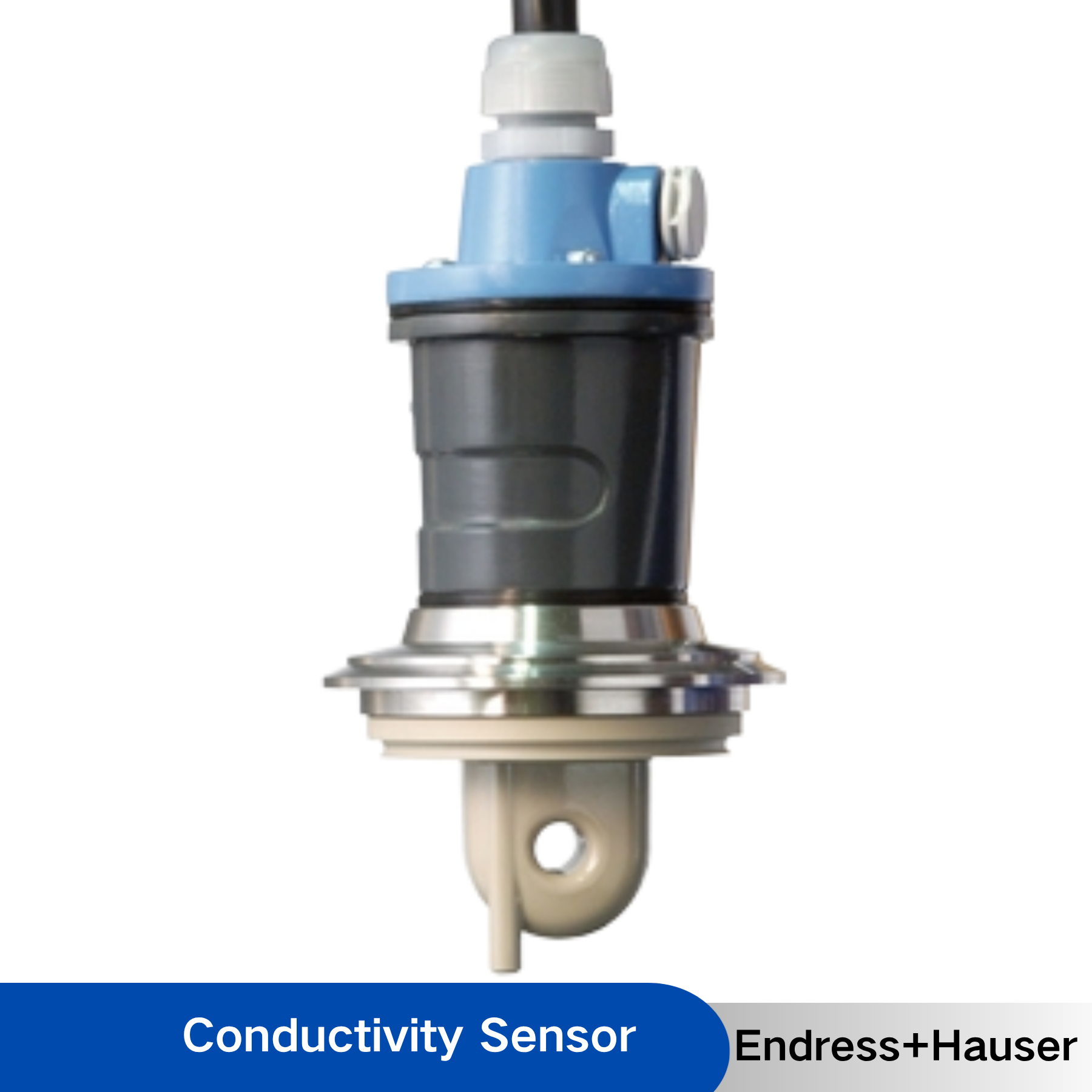

Genuine Endress+Hauser CLS54 Indumax inductive conductivity sensor for hygienic food, beverage, and pharmaceutical applications, including CIP process control, phase separation, and leakage monitoring. Food-grade virgin PEEK body certified by EHEDG and 3-A for sterile process integrity.

Specifications

• Measuring Principle: Inductive
• Measuring Range: 100 µS/cm - 2000 mS/cm, Cell constant k: 6.3 1/cm
• Material: Virgin PEEK (wetted), Surface roughness Ra<0.9µm
• Process Temperature: -10°C to +125°C (sterilization 150°C/5 bar up to 60 min)
• Process Pressure: 12 bar at 20°C, 8 bar at 125°C
• Temperature Sensor: Pt1000 (class A)
• Ex Certification: ATEX II G EEx ia IIc T3/T4/T6; FM/CSA IS NI
• Connection: Dairy pipe, Aseptic-fitting, Clamp ISO 2852, SMS-2in, Varivent N DN 40-125, Neumo Biocontrol D50
• Ingress Protection: IP68/NEMA6P
• Certifications: ISO4287/Ra, USP Class VI, FDA CFR 21, EU 1935/2004, GB 4806, EHEDG EL Class I, 3-A

Ordering & Availability

Bulk and DDP pricing available for resellers, integrators, and maintenance teams. Request a quote (RFQ) for volume orders.
