Description

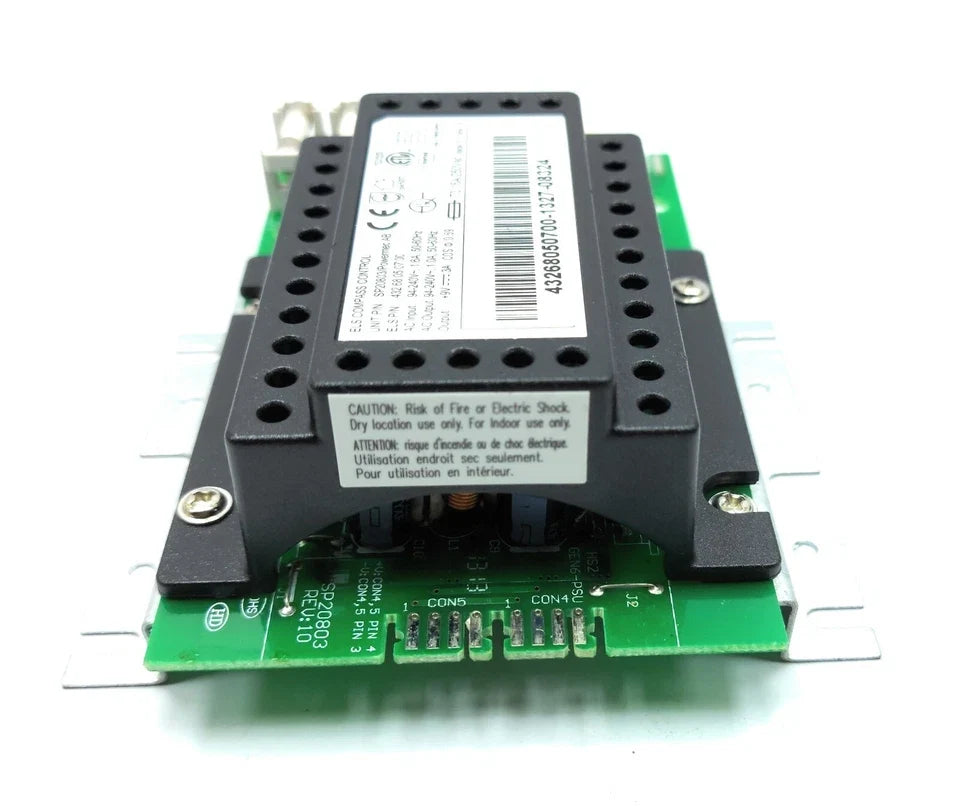

The SP20803 is a compact industrial power supply unit designed for Compass Control applications. It delivers a stable 9V DC output at 3A and is intended for use in automation or monitoring systems requiring Class 2 power.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
ELS Compass Control |
| Category |
|
| Part Number |
SP20803 |
| Subcategory |
Power Supply Unit |
| Input Voltage |
94–240V AC |
| Input Frequency |
50–60Hz |
| Input Current |
1.6A |
| AC Output Voltage |
94–240V AC
|
| AC Output Current |
1.0A |
| DC Output |
+9V DC, 3A |
| Power Factor (cos φ) |
0.59 |
| Fuse Rating |
T3.15A / 250VAC |
| Temperature Range |
Max 50 °C |
| Classification |
Class 2 Power Supply |
| Weight |
220 g |
Information About SP20803

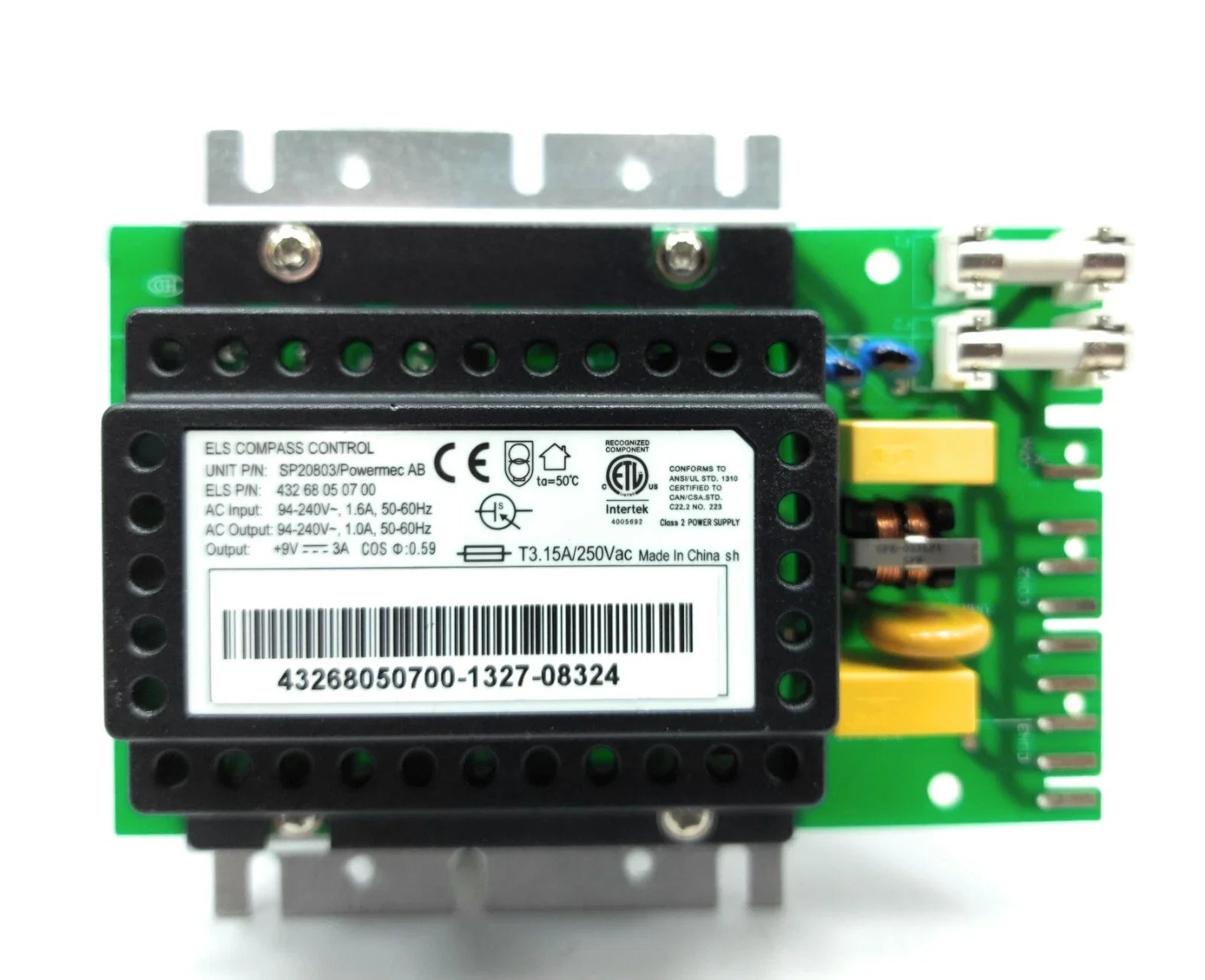

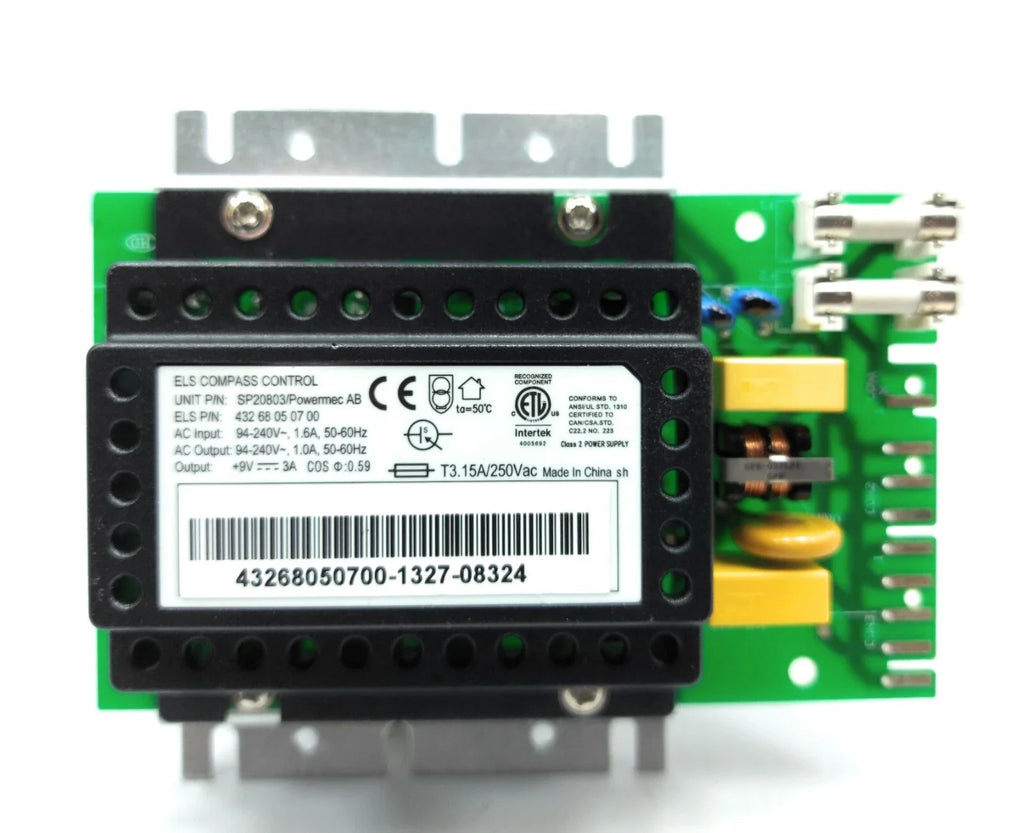

The SP20803 is a control and power supply unit developed by Els in partnership with Powermec AB. It operates on a wide input voltage range of 94–240V AC and outputs a regulated +9V DC at 3A. Designed for industrial environments, it supports Class 2 compliance and carries Intertek certification. The unit features thermal endurance up to 50 °C and is enclosed in a durable housing suitable for control cabinet integration.
Key Features:
- Wide Input Range: Accepts 94–240V AC, 50–60Hz for flexible integration.
- Regulated Output: Provides +9V DC at 3A for consistent device performance.

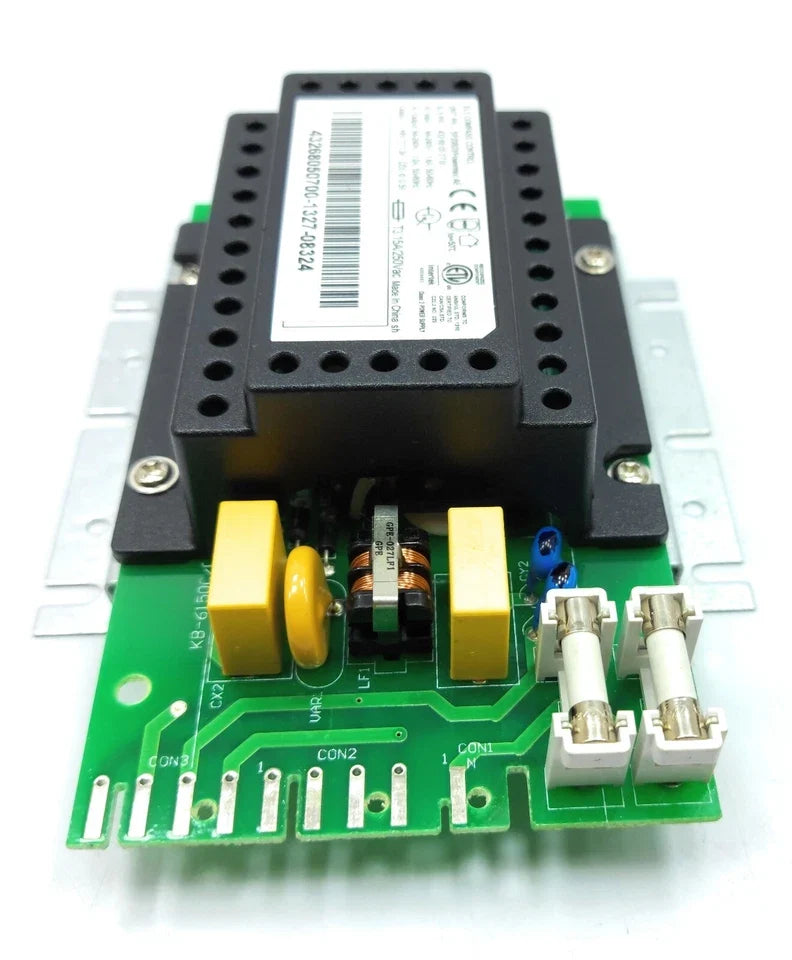

- Protection Rating: Fitted with T3.15A/250VAC fuse for overload protection.
- Thermal Endurance: Operates reliably in environments up to 50 °C.
- Power Factor: Operates at a power factor of 0.59 for efficient current usage.
- Certification: Intertek approved for safety and quality compliance.
- Form Factor: Compact, lightweight build suitable for panel mounting.
- Class 2 Power Supply: Meets requirements for limited power sources.
The SP20803 delivers the reliability and voltage stability required for industrial control operations.
