Description

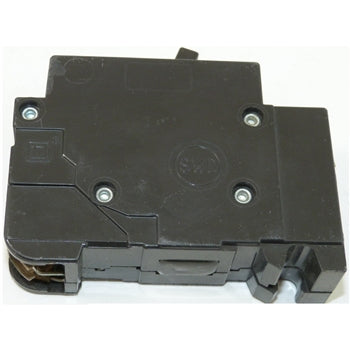

The Square D EH14015 is a 1-pole molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical systems. Rated at 15 amps, this breaker is engineered for plug-on installation and reliable performance in branch circuit applications requiring precise current interruption.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Electrical Protection |
| Part Number |
EH14015 |
| Subcategory |
Circuit Breakers |
| Series |
EH |
| Type |
Molded Case Circuit Breaker |
| Amperage Rating |
15 A |
| Number of Poles |
1 |
| Voltage Rating |
277 VAC |
| Max System Voltage |
480 VAC |
| Phase |
Single Phase |
| Mounting Type |
Plug-On |
| Trip Mechanism |
Thermal-Magnetic |
| Manufacturer Part Number |
EH14015 |
| Weight |
2 lb |
Information About EH14015
The EH14015 is part of Square D’s EH series, known for its robust construction and consistent electrical protection in panelboard environments. This breaker features a compact molded case design intended for seamless compatibility with Square D load centers and distribution panels. It is built to support single-phase electrical systems and utilizes proven thermal-magnetic technology for accurate overload and short-circuit protection. Commonly used in commercial and light industrial installations, it supports stable system operation where space efficiency and reliability are required.
Key Features:
- Single-Pole Configuration: Designed for individual branch circuit protection in single-phase systems.
- 15 Amp Rating: Provides precise overcurrent protection for low-to-moderate load circuits.
- Thermal-Magnetic Trip Unit: Ensures dependable response to both overloads and short circuits.
- Plug-On Mounting: Allows quick, secure installation in compatible Square D panelboards.
- EH Series Design: Engineered for durability and long service life in demanding environments.
- Molded Case Construction: Enhances safety and mechanical strength under electrical stress.
- Compact Form Factor: Optimizes panel space without compromising protection performance.
The EH14015 delivers the reliability and precision required for branch circuit protection in commercial and industrial electrical distribution systems.
