Description

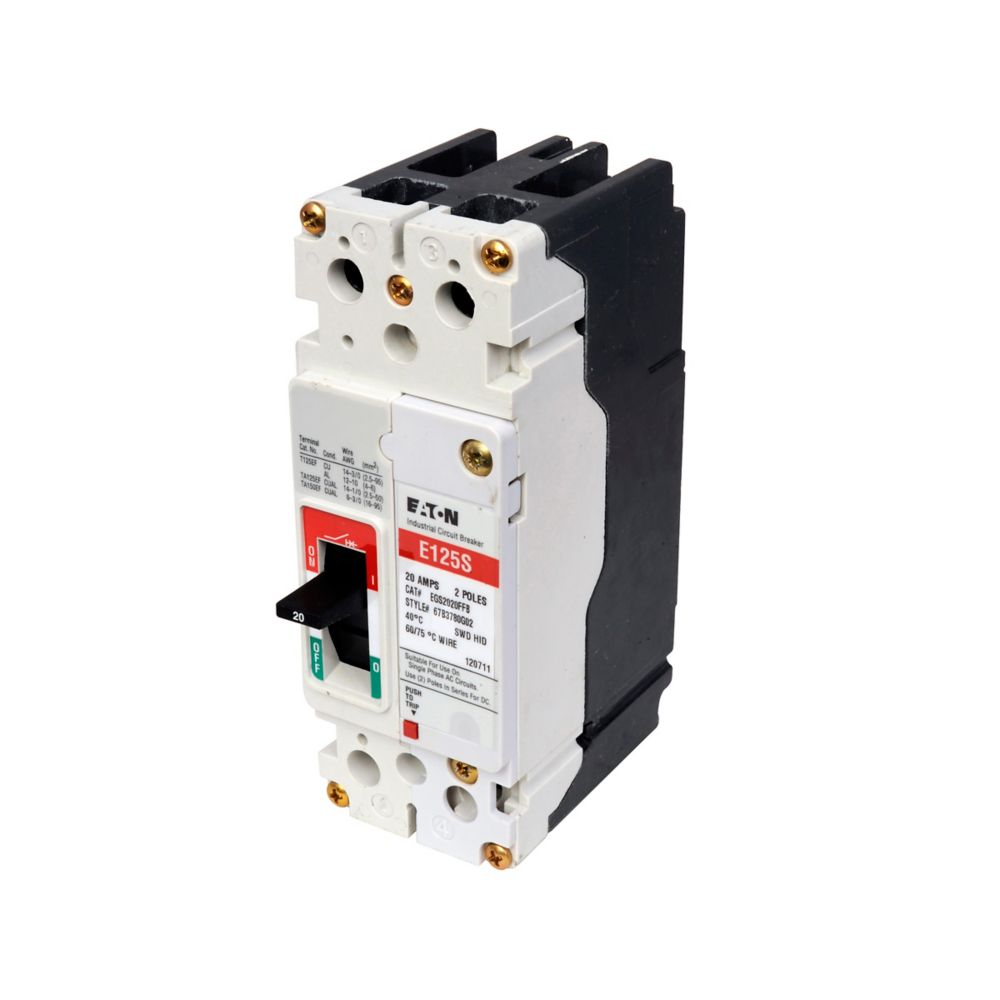

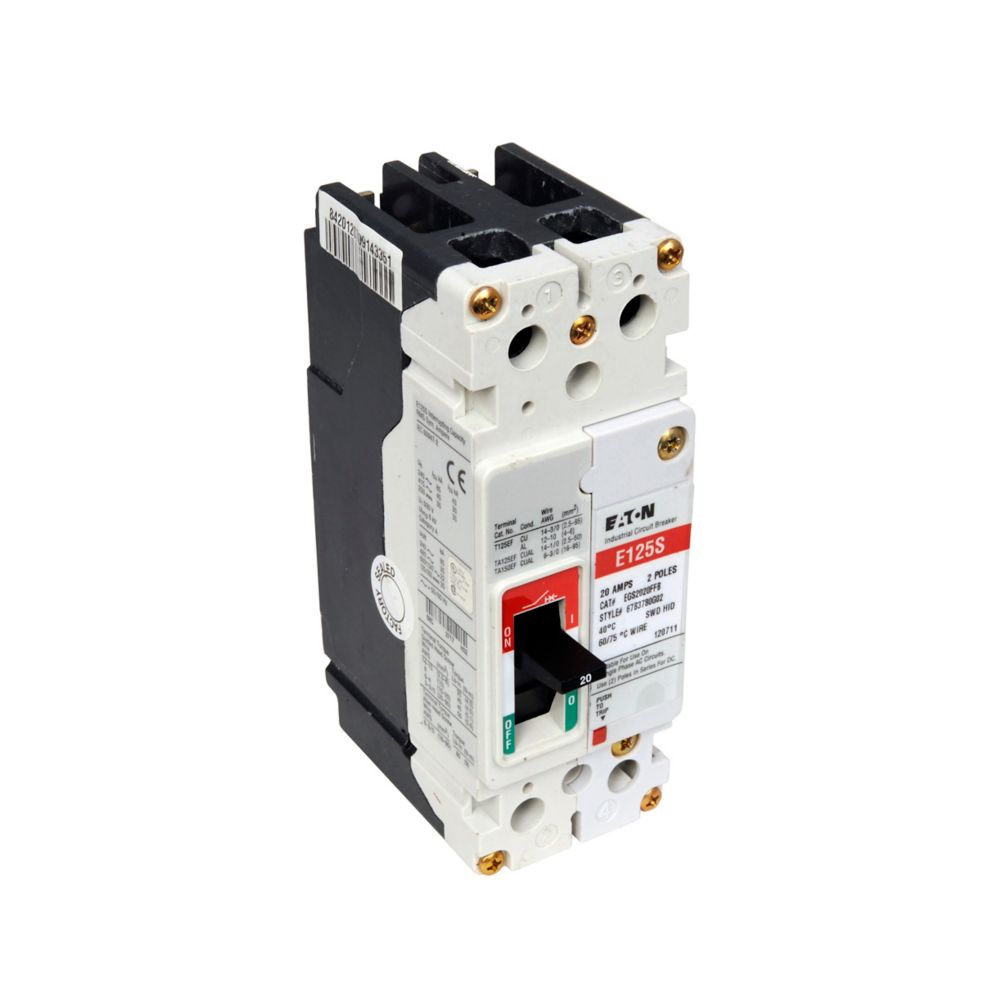

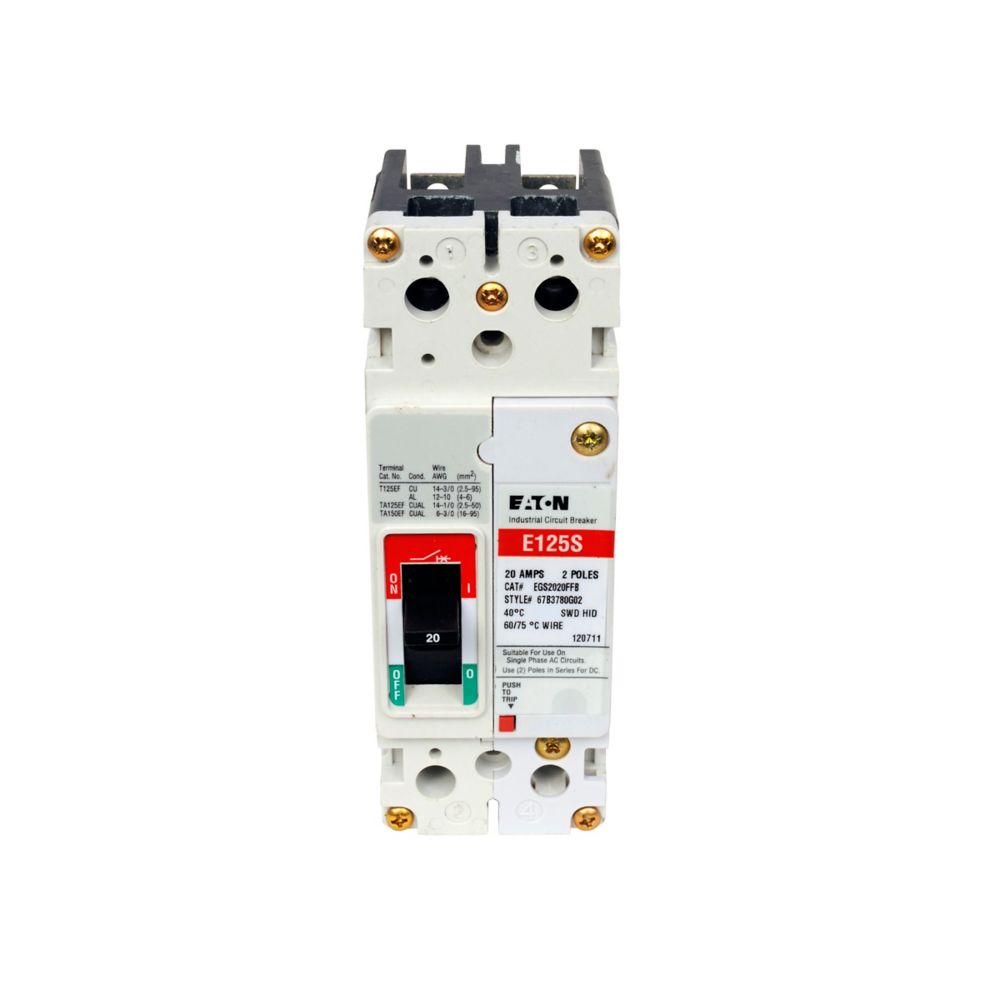

The Eaton EGH2020FFB is a two-pole molded case circuit breaker designed to provide high-interrupting overcurrent protection in commercial and industrial power systems. Rated at 20A and operating up to 600Y/347VAC, the Eaton EGH2020FFB delivers dependable thermal magnetic protection across a wide range of voltage levels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breaker |
| Part Number |
EGH2020FFB |
| Subcategory |
Molded Case |
| Series |
Series G |
| Frame Type |
EG |
| Breaker Type |
Molded Case Circuit Breaker |
| Current Rating |
20 Amps |
| Voltage Rating |
600Y/347 VAC |
| Poles |
2 |
| Phase |
Single Phase |
| Frequency Rating |
50/60 Hz |
| Trip Unit Type |
Thermal Magnetic (Fixed-Fixed) |
| Trip Functions |
Long Time and Instantaneous |
| Interrupting Ratings |
100 kAIC @ 240VAC; 65 kAIC @ 480VAC; 35 kAIC @ 600Y/347VAC |
| Connection Type |
Bolt-On |
| Terminal Connection |
Line and Load Side Lugs |
| Certifications |
UL, CSA, IEC, CE, KEMA, KEUR |
| Weight |
1 lb |
Information About EGH2020FFB
The EGH2020FFB is part of Eaton’s Series G molded case circuit breaker family, built on the EG frame for compact yet robust performance. It features a fixed thermal, fixed magnetic trip unit that ensures consistent long-time and instantaneous response to overloads and short-circuit conditions. The breaker supports bolt-on terminal connections and is designed for use in 50/60 Hz electrical systems with single-phase configurations. With multiple interrupt ratings across different voltage levels, it is suitable for demanding distribution applications requiring high fault-clearing capacity.
Key Features:
- Series G EG-Frame Design: Provides compact construction with high interrupting performance.
- 20 Amp Current Rating: Supports low-current branch and feeder circuit protection.
- Thermal Magnetic Trip Unit: Fixed long-time and instantaneous protection ensures predictable operation.
- High Interrupt Ratings: Rated up to 100 kAIC at 240VAC for robust short-circuit protection.
- Wide Voltage Capability: Operates at 600Y/347VAC for flexible application across power systems.
- Two-Pole Configuration: Protects dual conductors in single-phase installations.
- Bolt-On Terminals: Enables secure mechanical and electrical connections.
The EGH2020FFB delivers the reliability and precision required for high-interrupting molded case circuit breaker applications in industrial and commercial systems.
