Description

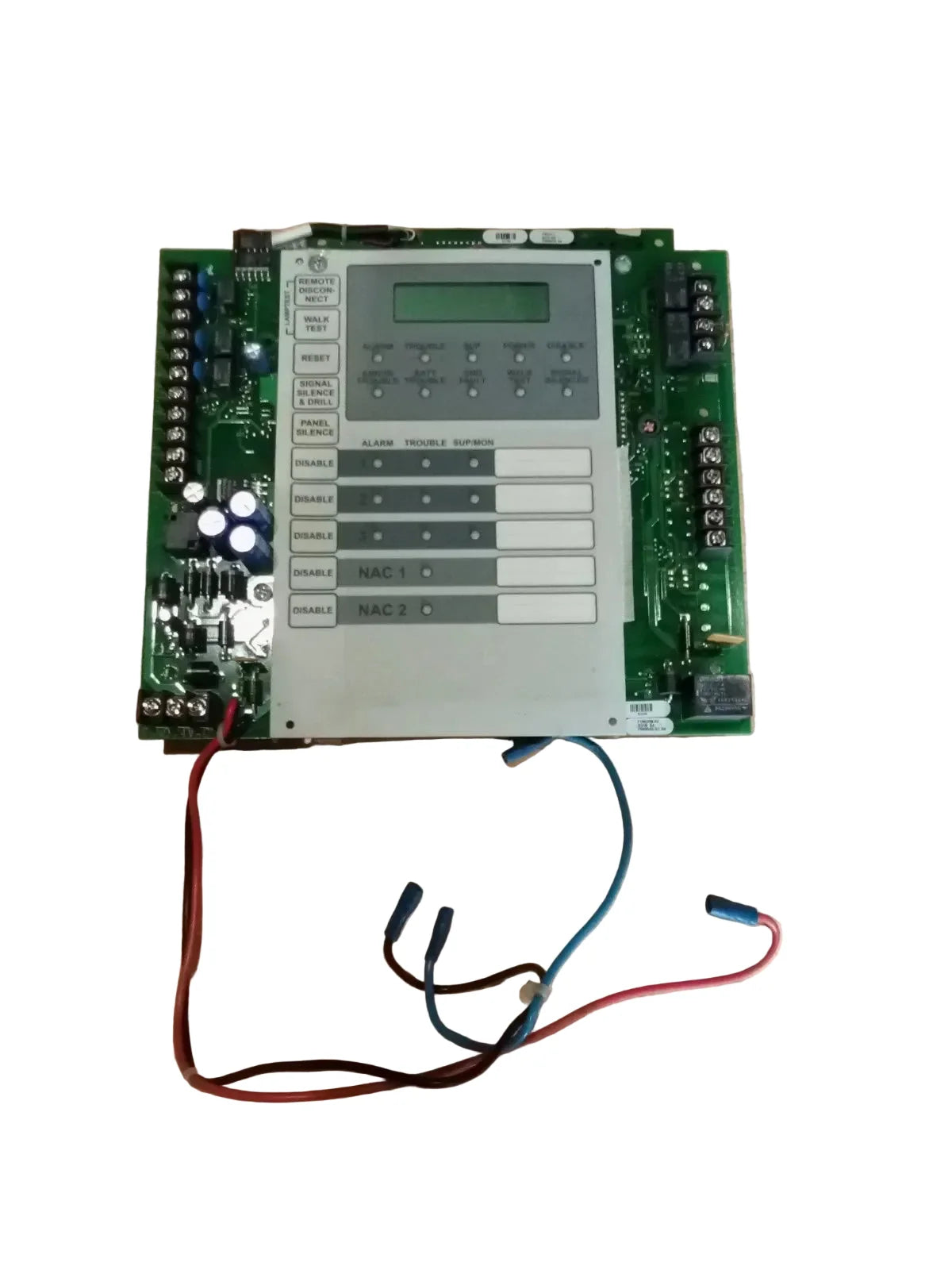

The Edwards Signaling E-FSC302R E-FSC Series Conventional Fire Alarm Panel is a microprocessor-controlled fire alarm control unit designed for small to medium-sized commercial fire detection systems. Featuring three initiating device circuits and two notification appliance circuits, it provides dependable fire detection, alarm signaling, and system supervision capabilities.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Fire Alarm Systems |
| Part Number |
E-FSC302R |
| Subcategory |
Conventional Fire Alarm Panels |
| Series |
E-FSC Series |
| Product Type |
Conventional Fire Alarm Control Panel |
| Initiating Device Circuits (IDCs) |
3 Class B Circuits |
| Notification Appliance Circuits (NACs) |
2 Class B Circuits |
| NAC Output Rating |
2 A per Circuit, 3.5 A Total |
| Auxiliary Power Output |
0.5 A Maximum |
| Control Technology |
Microprocessor-Controlled |
| System Relays |
Alarm, Supervisory, and Trouble Form C Relays |
| Detector Compatibility |
Supports 2M, SC, 2400, 500, and 700 Series Detectors |
| Programming Method |
Front Panel Programmable |
| Operating Temperature |
32°F to 120°F (0°C to 49°C) |
| Color |
Red |
| Weight |
18 lb (8.16 kg) |
Information About E-FSC302R
The E-FSC302R is a conventional fire alarm control panel from the Edwards E-FSC Series, engineered to deliver reliable fire protection and system monitoring in commercial, institutional, and industrial facilities. Designed with three Class B initiating device circuits (IDCs) and two Class B notification appliance circuits (NACs), the panel supports a wide range of compatible fire detection and notification devices. Its microprocessor-based architecture includes front-panel programming, walk-test functionality, and support for Edwards CleanMe® compatible detectors with maintenance alert and drift compensation features. The panel can also integrate with optional annunciators, relay modules, and communication accessories, providing flexibility for expanding system requirements.
Key Features:
- Three Initiating Device Circuits: Supports up to three Class B fire detection zones.
- Two Notification Appliance Circuits: Provides signaling control for horns, strobes, and notification devices.
- Microprocessor-Controlled Design: Delivers reliable monitoring and system management.
- Front Panel Programming: Simplifies installation, configuration, and maintenance.
- CleanMe® Detector Support: Provides maintenance alerts and automatic drift compensation.
- Integrated System Relays: Includes alarm, supervisory, and trouble relay outputs.
- Walk Test Function: Supports efficient system testing by a single technician.
- Remote Expansion Capability: Compatible with serial annunciators and relay modules.
The E-FSC302R delivers the reliability and precision required for conventional fire detection, alarm notification, and life safety system management.
