Description

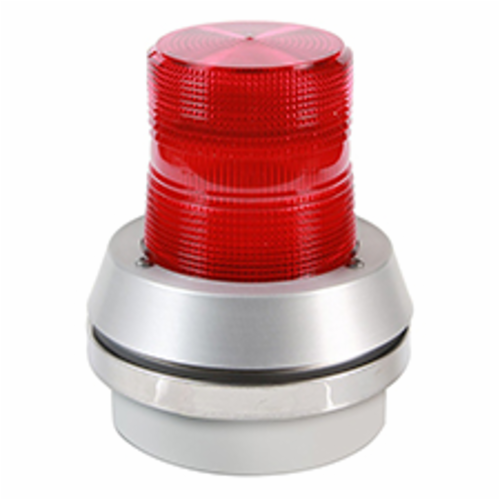

The Edwards Signaling 95R-N5 is a light-duty xenon strobe beacon with an integrated horn designed for audible and visual warning in industrial, commercial, and institutional facilities. Manufactured by Edwards Signaling, the 95R-N5 operates on 120 VAC and combines a high-intensity red xenon strobe with a 95 dB horn to provide effective emergency and equipment status notification. Its weather-resistant construction and polycarbonate Fresnel lens make it suitable for both indoor and outdoor signaling applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Audible & Visual Signaling |
| Part Number |
95R-N5 |
| Subcategory |
Strobe Beacon with Horn |
| Series |
95 Series |
| Product Type |
Light-Duty Xenon Strobe Beacon with Integrated Horn |
| Operating Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Operating Current |
0.1 A |
| Light Source |
Xenon |
| Lens Color |
Red |
| Light Output |
1,400,000 cd |
| Flash Rate |
65 FPM |
| Horn Output |
95 dB at 1 m |
| Lens Material |
Polycarbonate |
| Mounting Type |
Surface Mount |
| Shape |
Cylindrical |
| Operating Temperature |
-31°F to 150°F (-35°C to 66°C) |
| Average Lamp Life |
5,000 Hours |
| Approvals |
cUL Listed |
| Application |
Industrial, Commercial, Institutional, Indoor/Outdoor |
| Dimensions |
6 in. Diameter × 7.36 in. Height |
| Weight |
1.80 lb (0.82 kg) |
Information About 95R-N5
The 95R-N5 is part of the Edwards Signaling 95 Series of light-duty audible and visual signaling devices engineered for intermittent warning applications. It incorporates a xenon flash tube, an internal horn, and an optical Fresnel lens to maximize visibility while delivering clear audible alerts. The unit features a durable cast base with a shatter-resistant polycarbonate lens and is designed for surface mounting in commercial and industrial installations. Its integrated trigger and timing circuitry simplifies installation while providing dependable signaling performance in a variety of indoor and outdoor environments.
Key Features:
- Integrated Audible/Visual Alarm: Combines a xenon strobe beacon with a built-in 95 dB horn.
- High-Intensity Xenon Strobe: Produces up to 1,400,000 candela peak light output.
- 120 VAC Operation: Compatible with standard 120 VAC, 50/60 Hz electrical systems.
- Red Fresnel Lens: Enhances light distribution for improved visibility.
- Weather-Resistant Design: Suitable for indoor and outdoor applications.
- Polycarbonate Lens: Shatter-resistant construction withstands shock and vibration.
- Long Lamp Life: Xenon flash tube rated for approximately 5,000 operating hours.
- Surface Mount Installation: Designed for straightforward mounting on walls and equipment.
The 95R-N5 delivers the reliability and precision required for industrial audible and visual warning, equipment status indication, and facility safety notification.
