Description

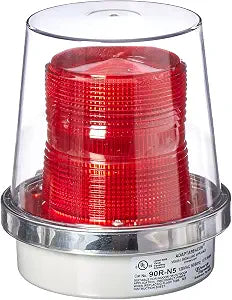

The Edwards Signaling 90R-N5 is a light-duty xenon flashing strobe beacon designed to provide high-intensity visual warning for industrial, commercial, and institutional applications. Manufactured by Edwards Signaling, the 90R-N5 operates on 120 VAC and delivers a bright red flashing signal with a peak light output of 1,400,000 candela for effective emergency and equipment status indication. Its cast base, Fresnel lens, and weather-resistant construction make it suitable for dependable indoor and outdoor visual signaling.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Visual Signaling |
| Part Number |
90R-N5 |
| Subcategory |
Flashing Strobe Light |
| Series |
90 Series |
| Product Type |
Xenon Flashing Strobe Beacon |
| Operating Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Operating Current |
0.1 A |
| Lamp Type |
Xenon |
| Lens Color |
Red |
| Flash Rate |
65 FPM |
| Peak Light Output |
1,400,000 cd |
| Lens Type |
Fresnel |
| Lamp Life |
5,000 Hours |
| Base Material |
Cast Metal |
| Mounting |
Panel, Conduit, 4-Inch Octagonal Box |
| Operating Temperature |
-31°F to 150°F (-35°C to 66°C) |
| Approvals |
UL 1638, cUL |
| Dimensions |
6 in. Diameter × 6-15/16 in. Height |
| Application |
Industrial, Commercial, Institutional, Indoor/Outdoor |
| Weight |
1.75 lb (0.79 kg) |
Information About 90R-N5
The 90R-N5 is part of the Edwards Signaling 90 Series of xenon strobe beacons engineered for intermittent visual notification. It features a durable cast base that also functions as a junction box, reducing installation complexity while providing long-term mechanical strength. The beacon incorporates an optically designed Fresnel lens and integrated trigger and timing circuitry to maximize flash visibility and improve viewer perception. It supports panel, conduit, or 4-inch octagonal box mounting, making it suitable for industrial machinery, commercial facilities, and institutional safety systems.
Key Features:
- Xenon Flash Tube: Produces an intense visual warning signal for safety applications.
- High Light Output: Delivers up to 1,400,000 peak candela for excellent visibility.
- 120 VAC Operation: Compatible with standard 120 VAC, 50/60 Hz electrical systems.
- Red Fresnel Lens: Enhances light distribution and improves signal recognition.
- 65 FPM Flash Rate: Provides consistent intermittent visual notification.
- Cast Base Construction: Durable housing that can also serve as a junction box.
- Flexible Mounting: Supports panel, conduit, and 4-inch octagonal box installation.
- Indoor/Outdoor Use: Designed for reliable operation in commercial and industrial environments.
The 90R-N5 delivers the reliability and precision required for industrial visual warning, equipment status indication, and facility safety notification systems.
