Description

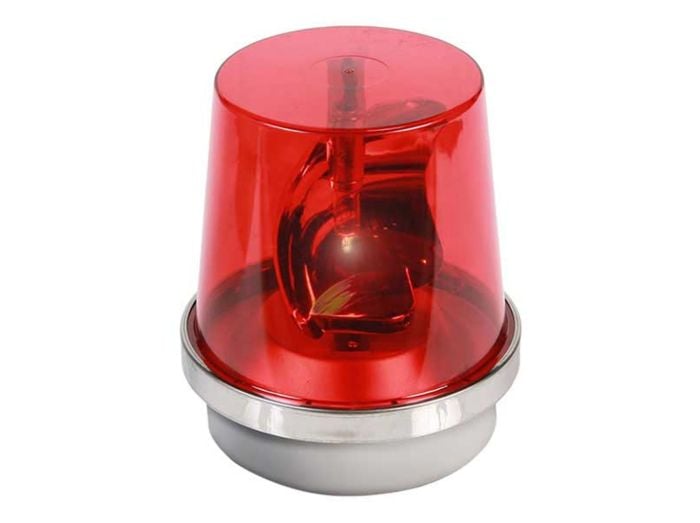

The Edwards Signaling 52R-N5-40WH is a rotating beacon designed to provide highly visible warning signals for industrial, commercial, and safety applications. Manufactured by Edwards Signaling, the 52R-N5-40WH operates on 120 VAC and utilizes a red rotating light with a durable weather-resistant enclosure for dependable indoor and outdoor visual notification.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Industrial Signaling |
| Part Number |
52R-N5-40WH |
| Subcategory |
Rotating Beacon |
| Series |
52 Series |
| Type |
Rotating Light |
| Operation |
Rotating |
| Operating Voltage |
120 VAC, 50/60 Hz |
| Current Rating |
0.35 A |
| Lamp Type |
40 W Halogen |
| Lens Color |
Red |
| Flash Rate |
65 FPM |
| Light Output |
3,328 cd (265 Lumens) |
| Lamp Life |
25,000 Hours |
| Mounting Type |
Direct, Wall, Surface, 1/2 in. Threaded Conduit, 4 in. Octagon Box |
| Housing Material |
Cast Metal Base with Polycarbonate Dome |
| Operating Temperature |
-31°F to 150°F (-35°C to 66°C) |
| Dimensions |
6 in. Diameter × 8-1/2 in. Height |
| Standards |
UL 1638, UL Listed, cUL Listed |
| Application |
Indoor and Outdoor Visual Signaling |
| Weight |
2.4 lb (1.09 kg) |
Information About 52R-N5-40WH
The 52R-N5-40WH is part of the Edwards Signaling 52 Series of rotating visual signaling devices engineered for continuous-duty industrial operation. It features a cast metal base, a durable polycarbonate dome, and a light-intensifying reflector that enhances visibility in demanding environments. The beacon supports direct, wall, surface, and 1/2-inch threaded conduit mounting, providing flexibility for a variety of installation requirements. Designed for reliable operation, it is UL and cUL listed and performs in temperatures ranging from -31°F to 150°F (-35°C to 66°C).
Key Features:
- 52 Series Design: Built as part of the Edwards Signaling 52 Series visual signaling product family.
- Rotating Warning Light: Provides continuous rotating red illumination for clear visual notification.
- 120 VAC Operation: Operates on a standard 120 VAC, 50/60 Hz power supply.
- High-Visibility Output: Produces up to 3,328 candela with a light-intensifying reflector.
- Durable Construction: Features a cast metal base and impact-resistant polycarbonate dome.
- Flexible Mounting Options: Supports direct, wall, surface, and 1/2-inch threaded conduit installation.
- Indoor and Outdoor Use: Weather-resistant construction suitable for a wide range of environments.
- UL and cUL Approved: Certified for industrial and commercial visual signaling applications.
The 52R-N5-40WH delivers the reliability and precision required for industrial visual warning, equipment status indication, and facility safety notification systems.
