Description

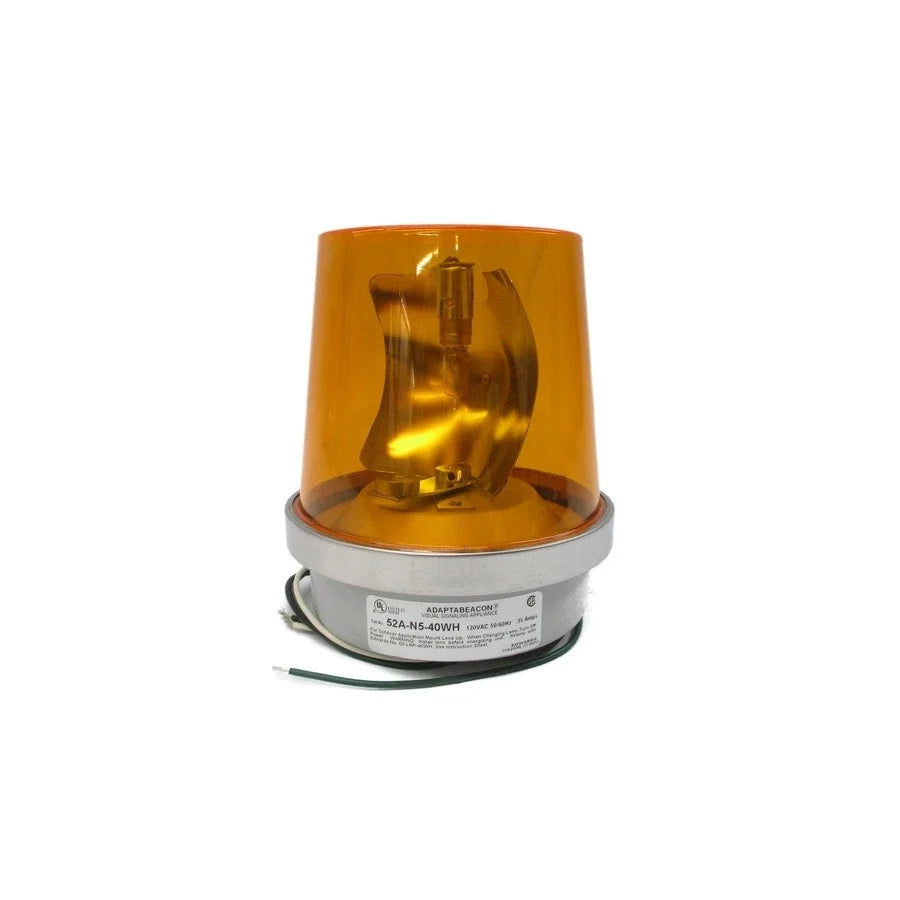

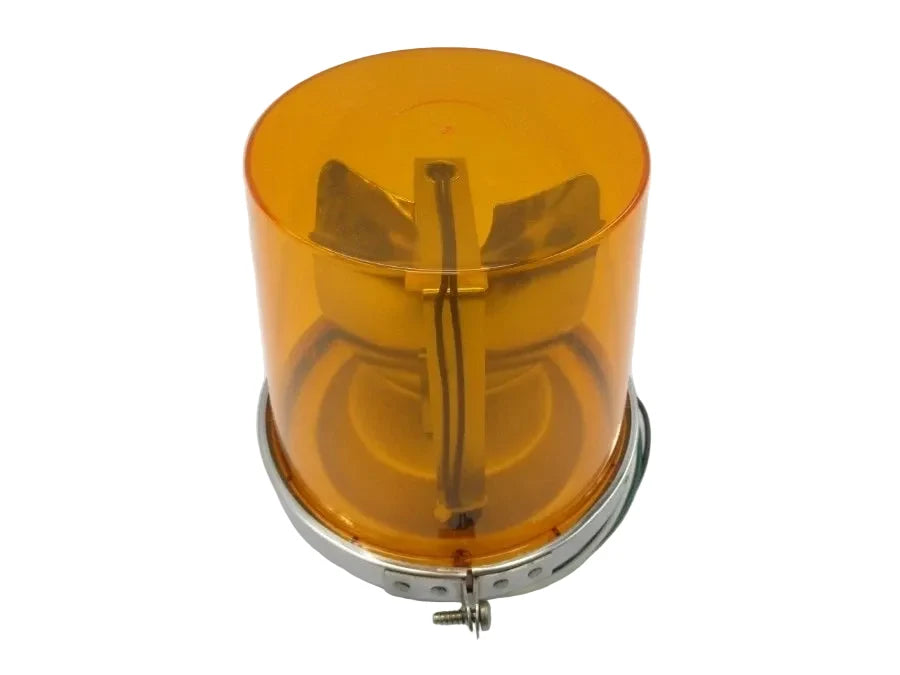

The Edwards Signaling 52A-N5-40WH is a weatherproof rotating beacon designed to provide highly visible warning signals for industrial, commercial, and safety applications. Manufactured by Edwards Signaling, the 52A-N5-40WH operates on 120 VAC and utilizes a 40 W halogen lamp with an amber rotating dome to deliver reliable visual notification in both indoor and outdoor environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Industrial Signaling |
| Part Number |
52A-N5-40WH |
| Subcategory |
Rotating Beacon |
| Series |
52 Series |
| Type |
Rotating Light |
| Lens Color |
Amber |
| Operating Voltage |
120 VAC, 50/60 Hz |
| Current Rating |
0.35 A |
| Lamp Type |
40 W Halogen |
| Lamp Life |
25,000 Hours |
| Flash Rate |
65 FPM |
| Light Output |
3328 cd (265 Lumens) |
| Housing Material |
Cast Metal Base with Polycarbonate Dome |
| Mounting Type |
1/2 in. Threaded Conduit, Surface, 4 in. Octagon Box |
| Operating Temperature |
-31°F to 150°F (-35°C to 66°C) |
| Dimensions |
6 in. Diameter × 8.5 in. Height |
| Environmental Rating |
Weatherproof, Indoor/Outdoor Use |
| Standards |
UL 1638, cUL Listed |
| Weight |
3.5 lb (1.59 kg) |
Information About 52A-N5-40WH
The 52A-N5-40WH is part of the Edwards Signaling 52 Series, a range of rotating beacons engineered for dependable visual signaling in demanding environments. It features a cast metal base with a durable polycarbonate dome and an integrated light-intensifying reflector for enhanced visibility. The beacon is compatible with 1/2-inch threaded conduit, surface mounting, and 4-inch octagon electrical boxes, allowing flexible installation across a variety of facilities. Designed for continuous service, it operates within temperatures from -31°F to 150°F while meeting UL 1638 and cUL certification requirements.
Key Features:
- 52 Series Construction: Designed as part of the Edwards Signaling 52 Series rotating beacon family.
- Rotating Visual Signal: Produces a continuous rotating amber warning light for clear visual indication.
- 120 VAC Operation: Operates on a standard 120 VAC, 50/60 Hz power supply.
- 40 W Halogen Lamp: Provides bright illumination with a long service life of approximately 25,000 hours.
- Weatherproof Design: Suitable for dependable indoor and outdoor installations.
- Durable Housing: Features a cast metal base with a rugged polycarbonate dome for extended durability.
- Flexible Mounting: Supports 1/2-inch threaded conduit, surface mounting, and 4-inch octagon box installation.
- Certified Performance: UL 1638 and cUL Listed for industrial visual signaling applications.
The 52A-N5-40WH delivers the reliability and precision required for industrial visual warning, process indication, and facility safety notification systems.
