Description

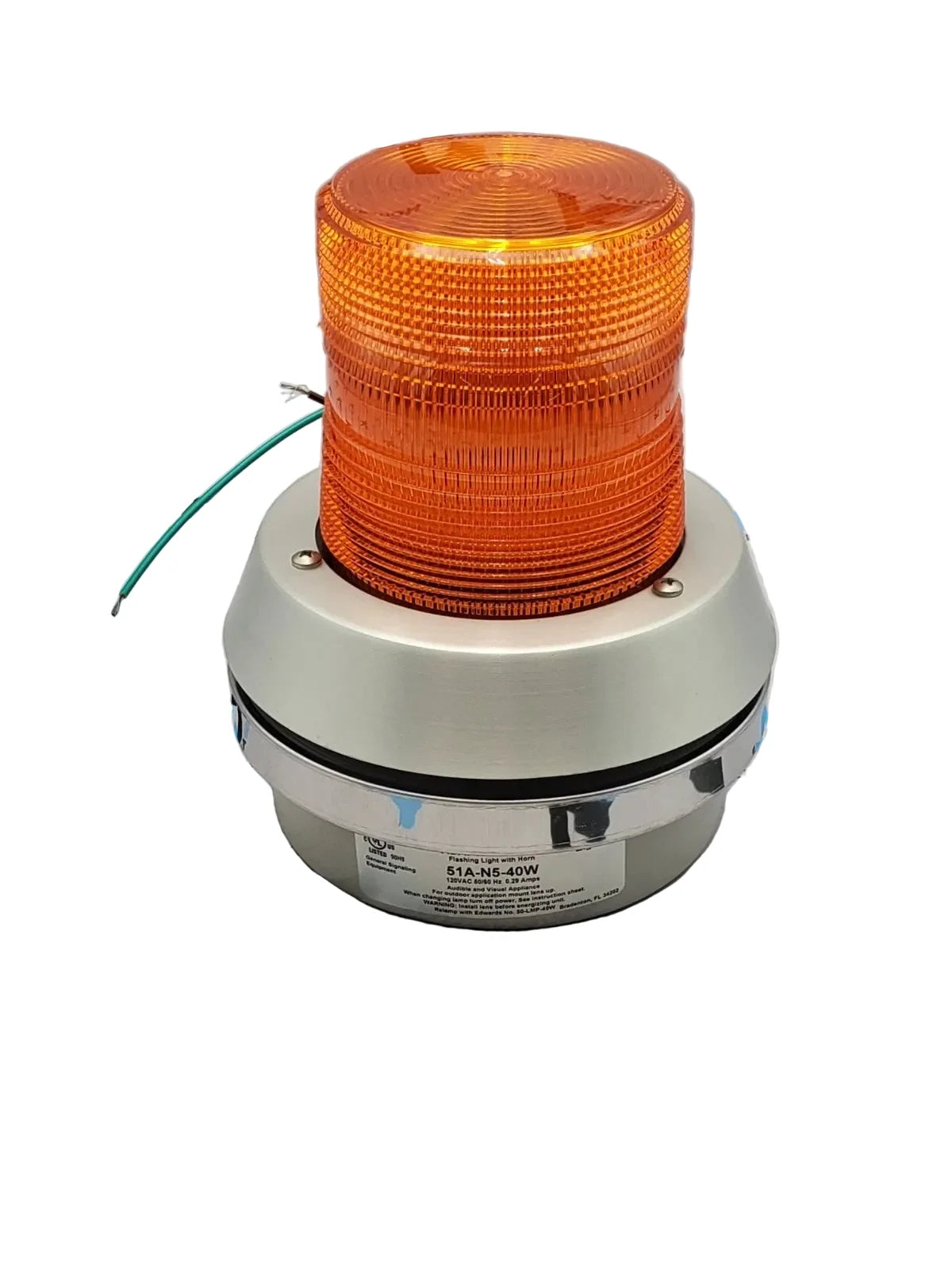

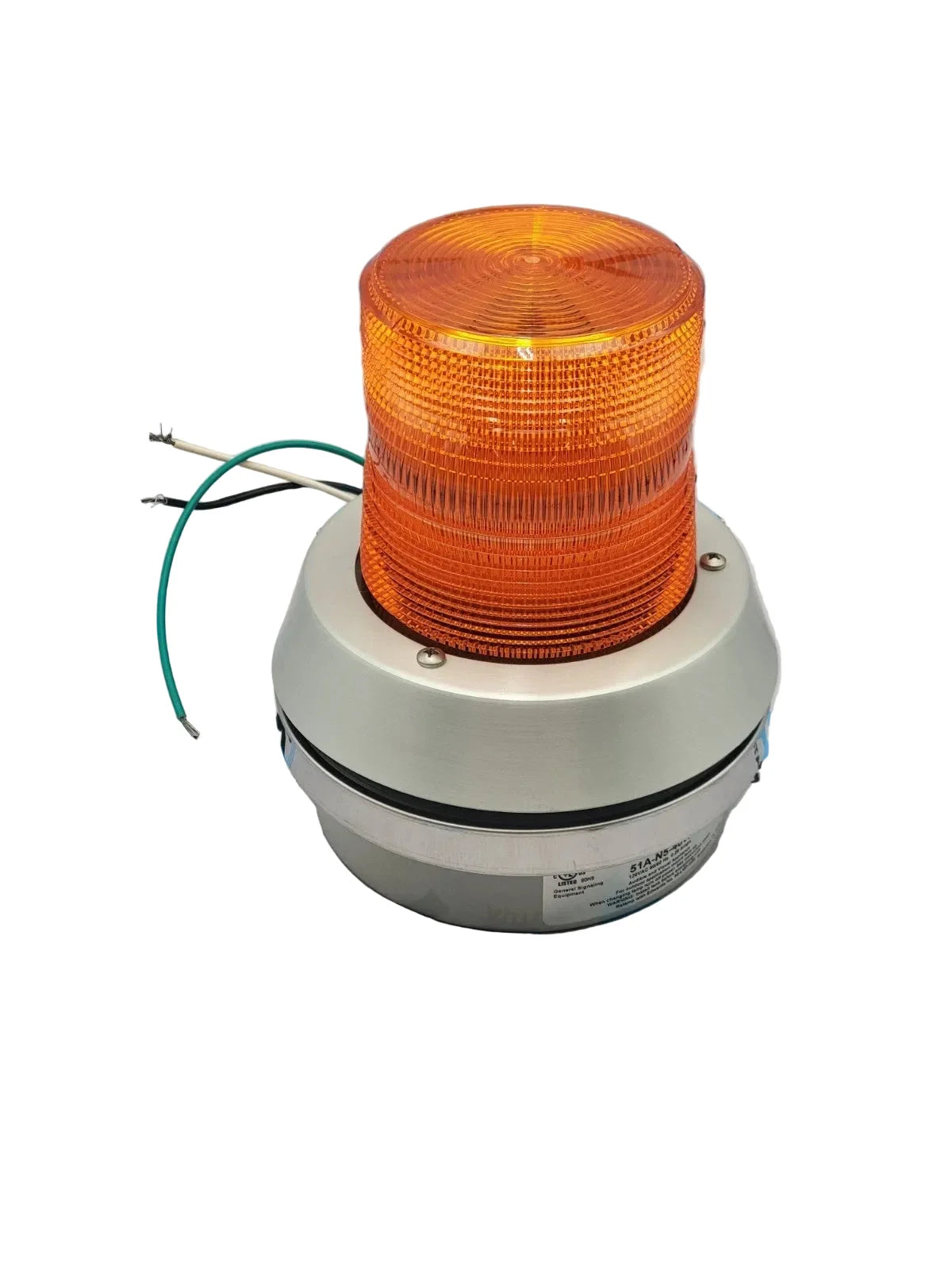

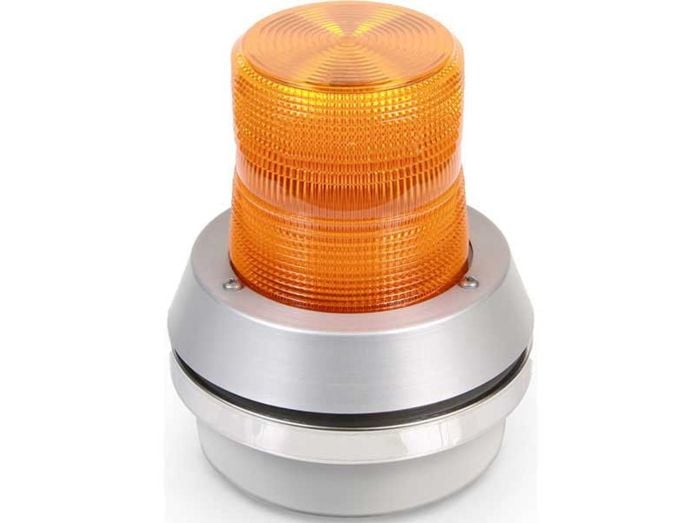

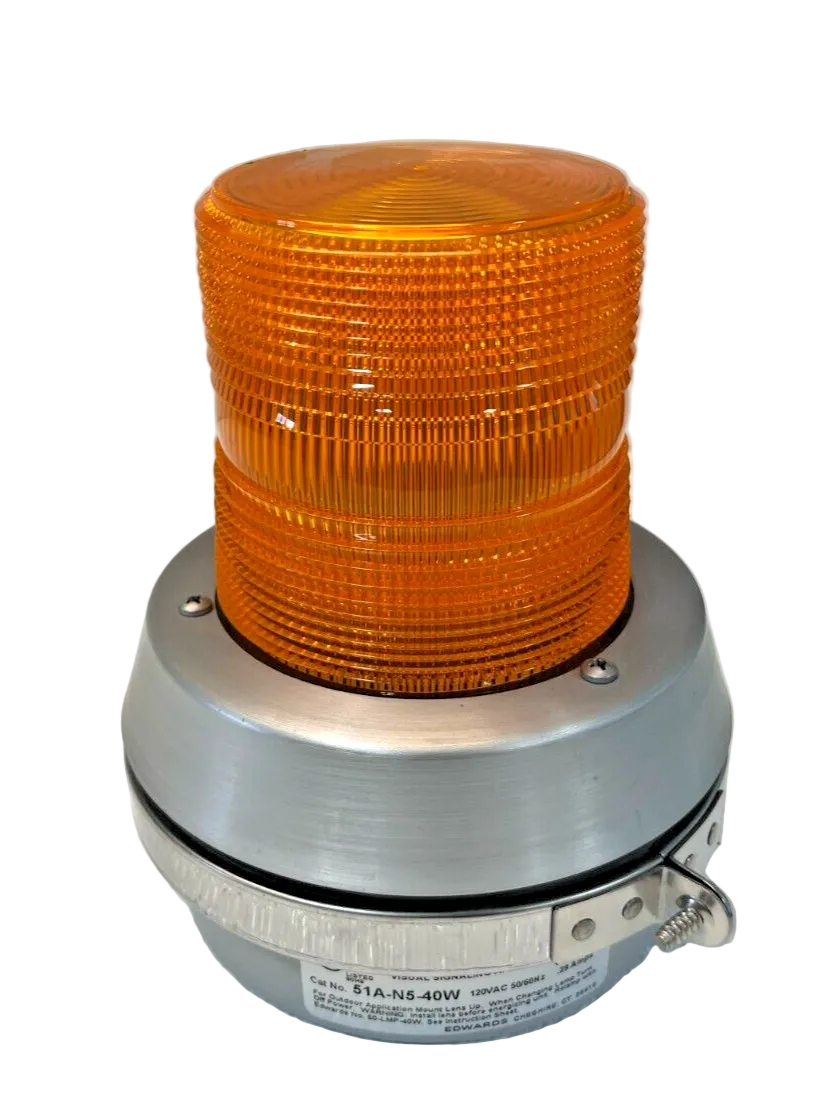

The Edwards Signaling 51A-N5-40W is a flashing beacon designed to provide dependable visual signaling for industrial, commercial, and safety applications. Manufactured by Edwards Signaling, the 51A-N5-40W operates on 120 VAC and uses a 40 W incandescent lamp with an amber lens to deliver clear warning indication in both indoor and outdoor environments.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Edwards Signaling
Category	Industrial Signaling
Part Number	51A-N5-40W
Subcategory	Flashing Beacon
Series	51 Series
Type	Cylindrical Flashing Beacon
Operating Voltage	120 VAC, 50/60 Hz
Current Rating	0.35 A
Power Rating	40 W
Lamp Type	Incandescent
Lens Color	Amber
Flash Rate	65 FPM
Light Output	189 Lumens
Mounting Type	Surface Mount
Housing Material	Cast Metal Base with Polycarbonate Lens
Operating Temperature	-31°F to 150°F (-35°C to 66°C)
Dimensions	7-3/8 in. H × 6 in. W
Standards	UL/cULus Listed
Weight	3 lb (1.36 kg)





Information About 51A-N5-40W

The 51A-N5-40W is part of the Edwards Signaling 51 Series, a line of rugged flashing beacons developed for reliable visual notification in demanding operating conditions. It features a durable cast metal base combined with a high-impact polycarbonate lens that provides excellent resistance to weather and mechanical impact. The beacon is designed for surface mounting, allowing straightforward installation in industrial facilities, manufacturing plants, and commercial buildings. Certified to UL/cULus standards, it operates reliably within temperatures ranging from -31°F to 150°F (-35°C to 66°C).

Key Features:

• 51 Series Design: Engineered for dependable industrial and commercial visual signaling.
• Incandescent Flashing Lamp: Utilizes a 40 W incandescent lamp for bright warning indication.
• 120 VAC Operation: Operates on a standard 120 VAC, 50/60 Hz power supply.
• Amber Lens: Provides a highly visible amber flashing signal for safety applications.
• Durable Construction: Features a cast metal base with a rugged polycarbonate lens.
• Surface Mount Installation: Enables secure mounting on flat surfaces for flexible deployment.
• Wide Temperature Range: Operates reliably from -31°F to 150°F (-35°C to 66°C).
• UL/cULus Listed: Meets recognized North American safety standards.

The 51A-N5-40W delivers the reliability and precision required for industrial visual warning, process indication, and facility safety notification systems.
