Description

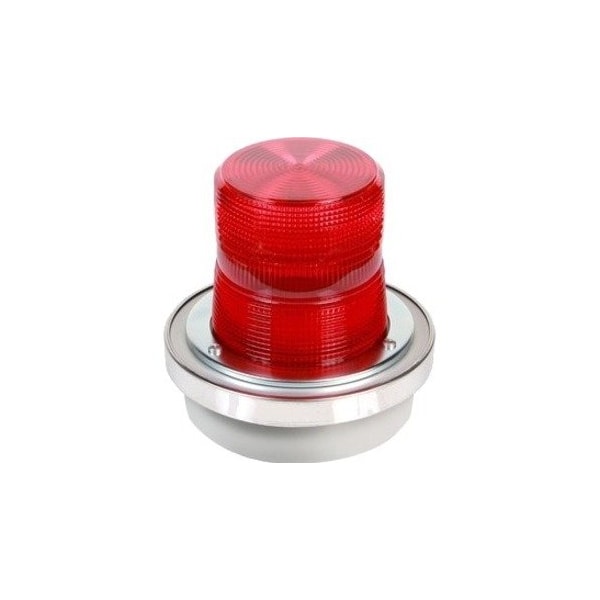

The Edwards Signaling 50R-N5-40WH is a flashing beacon engineered to provide reliable visual warning indication for industrial, commercial, and safety applications. Manufactured by Edwards Signaling, the 50R-N5-40WH operates on 120 VAC and utilizes a 40 W halogen lamp with a red Fresnel lens to deliver high-visibility flashing signals in both indoor and outdoor environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Industrial Signaling |
| Part Number |
50R-N5-40WH |
| Subcategory |
Flashing Beacon |
| Series |
50 Series |
| Type |
Flashing Light |
| Operation |
Flashing |
| Operating Voltage |
120 VAC, 50/60 Hz |
| Current Rating |
0.30 A |
| Lamp Type |
40 W Halogen |
| Lamp Life |
25,000 Hours |
| Lens Color |
Red |
| Lens Material |
Shatter-Resistant Polycarbonate Fresnel |
| Light Output |
265 Lumens (3,328 cd) |
| Flash Rate |
65 FPM |
| Mounting Type |
1/2 in. Threaded Conduit, Surface, 4 in. Octagon Box |
| Base Material |
Cast Metal |
| Operating Temperature |
-31°F to 150°F (-35°C to 66°C) |
| Dimensions |
6 in. Diameter × 5-7/8 in. Height |
| Approvals |
UL 1638, UL Listed, cUL Listed |
| Application |
Indoor and Outdoor Visual Signaling |
| Weight |
1.445 lb (0.66 kg) |
Information About 50R-N5-40WH
The 50R-N5-40WH is part of the Edwards Signaling 50 Series Adaptabeacon family of visual signaling devices designed for continuous-duty operation. It features a rugged cast metal base and a shatter-resistant polycarbonate Fresnel lens that enhances light distribution while withstanding demanding industrial conditions. The beacon supports 1/2-inch threaded conduit, surface, and 4-inch octagon box mounting, making it adaptable to a wide range of installation requirements. Certified to UL 1638 and cUL standards, it operates reliably in temperatures from -31°F to 150°F (-35°C to 66°C).
Key Features:
- 50 Series Adaptabeacon: Designed for dependable industrial visual signaling applications.
- Halogen Flashing Light: Uses a 40 W halogen lamp to produce a bright flashing warning signal.
- 120 VAC Operation: Operates from a standard 120 VAC, 50/60 Hz power supply.
- Red Fresnel Lens: Shatter-resistant polycarbonate Fresnel lens enhances light visibility.
- Durable Construction: Cast metal base provides strength and long-term durability.
- Flexible Mounting: Supports 1/2-inch threaded conduit, surface, and 4-inch octagon box installation.
- Indoor and Outdoor Use: Suitable for weather-exposed industrial and commercial environments.
- UL and cUL Listed: Meets recognized North American safety standards.
The 50R-N5-40WH delivers the reliability and precision required for industrial visual warning, equipment status indication, and facility safety notification systems.
