Description

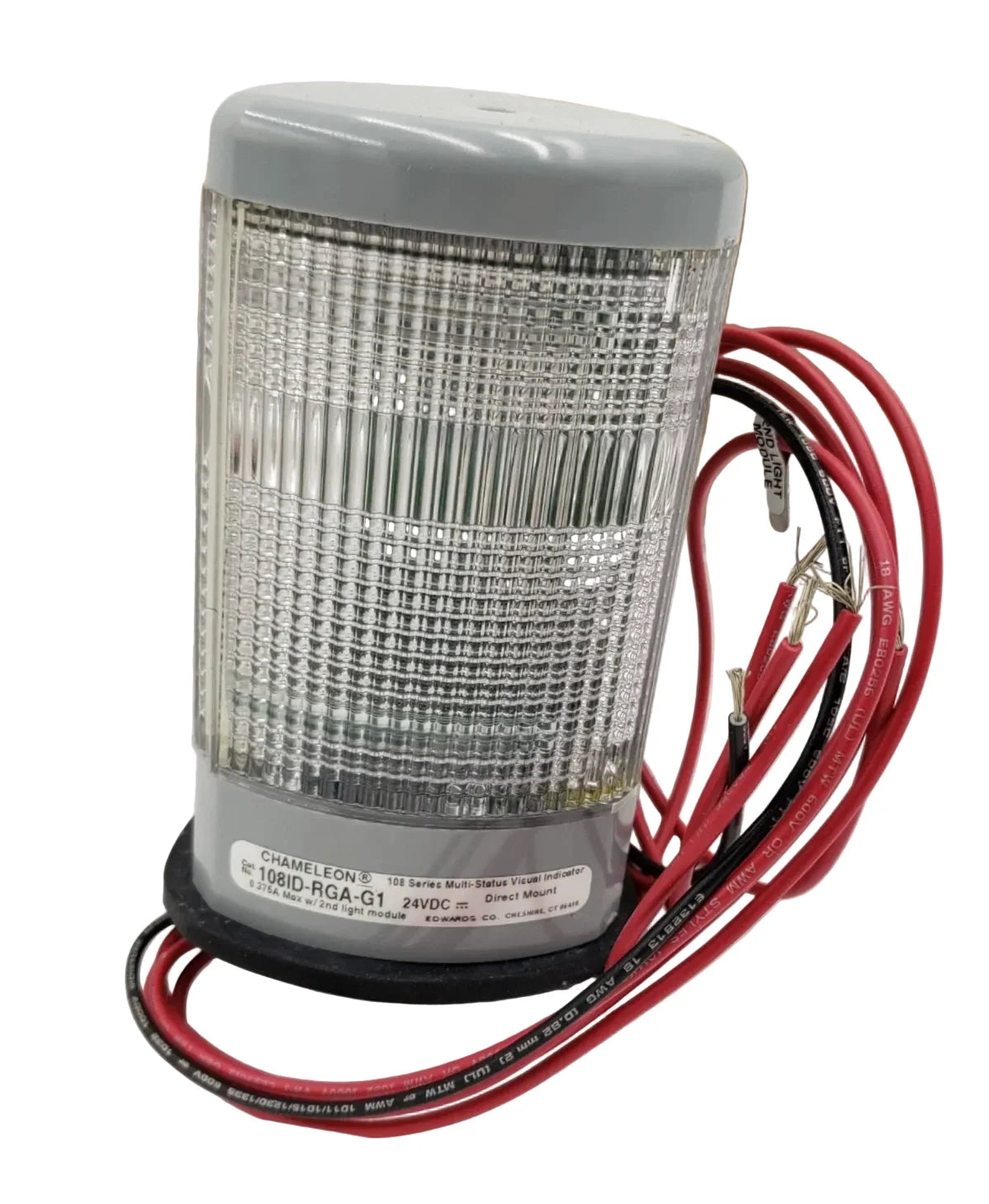

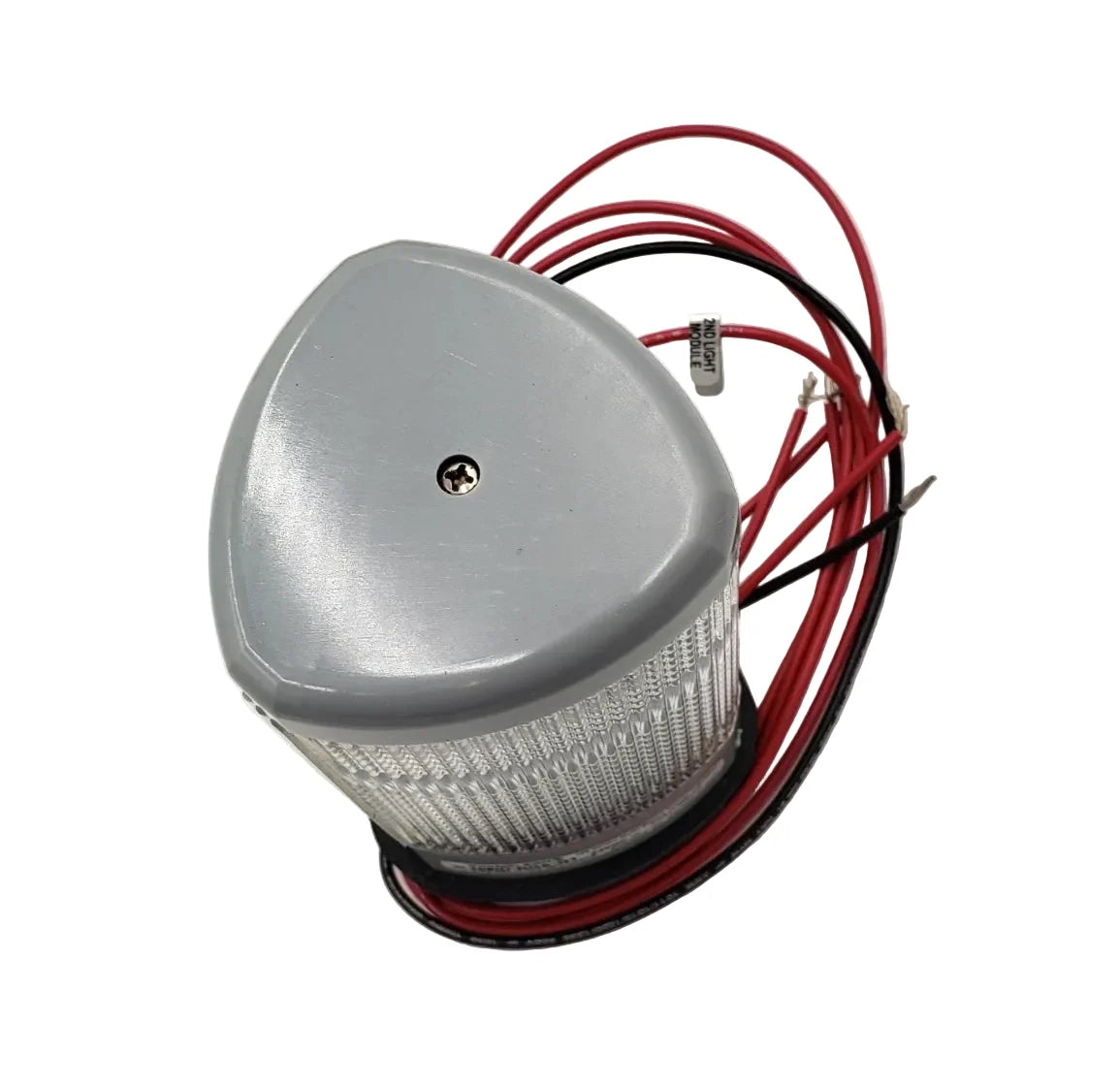

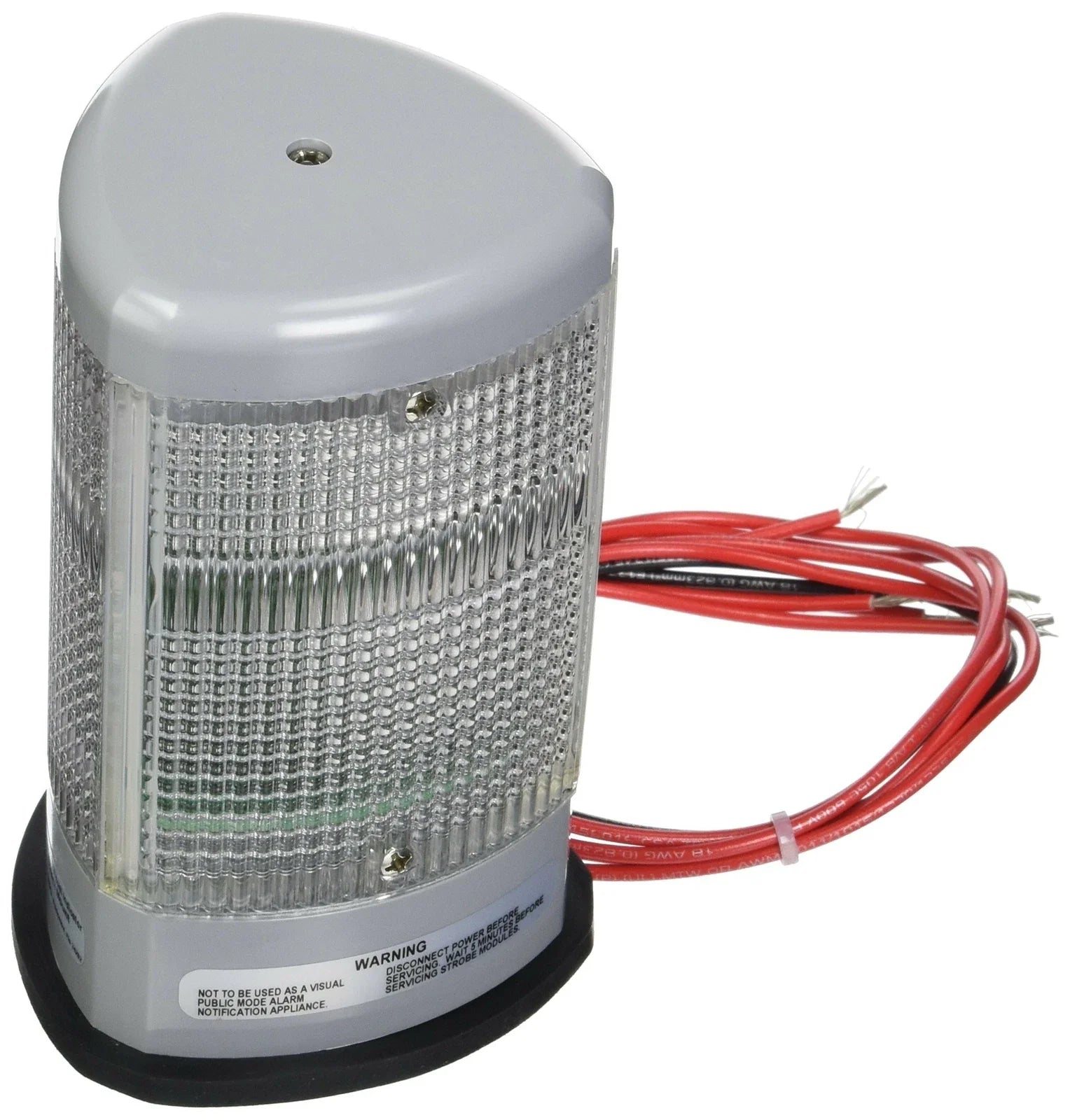

The Edwards Signaling 108ID-RGA-G1 is a multi-color LED signaling beacon designed to provide clear visual status indication for industrial automation and machine monitoring applications. Manufactured by Edwards Signaling, the 108ID-RGA-G1 operates on 24 VDC and combines red, green, and amber LED outputs in a single compact unit, supporting both steady and flashing operating modes for versatile visual notification.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Industrial Signaling |
| Part Number |
108ID-RGA-G1 |
| Subcategory |
LED Stack Light |
| Series |
108 Series Chameleon® |
| Type |
Flashing Light / Steady Light |
| Operation |
Continuous, Flashing |
| Operating Voltage |
24 VDC |
| Current Rating |
0.055 A |
| Lamp Type |
Cluster LED |
| LED Colors |
Red, Green, Amber |
| Light Output |
307 lm (Amber), 90 lm (Green), 120 lm (Red) |
| Candlepower |
1,131–3,859 cd |
| Lamp Life |
120,000 Hours |
| Mounting Type |
Surface / Direct Mount |
| Enclosure Rating |
NEMA 3R, NEMA 4X, IP65 |
| Dimensions |
3 in. W × 5-3/8 in. H |
| Application |
Indoor, Industrial, Weatherproof |
| Approvals |
UL 1638, cUL C22.2 |
| Additional Features |
PLC Compatible, Vibration-Resistant Heavy-Duty Design |
| Weight |
0.69 lb (0.31 kg) |
Information About 108ID-RGA-G1
The 108ID-RGA-G1 is part of the Edwards Signaling 108 Series Chameleon® visual signaling product family developed for industrial control and process indication. It features a rugged weatherproof housing with NEMA 3R, NEMA 4X, and IP65 protection, making it suitable for indoor and outdoor installations. The beacon utilizes long-life cluster LED technology and is PLC compatible for seamless integration into industrial automation systems. Its direct surface-mount design and vibration-resistant construction provide dependable operation in demanding manufacturing, processing, and equipment monitoring environments.
Key Features:
- Chameleon® 108 Series Design: Integrates multiple LED colors into a single compact signaling unit.
- Tri-Color LED Output: Provides red, green, and amber visual indication for machine and process status.
- Steady and Flashing Modes: Supports both continuous and flashing light operation.
- 24 VDC Operation: Compatible with standard industrial control power systems.
- Long-Life LED Technology: Cluster LEDs offer an operating life of up to 120,000 hours.
- PLC Compatible: Easily integrates with PLC-controlled automation and monitoring systems.
- Weatherproof Construction: NEMA 3R, NEMA 4X, and IP65 enclosure protects against harsh environmental conditions.
- Heavy-Duty Design: Vibration-resistant construction ensures reliable performance in industrial applications.
The 108ID-RGA-G1 delivers the reliability and precision required for industrial machine status indication, process monitoring, and visual signaling applications.
