Description

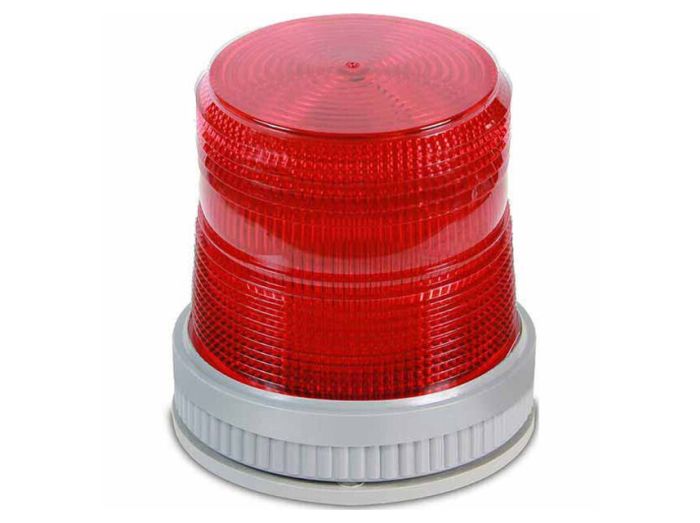

The Edwards Signaling 105XBRMR120A is a multi-mode LED beacon designed to provide steady or flashing visual indication for industrial signaling applications. Manufactured by Edwards Signaling, the 105XBRMR120A operates on 120 VAC and features a high-efficiency red LED with a double Fresnel lens for enhanced visibility. Its NEMA 4X enclosure and rugged thermoplastic construction ensure reliable performance in both indoor and outdoor environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Visual Signaling |
| Part Number |
105XBRMR120A |
| Subcategory |
LED Beacon |
| Series |
105XBR Series |
| Product Type |
Multi-Mode LED Beacon |
| Operating Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Operating Current |
0.108 A |
| Lamp Type |
LED |
| Lens Color |
Red |
| Visual Function |
Steady / Flashing |
| Flash Rate |
65 FPM |
| Lamp Life |
148,000 Hours |
| Enclosure Rating |
NEMA 4X |
| Housing Material |
Glass-Reinforced Thermoplastic |
| Lens Material |
Polycarbonate |
| Mounting |
Panel, Conduit, Wall |
| Operating Temperature |
-31°F to 150°F (-35°C to 66°C) |
| Construction Feature |
Shatter Resistant |
| Enclosure Finish |
Gray |
| Approvals |
UL, cUL |
| Dimensions |
4-1/2 in. W × 3-5/8 in. D × 4-5/8 in. H |
| Application |
Industrial |
| Weight |
1.6 lb (0.73 kg) |
Information About 105XBRMR120A
The 105XBRMR120A is part of the Edwards Signaling 105XBR Series of Xtra-Brite™ LED signaling devices developed for industrial Division 2 applications. It is engineered with a glass-reinforced thermoplastic base and a shatter-resistant polycarbonate lens, providing durability in harsh operating conditions. The unit supports multiple mounting configurations including panel, conduit, and wall installation, making it adaptable to various industrial setups. Its multi-mode operation allows selection between steady and flashing output, supporting flexible status indication in automation and process control systems.
Key Features:
- Multi-Mode Operation: Supports steady and flashing LED signaling modes.
- High-Visibility LED: Red LED output designed for clear industrial indication.
- 120 VAC Operation: Compatible with standard industrial power systems.
- NEMA 4X Enclosure: Provides protection against dust, water, and corrosion.
- Double Fresnel Lens: Enhances light distribution and visibility range.
- Durable Construction: Glass-reinforced thermoplastic base and polycarbonate lens.
- Flexible Mounting: Supports panel, conduit, and wall installation options.
- Long Service Life: Rated LED life up to 148,000 hours.
The 105XBRMR120A delivers the reliability and precision required for industrial status indication, equipment monitoring, and visual safety signaling applications.
