Description

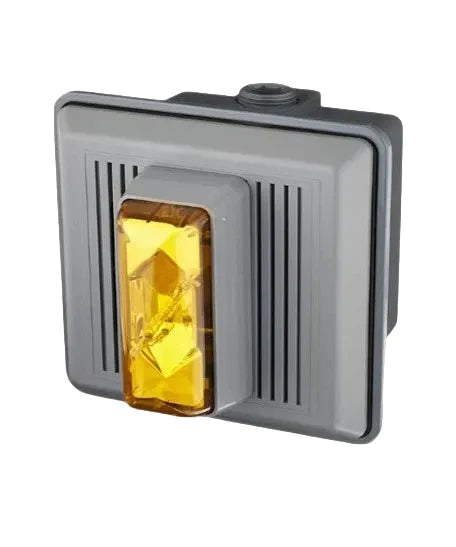

The Edwards Signaling 867STRA-N5 is a combined horn and strobe notification device designed for indoor fire alarm and emergency signaling applications. Manufactured by Edwards Signaling, it integrates audible and visual alerts into a single surface-mounted unit for efficient alarm communication. The Edwards Signaling 867STRA-N5 delivers reliable performance in building safety and evacuation systems where synchronized warning signals are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Fire Alarm Notification Appliances |
| Part Number |
867STRA-N5 |
| Subcategory |
Horn/Strobe Combination Unit |
| Model Series |
860STR |
| Type |
Surface Mount Horn/Strobe |
| Operating Voltage |
120 VAC |
| Operating Current (Strobe) |
0.115 A |
| Operating Current (Horn) |
0.033 A |
| Light Source |
Xenon Lamp |
| Light Intensity |
90 Candela |
| Sound Output |
90 dB at 10 ft |
| Flash Rate |
60 FPM |
| Lens Color |
Amber |
| Housing Material |
Gray Engineered Thermoplastic |
| Mounting Type |
Surface Mount (3-5/16 in deep square box) |
| Application |
Indoor |
| Temperature Rating |
86°F max operating; 32–120°F ambient |
| Approvals |
UL 1638 (Strobe), UL 464 (Horn) |
| Weight |
1.35 lb (approx.) |
Information About 867STRA-N5
The 867STRA-N5 is part of the Edwards 860STR series engineered for combined horn and strobe notification in commercial fire alarm systems. It features a rugged gray engineered thermoplastic housing designed for long-term indoor use and reliable acoustic and optical performance. The unit is compatible with standard 120 VAC alarm circuits and is intended for surface mounting on a 3-5/16 inch deep square electrical box. It uses xenon strobe technology paired with an integrated electronic horn to provide coordinated visual and audible alerts in emergency conditions.
Key Features:
- Dual-Function Output: Combines horn and strobe in a single device for unified alarm signaling
- Xenon Strobe Technology: Produces bright amber visual alerts with consistent flash performance
- High Sound Output: 90 dB audible signal ensures clear emergency notification coverage
- 120 VAC Operation: Standard voltage compatibility for building fire alarm systems
- Surface Mount Design: Fits 3-5/16 inch deep square box for straightforward installation
- Durable Thermoplastic Housing: Engineered material provides long-term indoor durability
- UL Listed Compliance: Meets UL 1638 (strobe) and UL 464 (horn) safety standards
- Optimized Flash Rate: 60 FPM ensures effective visual warning synchronization
The 867STRA-N5 delivers the reliability and precision required for indoor emergency notification and fire alarm signaling systems.
