Description

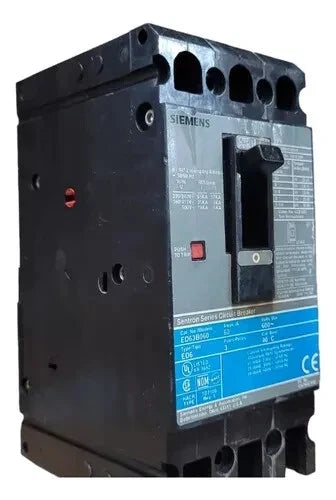

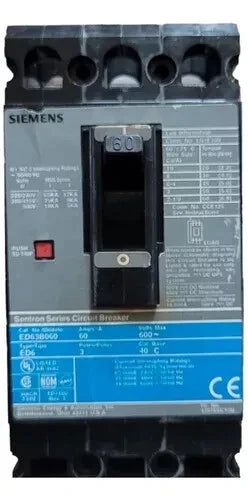

The Siemens ED63B060 is a 3-pole molded case circuit breaker (MCCB) from the Sentron™ ED6 series, designed for reliable protection in commercial and industrial electrical systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Electrical Protection Devices
|
| Part Number |
ED63B060 |
| Subcategory |
Molded Case Circuit Breakers (MCCBs) – Thermal Magnetic
|
| Connection |
Bolt-On |
| Family |
Sentron Series
|
| Type |
ED |
| Pole |
3
|
| Amparage |
60 Amos |
| Functions |
LI - Long-Time and Instantaneous |
| Protection |
Thermal Magnetic |
| Voltage |
600 V |
| AIC Ratings |
25kA@480V |
| Phase |
3 |
| Dimensions (HxWxD) |
6.35" x 3" x 3.92" |
| Weight |
3.693 lbs |
Information About ED63B060
The Siemens ED63B060 is a 3-pole molded case circuit breaker (MCCB) from the Sentron™ ED6 series, designed for reliable protection in commercial and industrial electrical systems. It features a 60 A current rating and a thermal-magnetic trip unit, providing both overload and short-circuit protection.
Key Features:
-
Rated Current: 60 A
-
Voltage Rating: 600 VAC / 250 VDC
-
Interrupting Capacity:
-
25 kA @ 480 V AC
-
18 kA @ 600 V AC
-
Trip Unit: Thermal-Magnetic (non-interchangeable)
-
Frame Type: ED6
-
Mounting: Bolt-On
-

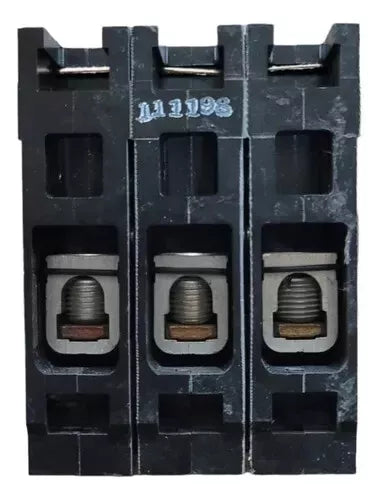

Wire Range: #10 to 1/0 AWG (Copper/Aluminum)
-
Operating Temperature: 40°C
-
Certifications: UL 489, IEC 60947-2, HACR Rated
This MCCB is suitable for applications requiring dependable circuit protection with standard interrupting capacity. Its compact design and bolt-on mounting make it ideal for panel installations where space is limited.
