Description

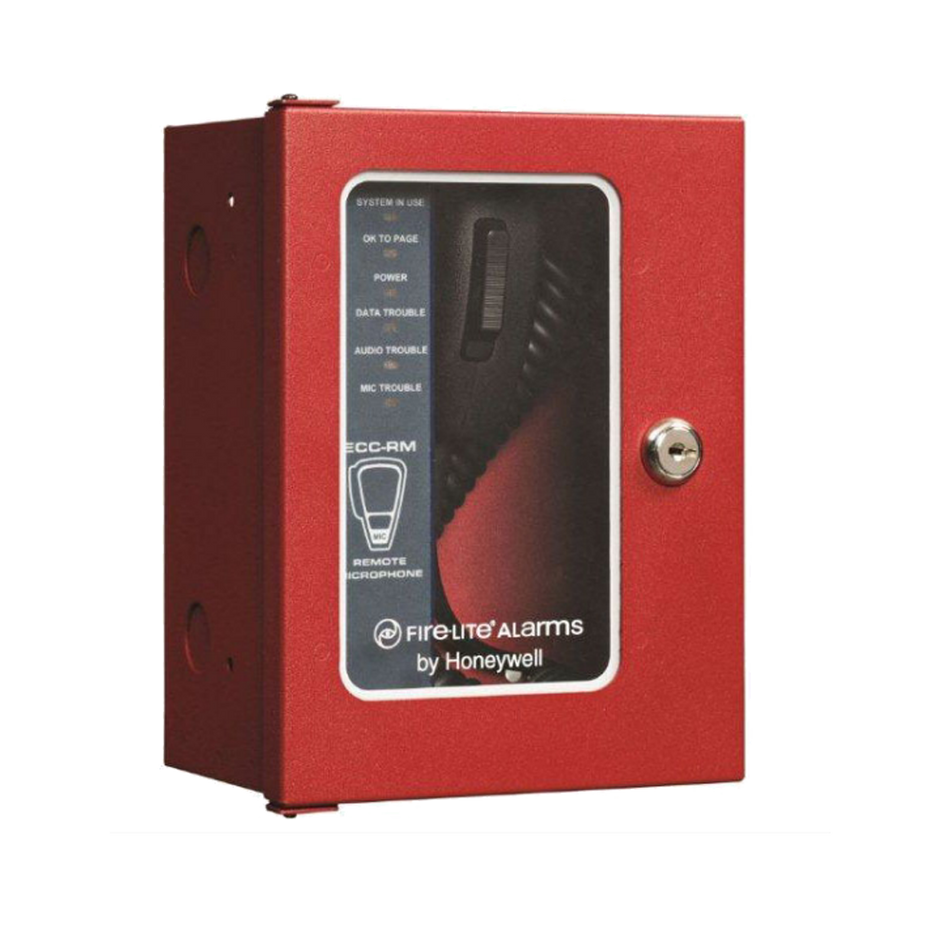

The Fire-Lite ECC-RM is a remote microphone unit designed for use with the Fire-Lite ECC-50/100(E) emergency communication system. It provides distributed paging and voice evacuation capability from a secure, wall-mounted enclosure.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fire-Lite |
| Category |
Fire Alarm Equipment |
| Part Number |
ECC-RM |
| Subcategory |
Remote Microphone |
| Series |
ECC Series |
| Product Type |
Remote paging microphone |
| Power Source |
24 VDC non-resettable from ECC-50/100(E) |
| Operator Power |
External operator interface power (non-supervised) |
| Cabinet Dimensions |
8.3" H × 6.08" W × 4.34" D (211 × 154 × 110 mm) |
| Weight |
4 lbs (1.81 kg) |
| Enclosure |
Lockable metal cabinet |
| Application |
Fire alarm paging and voice evacuation |
| Mounting |
Wall-mounted |
| Environment |
Commercial, institutional, and industrial |
| Compliance |
UL listed (where applicable) |
Information About ECC-RM
The ECC-RM is part of Fire-Lite’s Emergency Command Center (ECC) series, engineered to extend voice communication and paging functions throughout a facility. It operates on 24 VDC supplied from the ECC-50/100(E) control unit and features a lockable enclosure for tamper resistance. The remote microphone allows authorized personnel to initiate live voice instructions for paging, evacuation, or emergency response. Compact and easy to install, the ECC-RM provides a reliable extension of centralized voice evacuation systems for commercial, institutional, and industrial facilities.
Key Features:
- Remote Paging Capability: Enables live voice paging and evacuation instructions.
- System Integration: Designed for use with the Fire-Lite ECC-50/100(E).
- Secure Enclosure: Lockable wall-mount cabinet for authorized access only.
- 24 VDC Operation: Powered by the ECC main system for reliable performance.
- Compact Design: Measures 8.3" × 6.08" × 4.34" for space-conscious installations.
- Commercial Applications: Ideal for schools, offices, hospitals, and industrial sites.
- Reliable Performance: Provides distributed voice communication in life safety systems.
The ECC-RM delivers the reliability and precision required for remote voice paging in fire alarm and emergency communication systems.
