Description

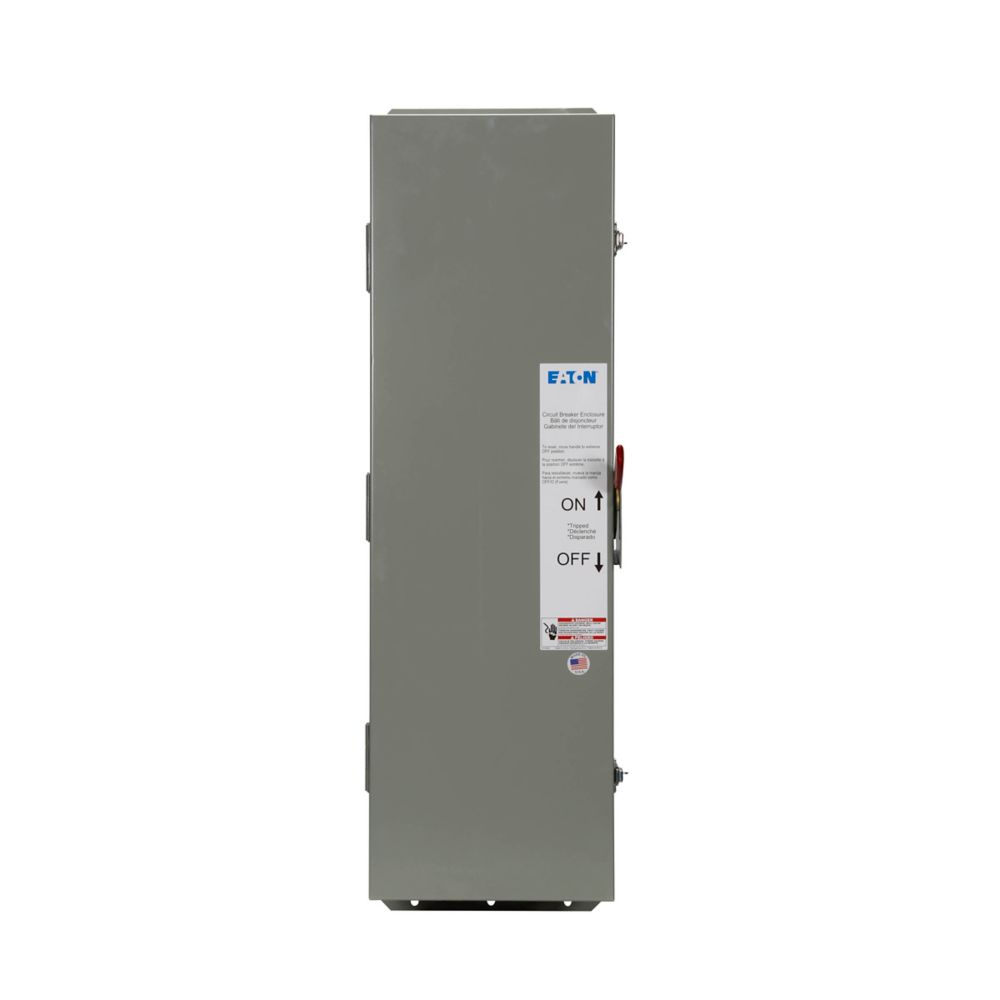

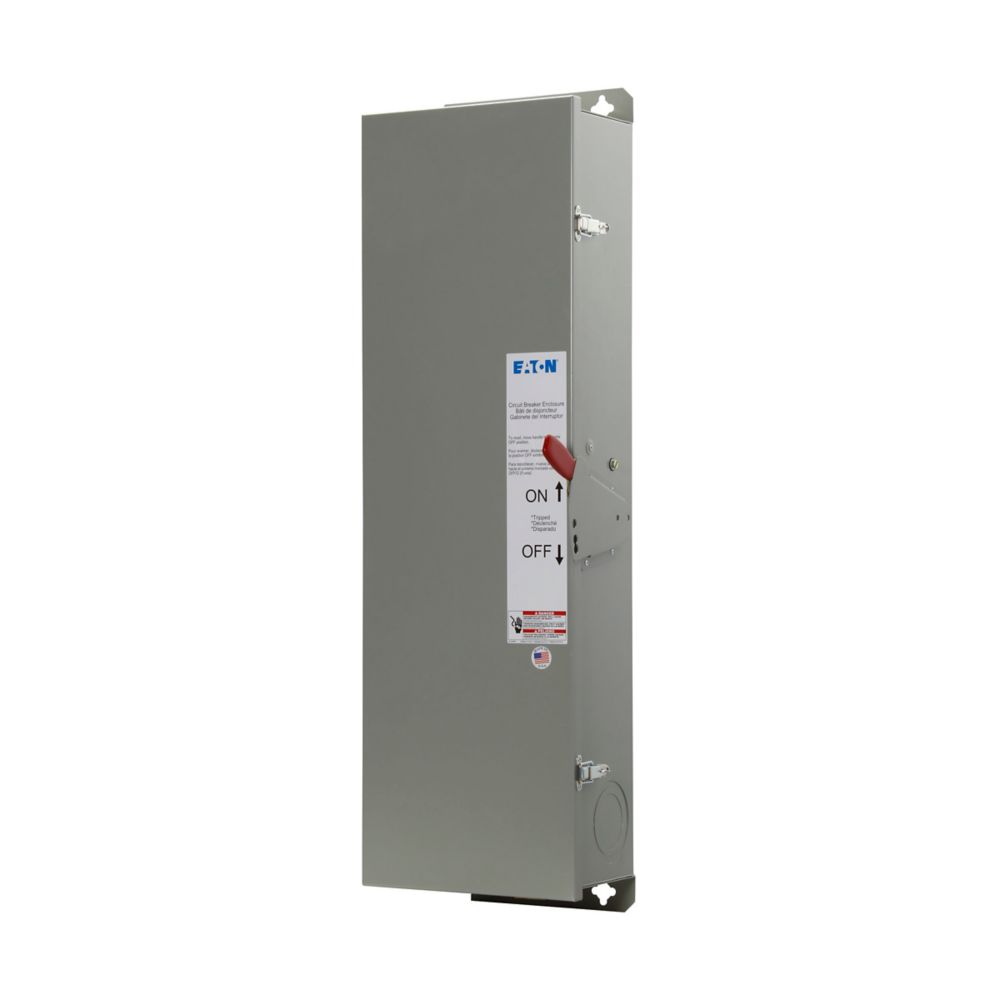

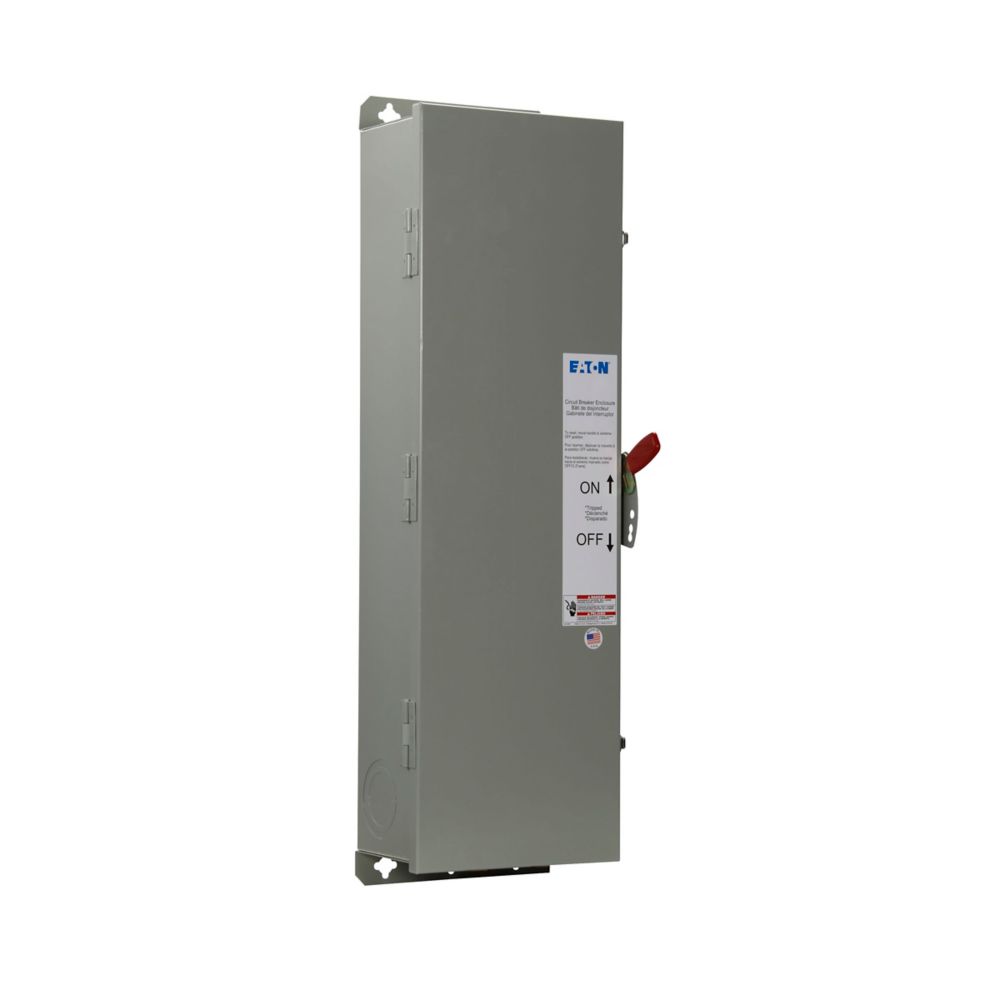

The Eaton RJDN250 is an enclosed circuit breaker designed to provide reliable protection and safe power distribution in commercial and industrial electrical systems. Eaton RJDN250 integrates a durable enclosure with compatible breaker types to ensure secure operation in indoor and outdoor environments. It is engineered for applications requiring dependable circuit protection with flexible installation options.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
RJDN250 |
| Subcategory |
Enclosed Circuit Breakers |
| Product Type |
Enclosed circuit breaker |
| Series |
Series C |
| Amperage Rating |
125–250 A |
| Circuit Breaker Type |
JD, JDB, HJD, JDC |
| Enclosure Type |
NEMA 3R |
| Mounting Method |
Surface mounting |
| Enclosure Features |
With knockouts |
| Certifications |
UL Listed, CSA Certified |
| Product Length/Depth |
10.22 in |
| Product Height |
37.5 in |
| Product Width |
11.88 in |
| Weight |
37 lb |
Information About RJDN250
The RJDN250 is part of Eaton’s Series C line, built to accommodate multiple molded case circuit breaker types including JD, JDB, HJD, and JDC. It features a NEMA 3R enclosure, offering protection against environmental conditions such as rain and dust for outdoor use. Designed for surface mounting, this enclosed breaker unit supports amperage ranges from 125 A to 250 A, making it suitable for a variety of distribution applications. The enclosure includes knockouts to simplify wiring and installation, enhancing flexibility in system integration.
Key Features:
- Series C Compatibility: Supports JD, JDB, HJD, and JDC breaker types for versatile applications.
- Enclosed Design: Provides integrated protection and safety for electrical distribution systems.
- NEMA 3R Enclosure: Suitable for indoor and outdoor use with weather-resistant protection.
- Amperage Range: Handles circuits from 125 A to 250 A for flexible system requirements.

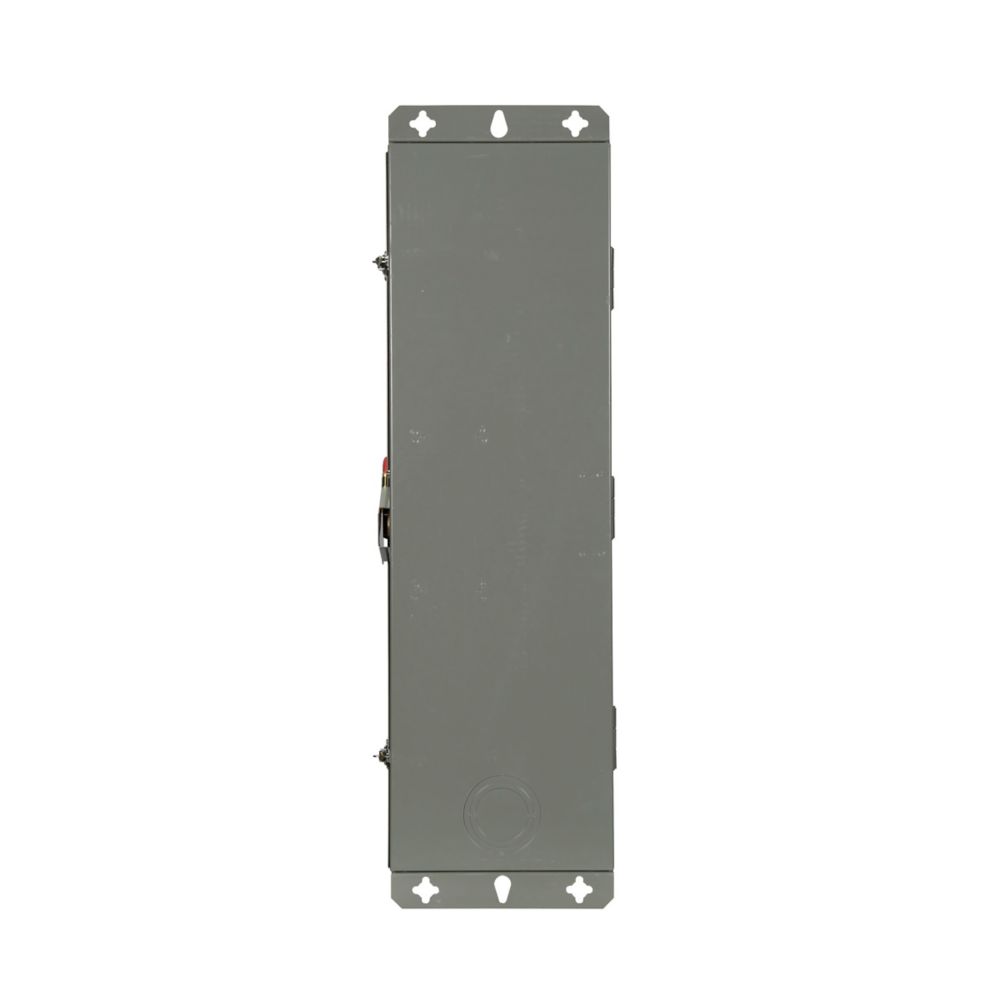

- Surface Mounting: Enables straightforward installation on walls or panels.

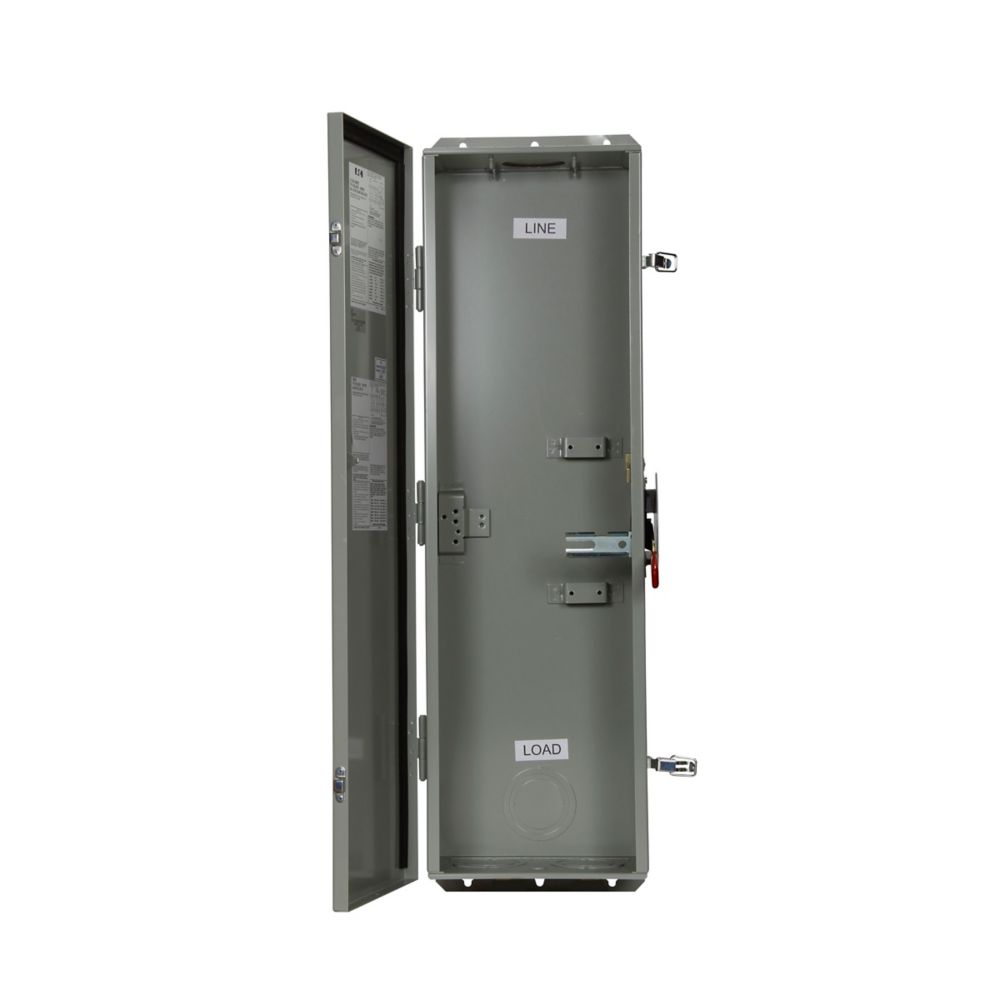

- Knockout Configuration: Facilitates easy conduit entry and wiring setup.
- UL and CSA Certified: Meets recognized safety and performance standards.
- Durable Construction: Built for long-term reliability in demanding environments.
The RJDN250 delivers the reliability and precision required for safe and efficient enclosed circuit breaker installations in commercial and industrial power systems.
