Description

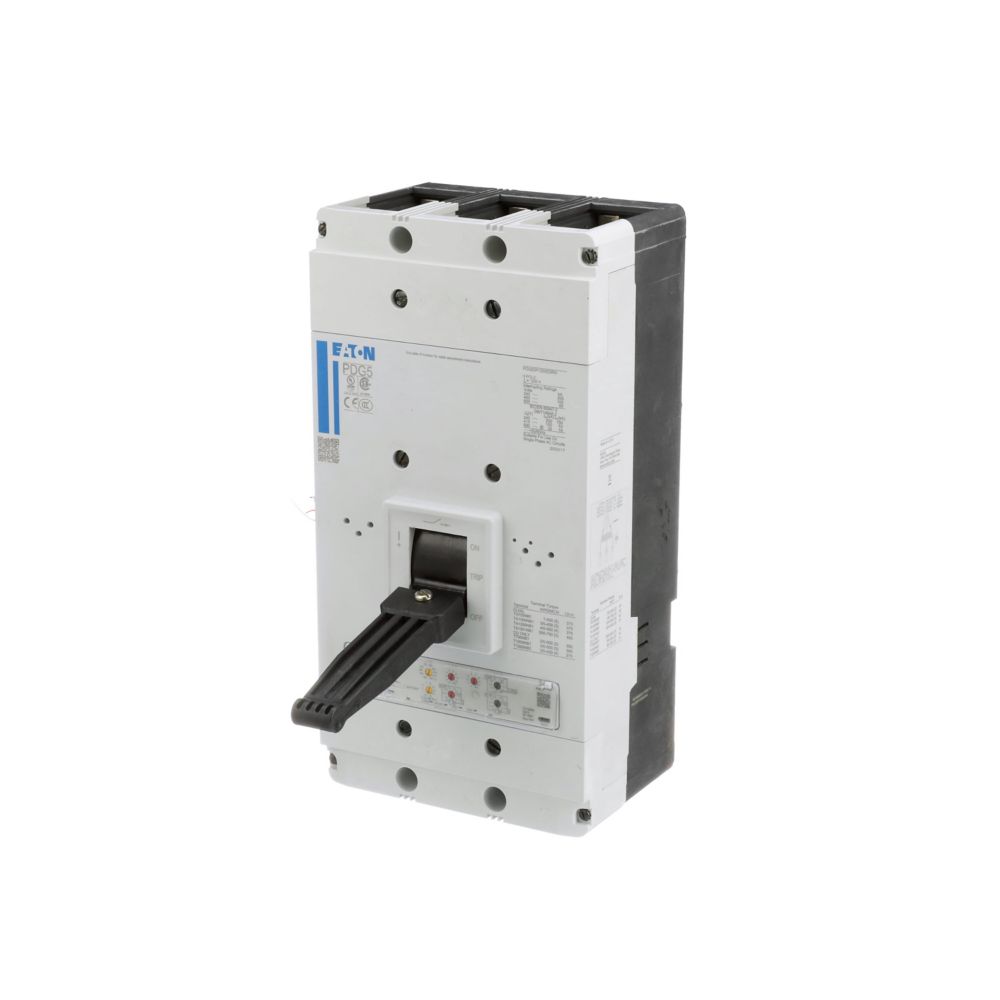

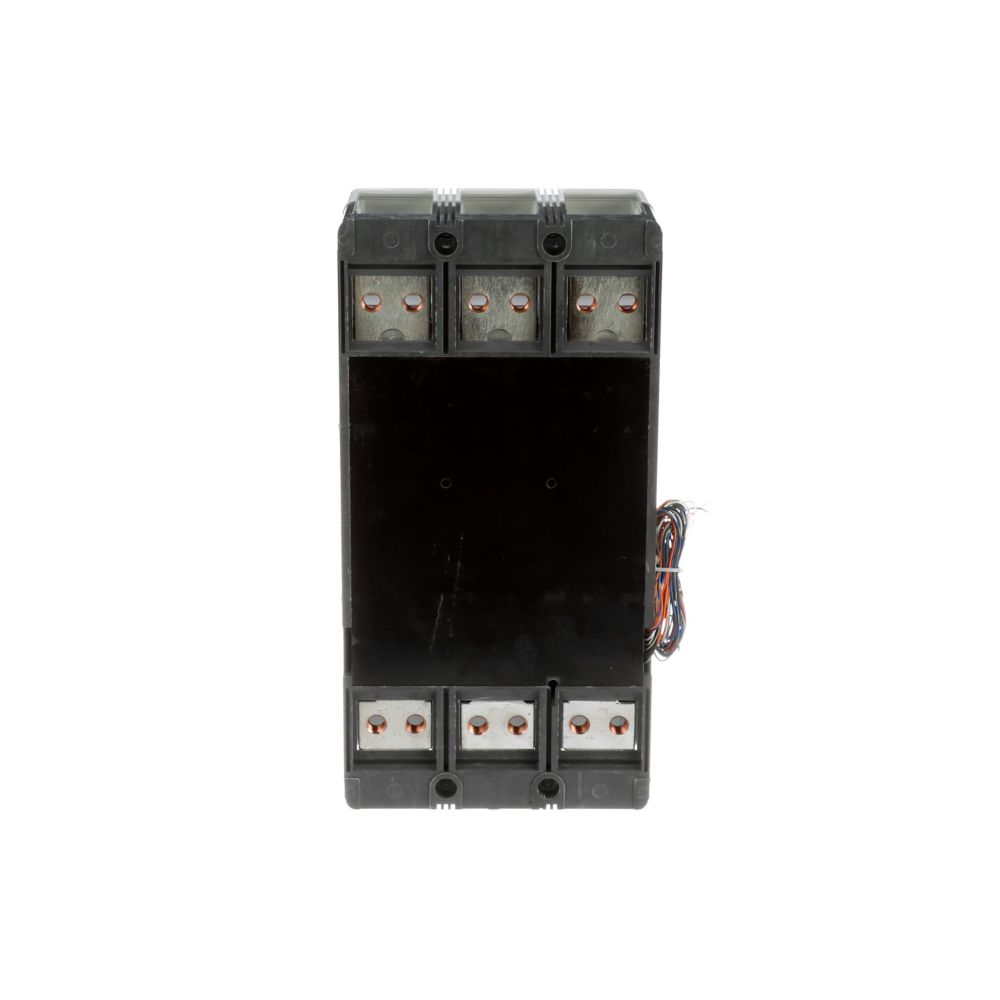

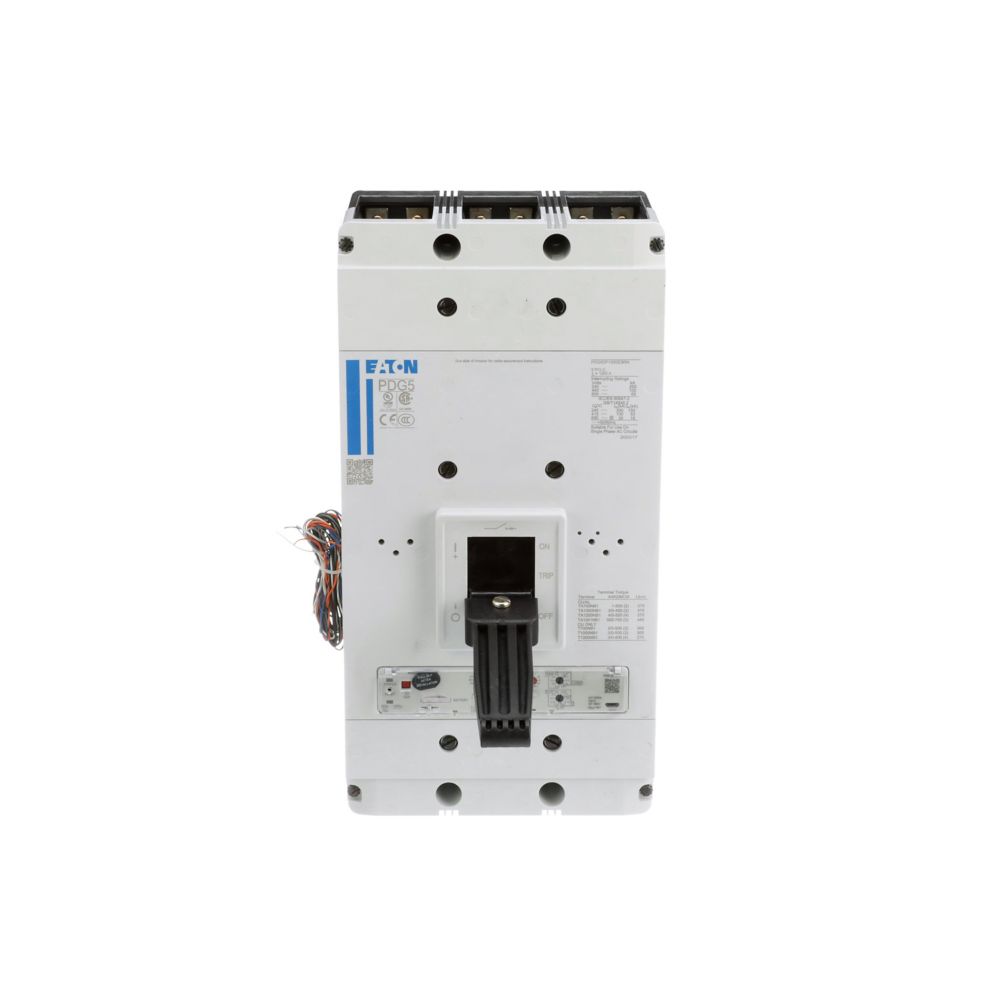

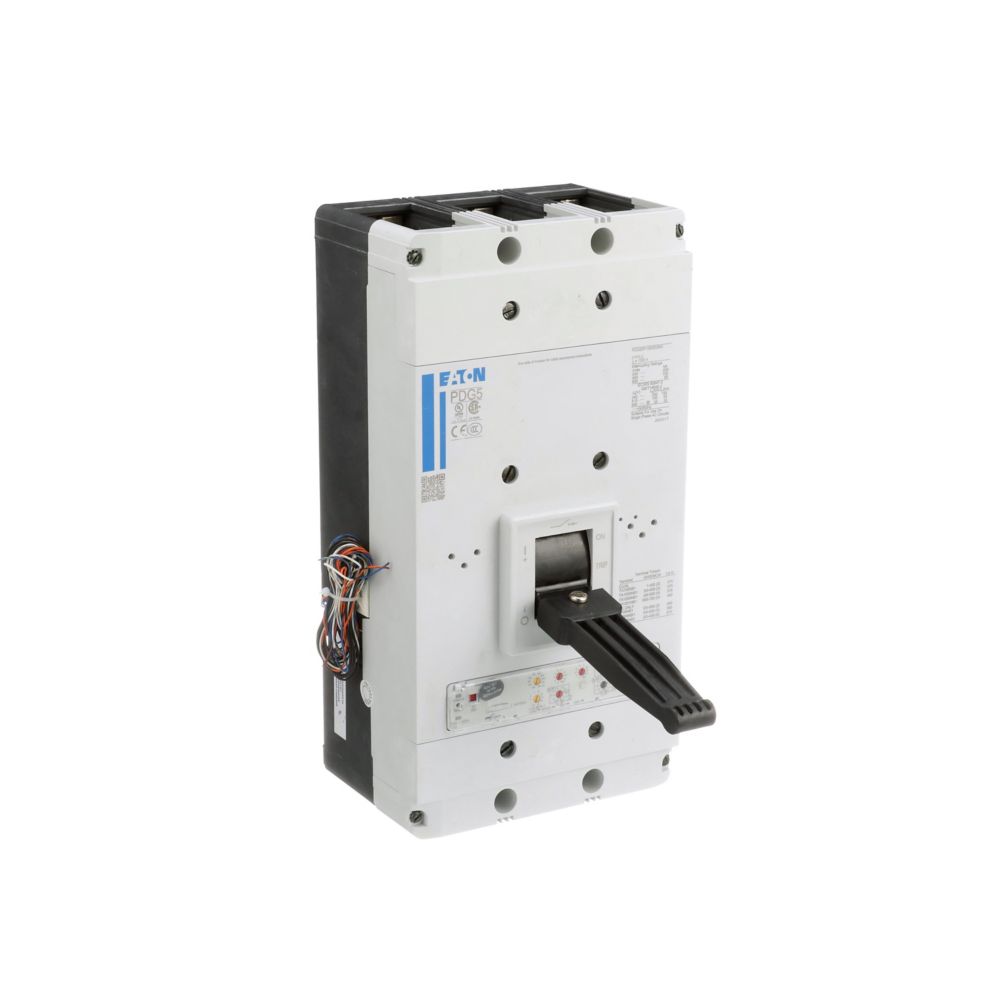

The Eaton PDG53M1200E3RN is a high-capacity Power Defense molded case circuit breaker engineered for reliable protection in demanding electrical distribution systems. Eaton PDG53M1200E3RN features a 1200 A rating with advanced trip technology to ensure precise fault detection and interruption. It is designed for industrial and commercial applications requiring robust performance and consistent system protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
PDG53M1200E3RN |
| Subcategory |
Molded Case Circuit Breakers |
| Product Type |
Molded case circuit breaker |
| Series |
Power Defense PD5 Global |
| Frame |
Frame 5 |
| Circuit Breaker Type |
PD5 Global |
| Frame Type |
Complete breaker |
| Amperage Rating |
1200 A |
| Trip Type |
T285 |
| Trip Rating |
1200 A |
| Number of Poles |
Three-pole |
| Voltage Rating |
600 Vac |
| Interrupt Rating |
65 kAIC at 480 Vac |
| Interrupt Rating (UL) |
100 kAIC at 240 V; 35 kAIC at 600/347 V |
| Terminals |
No terminals |
| Certifications |
UL 489, IEC 60947-2, CSA, CCC |
| Compliances |
RoHS Compliant |
| Product Length/Depth |
5.5 in |
| Product Height |
16 in |
| Product Width |
8.24 in |
| Weight |
44.35 lb |
Information About PDG53M1200E3RN
The PDG53M1200E3RN is part of Eaton’s Power Defense PD5 Global series, built for high-performance power distribution and global compliance. It utilizes a Frame 5 construction with a three-pole configuration, supporting large-scale electrical systems and switchgear assemblies. Equipped with a T285 trip unit, the breaker provides advanced protection characteristics, including precise overload and short-circuit response. Its compliance with UL, IEC, CSA, and CCC standards ensures compatibility across a wide range of international installations and regulatory environments.
Key Features:
- Power Defense PD5 Series: Designed for high-capacity industrial and commercial power systems.
- 1200 A Current Rating: Supports heavy-load electrical distribution applications.
- T285 Trip Unit: Advanced protection for accurate fault detection and response.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 Vac for effective fault clearing.
- Three-Pole Design: Suitable for three-phase power systems.
- Global Compliance: Meets UL 489, IEC 60947-2, CSA, and CCC standards.
- Frame 5 Construction: Provides durability and scalability for large installations.
- Terminal-Free Configuration: Allows flexible connection options for custom installations.
The PDG53M1200E3RN delivers the reliability and precision required for protecting high-capacity electrical distribution systems in industrial environments.
