Description

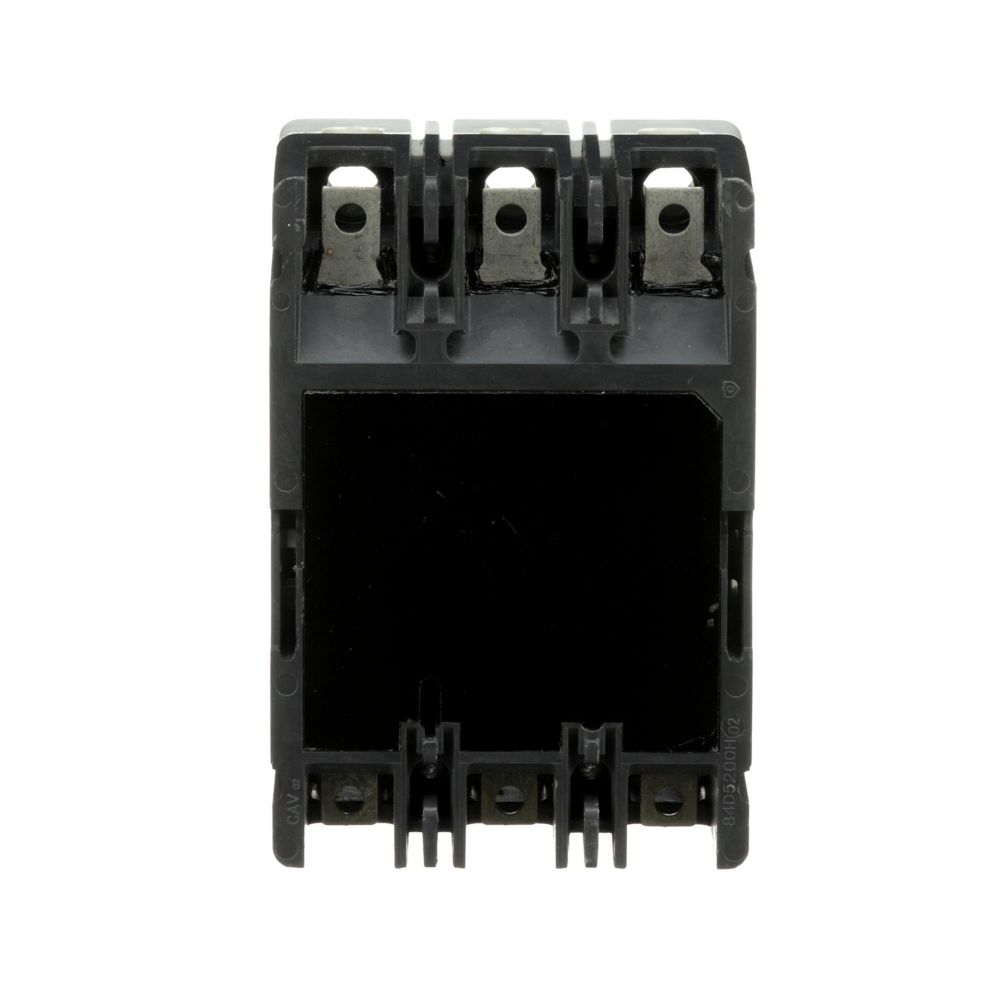

The Eaton PDG23M0175TFFL is a Power Defense molded case circuit breaker designed to provide dependable protection for commercial and industrial electrical distribution systems. Eaton part number PDG23M0175TFFL features a 175 A rating, three-pole configuration, and advanced electronic trip protection for precise fault response. Its robust design and high interrupting capacity ensure reliable performance in demanding power distribution applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
PDG23M0175TFFL |
| Subcategory |
Molded Case Circuit Breaker |
| Product Type |
Molded case circuit breaker |
| Series |
Power Defense |
| Circuit Breaker Type |
PD2 Global |
| Frame |
2 |
| Circuit Breaker Frame Type |
Complete breaker |
| Class |
Class A |
| Amperage Rating |
175 A |
| Voltage Rating |
600 Vac |
| Trip Type |
T298 |
| Number of Poles |
Three-pole |
| Terminals |
Standard terminals, load only |
| Interrupt Rating |
65 kAIC at 480 Vac |
| Additional Interrupt Ratings |
100 kAIC @240V (UL); 25 kAIC @600V (UL/CSA); 22 kAIC @125–250 Vdc |
| Certifications |
UL 489, CSA, IEC 60947-2, CCC Marked |
| Compliance |
RoHS Compliant |
| Dimensions (L × W × H) |
88.9 × 104.6 × 152.4 mm |
| Warranty |
Eaton Selling Policy 25-000 |
| Weight |
1.82 kg |
Information About PDG23M0175TFFL
The PDG23M0175TFFL is a complete molded case circuit breaker from Eaton’s Power Defense PD2 Global series, engineered for advanced circuit protection and operational reliability. Built on the Frame 2 platform, it integrates a T298 electronic trip unit that delivers accurate response to overload and short-circuit conditions. The breaker is rated for systems up to 600 Vac and is designed with standard load-side terminals to simplify installation and maintenance. With global certifications including UL 489, CSA, IEC 60947-2, and CCC compliance, it meets international standards for safety and electrical protection.
Key Features:
- 175 Amp Current Rating: Provides dependable protection for feeders and branch circuits in commercial and industrial power systems.
- Power Defense PD2 Global Platform: Designed with Eaton’s advanced protection technology for improved reliability and performance.
- T298 Electronic Trip Unit: Offers accurate sensing of overload and short-circuit faults for enhanced circuit protection.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 Vac for reliable interruption of high fault currents.
- Three-Pole Configuration: Suitable for three-phase electrical distribution systems.
- Load-Side Standard Terminals: Simplifies installation and wiring in electrical panels and switchgear.
- Global Safety Certifications: UL 489, CSA, IEC 60947-2, and CCC approvals ensure compliance with international standards.
- Compact Frame 2 Design: Optimized for space-efficient installation in modern electrical distribution equipment.
The PDG23M0175TFFL delivers the reliability and precision required for protecting commercial and industrial power distribution systems.
