Description

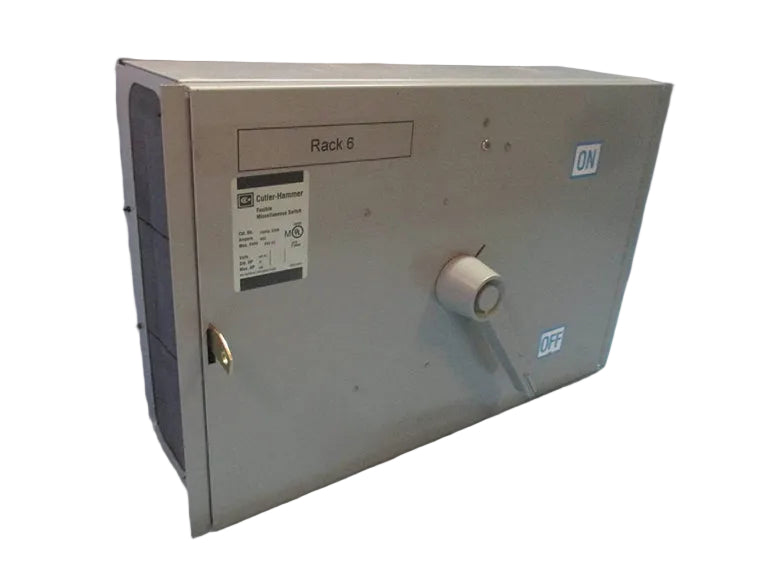

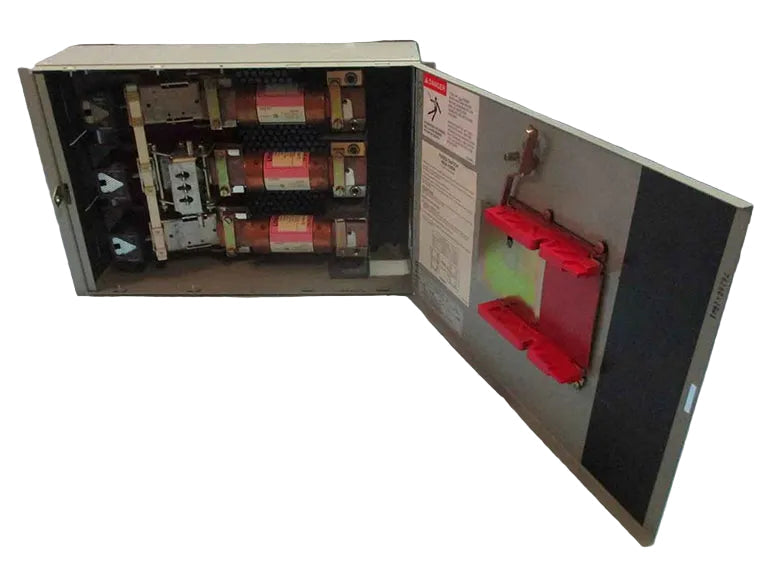

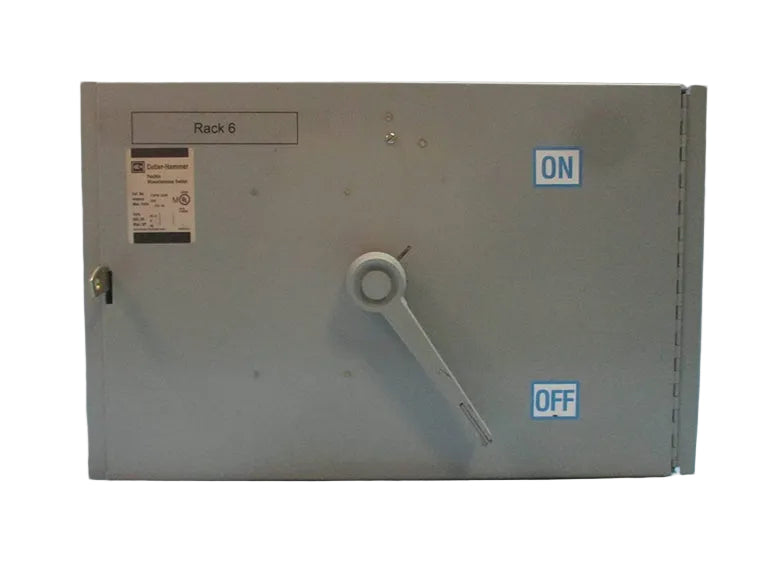

The Eaton FDPW326R is a 600 A, 240 V 3‑phase panel board switch designed for commercial and industrial electrical distribution. This fusible switch provides reliable overcurrent protection and manual circuit control. It is intended for integration into panel-mounted electrical systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Electrical Distribution |
| Part Number |
FDPW326R |
| Subcategory |
Panelboard Switches |
| Series |
FDPW |
| Amperage |
600 A |
| Voltage |
240 V AC |
| Poles |
3 |
| Phase |
3 |
| Mounting Type |
Panel |
| Interrupting Rating |
200 kA @ 240 V |
| Switch Style |
Fusible |
| Suitable Fuses |
R, H, K |
| NEMA Rating |
1 |
| Configuration |
Single |
| Frame Type |
FDP |
| Dimensions (L x W x H) |
25 x 16.5 x 10.5 in |
| Weight |
95 lbs |
Information About FDPW326R
The FDPW326R is part of Eaton’s FDP series, engineered for high-current applications with UL approval for safety compliance. It features a single-configuration 3-pole design with an interrupting rating of 200 kA at 240 V. The switch supports R, H, or K fuses and is suitable for indoor installations with a NEMA 1-rated enclosure. Key technologies include robust mechanical construction, fusible protection, and flexible mounting for panelboard integration.
Key Features:
- Series FDP: Part of Eaton’s reliable FDP panelboard switch family.
- Amperage Rating: 600 A for heavy-duty electrical applications.
- Voltage Rating: 240 V AC for standard 3-phase systems.
- Poles: 3-pole configuration for full three-phase control.
- Interrupting Rating: 200 kA @ 240 V for high short-circuit protection.
- Mounting Type: Panel-mounted for secure installation.
- Switch Style: Fusible for circuit protection using R, H, or K fuses.
- UL Approved: Ensures compliance with industry safety standards.
The FDPW326R delivers the protection and reliability required for commercial and industrial panelboard applications.
