Description

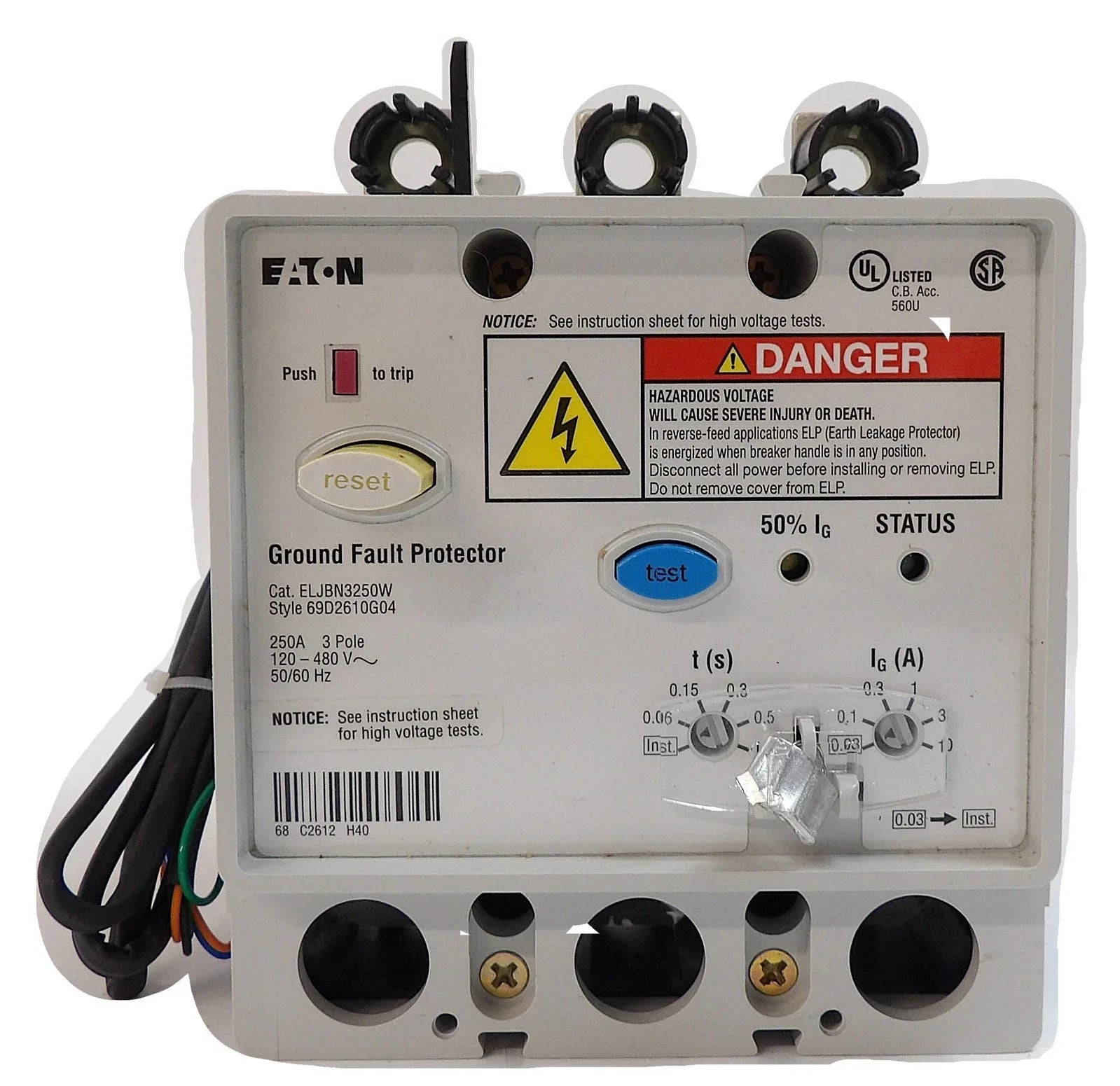

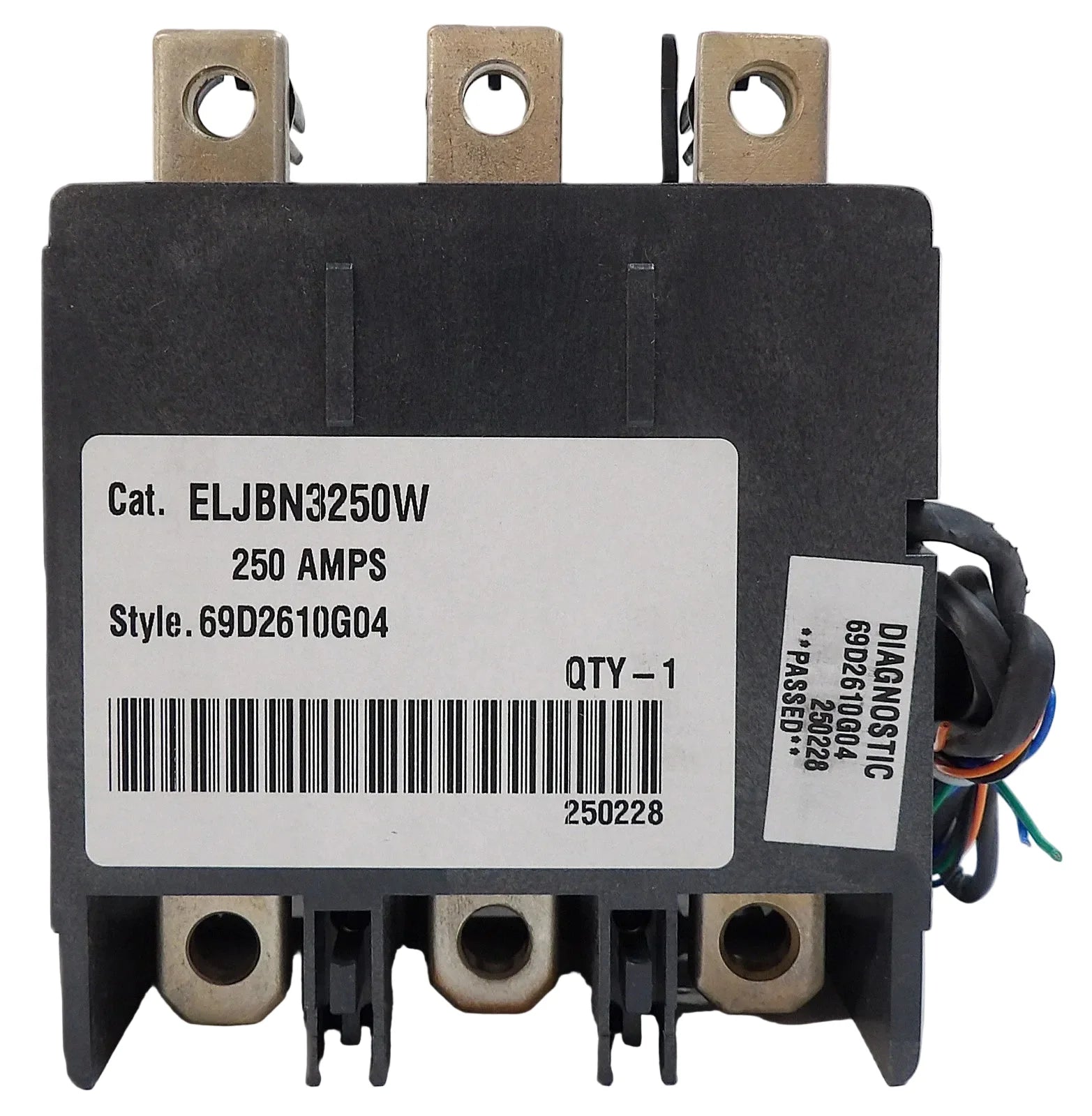

The Eaton ELJBN3250W earth leakage module is a Series G molded case circuit breaker accessory designed for JG-frame three-pole breaker systems rated at 250A and 480VAC. Engineered for ground fault and earth leakage protection, the module enhances electrical safety in commercial and industrial power distribution applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breakers |
| Part Number |
ELJBN3250W |
| Subcategory |
Ground Fault Modules |
| Series |
Series G |
| Product Type |
Molded Case Circuit Breaker Accessory |
| Class |
Earth Leakage |
| Accessory Type |
Earth Leakage Module |
| Frame Type |
JG-Frame |
| Circuit Breaker Type |
Complete Breaker |
| Current Rating |
250A |
| Voltage Rating |
480VAC |
| Frequency Rating |
50/60 Hz |
| Pole Configuration |
Three-Pole |
| Mounting Method |
Bottom Mounted |
| Terminals |
Without Terminals |
| Certifications |
UL Listed |
| Product Length/Depth |
3.57 in |
| Product Height |
4.13 in |
| Product Width |
4.13 in |
| Weight |
3.0 lb |
Information About ELJBN3250W
The ELJBN3250W is an Eaton Series G earth leakage module developed for use with JG-frame molded case circuit breaker systems in demanding electrical distribution environments. Designed as a complete breaker accessory, the module provides earth leakage and ground fault protection to help detect fault currents and improve system safety. The unit supports three-pole 250A applications operating at 480VAC and is intended for installation in commercial and industrial power systems requiring advanced protective functionality. Its bottom-mounted configuration and UL Listed certification support reliable integration into Eaton molded case breaker assemblies used in low-voltage distribution networks.
Key Features:
- Series G Compatibility: Designed for Eaton Series G molded case circuit breaker systems.
- Earth Leakage Protection: Provides detection and protection against leakage current conditions.
- Ground Fault Module Design: Enhances electrical safety within power distribution systems.
- JG-Frame Integration: Engineered for compatible JG-frame breaker assemblies.
- 250A Current Rating: Supports medium-capacity industrial and commercial electrical applications.
- Three-Pole Configuration: Designed for three-phase power distribution systems.
- 480VAC Operation: Rated for use in 480VAC electrical networks at 50/60 Hz.
- Bottom-Mounted Installation: Allows secure attachment to compatible breaker assemblies.
The ELJBN3250W delivers the reliability and precision required for ground fault protection and electrical distribution safety applications.
