Description

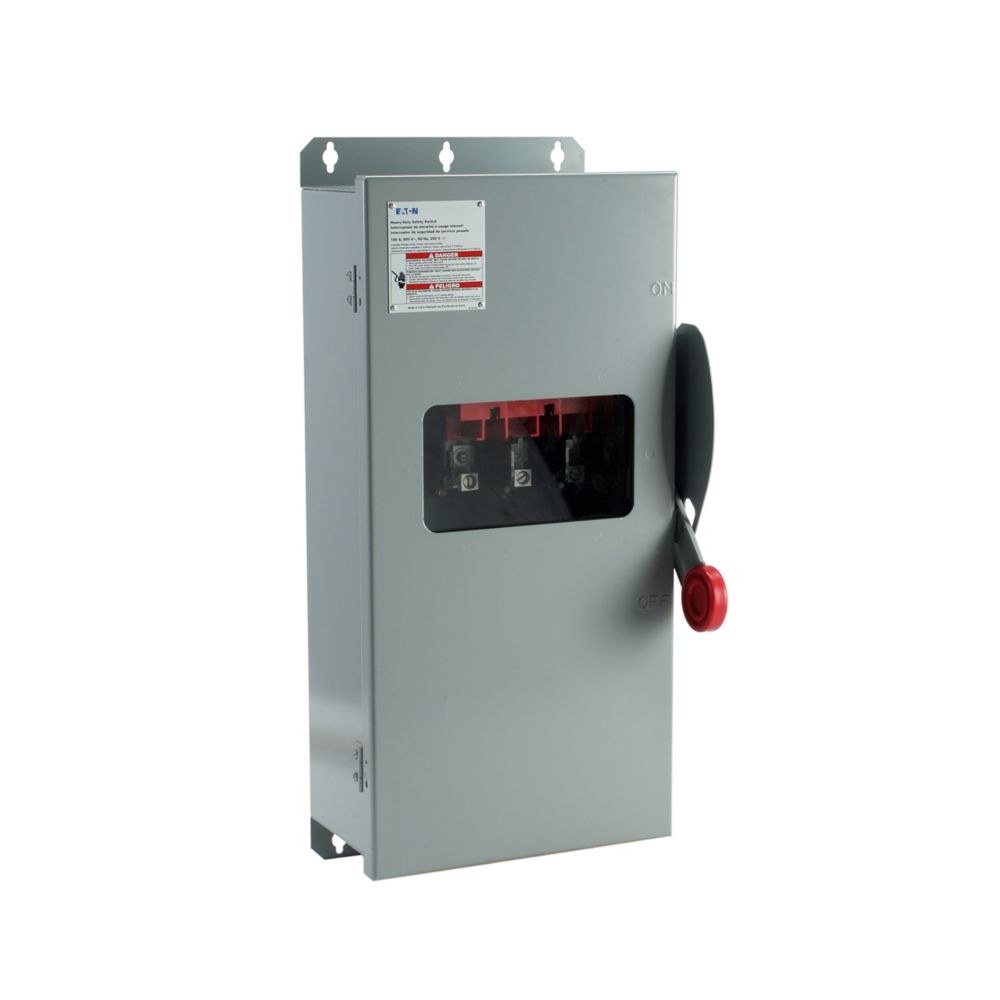

The Eaton DH365FDKW is a heavy-duty fusible safety switch designed for reliable disconnect and protection of electrical circuits in demanding environments. Eaton DH365FDKW provides a 400 A rating with support for Class H fuses, ensuring safe isolation and fault protection. It is commonly used in industrial facilities and outdoor installations requiring durable and secure power control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Power Distribution |
| Part Number |
DH365FDKW |
| Subcategory |
Safety Switches |
| Product Type |
Heavy duty fusible safety switch |
| Amperage Rating |
400 A |
| Voltage Rating |
600 V |
| Number of Poles |
Three-pole |
| Number of Wires |
3 |
| Fuse Class Provision |
Class H |
| Fuse Configuration |
Fusible without neutral |
| Enclosure Rating |
NEMA 12 / NEMA 3R |
| Enclosure Material |
Painted galvanized steel |
| Horsepower Rating |
250–350 hp (3-phase at 480/600 V) |
| Certifications |
UL Listed |
| Product Length/Depth |
64 in |
| Product Height |
13 in |
| Product Width |
25.5 in |
| Weight |
123 lb |
Information About DH365FDKW

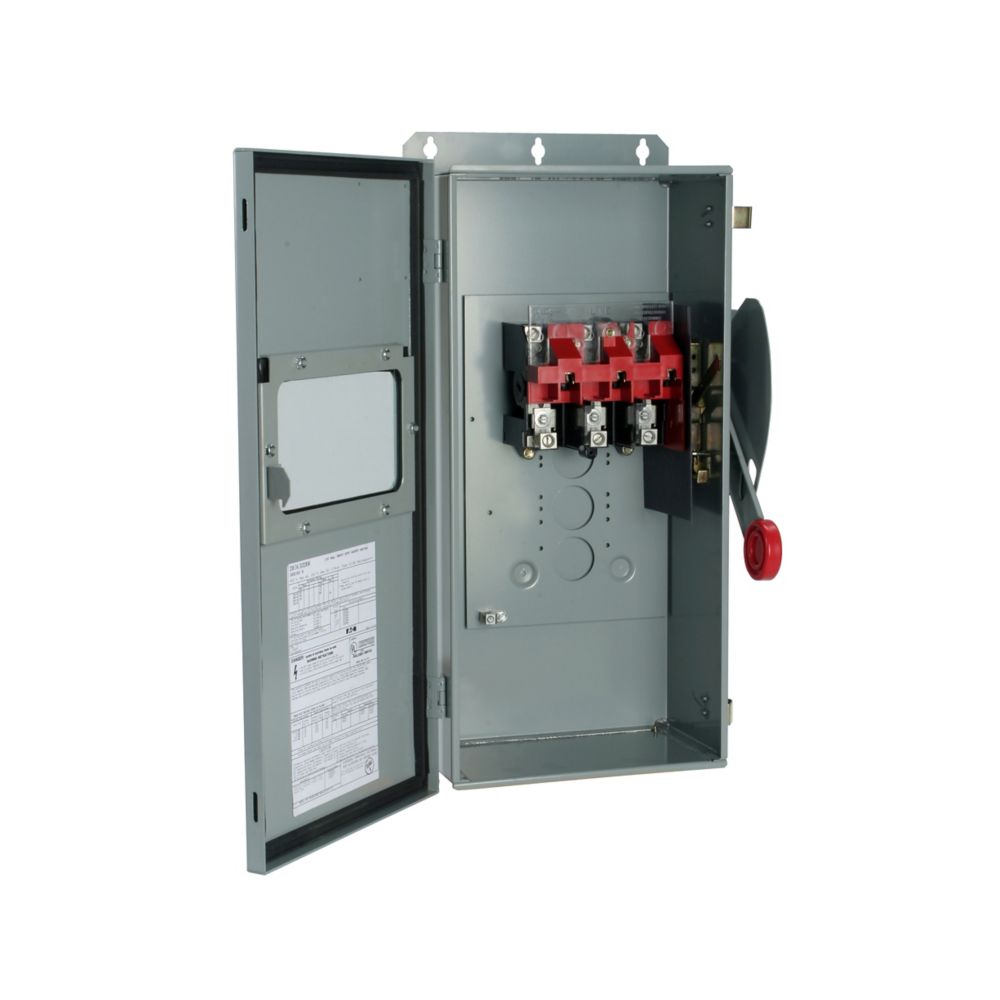

The DH365FDKW is part of Eaton’s heavy-duty safety switch lineup, engineered for high-performance disconnect applications. It features a robust painted galvanized steel enclosure rated NEMA 12/3R, allowing both indoor and outdoor use with protection against dust, moisture, and harsh conditions. This three-pole fusible switch is configured without a neutral and is designed to accommodate Class H fuses for reliable overcurrent protection. Built for industrial power systems, it supports high horsepower loads and is widely used in motor control, service entrance, and distribution applications.
Key Features:
- Heavy-Duty Construction: Built with rugged materials for long-term reliability in industrial environments.
- 400 A Current Rating: Suitable for high-capacity power distribution and disconnect applications.
- Fusible Design: Supports Class H fuses for effective overcurrent protection.
- NEMA 12/3R Enclosure: Provides protection for both indoor and outdoor installations.
- Three-Pole Configuration: Designed for three-phase electrical systems.
- High Horsepower Capability: Rated up to 350 hp at 480/600 V for motor applications.
- Galvanized Steel Enclosure: Enhances durability and resistance to corrosion.
- UL Listed Certification: Meets recognized safety and performance standards.
The DH365FDKW delivers the reliability and precision required for safe power isolation and protection in industrial and commercial electrical systems.
