Description

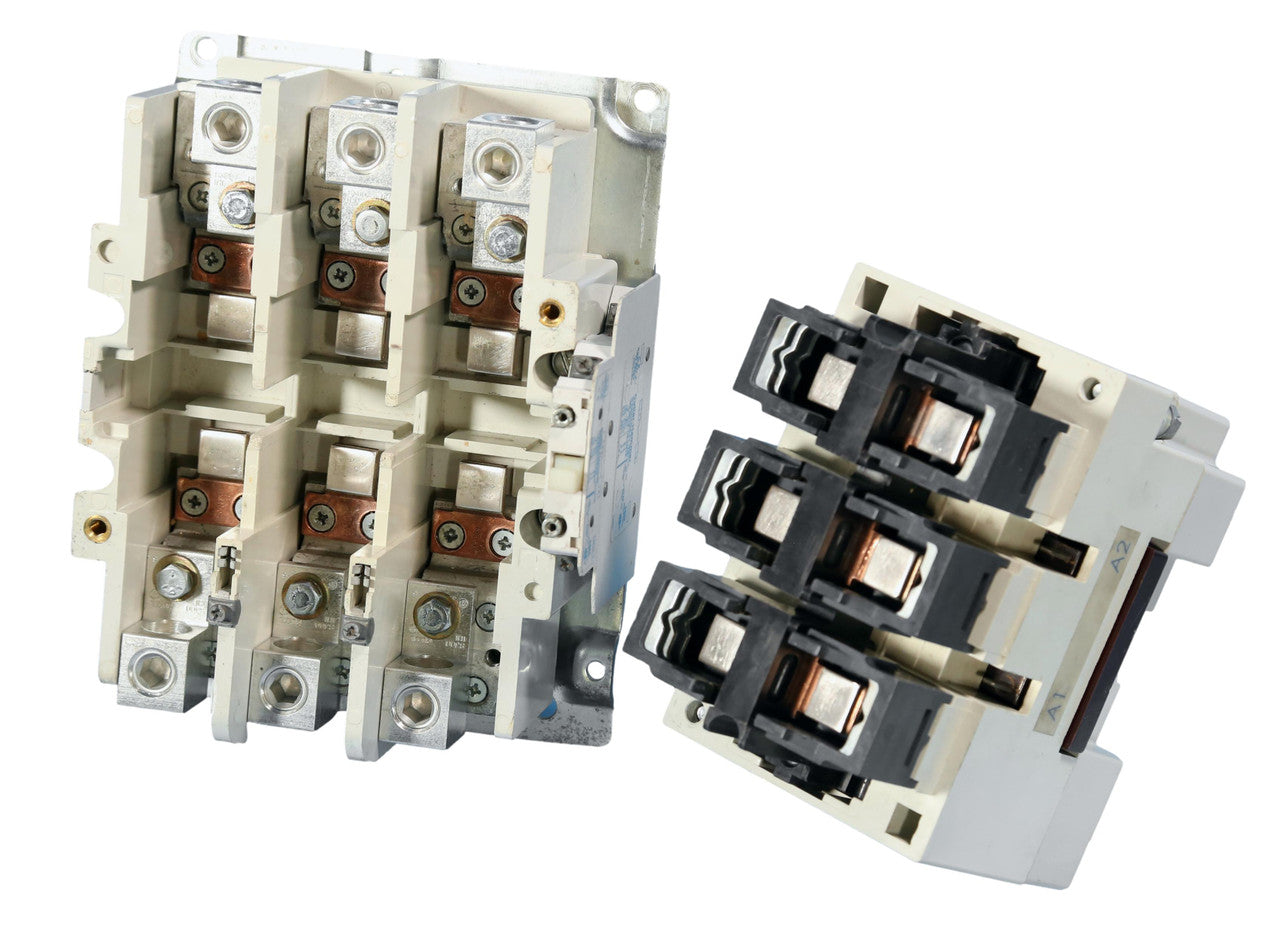

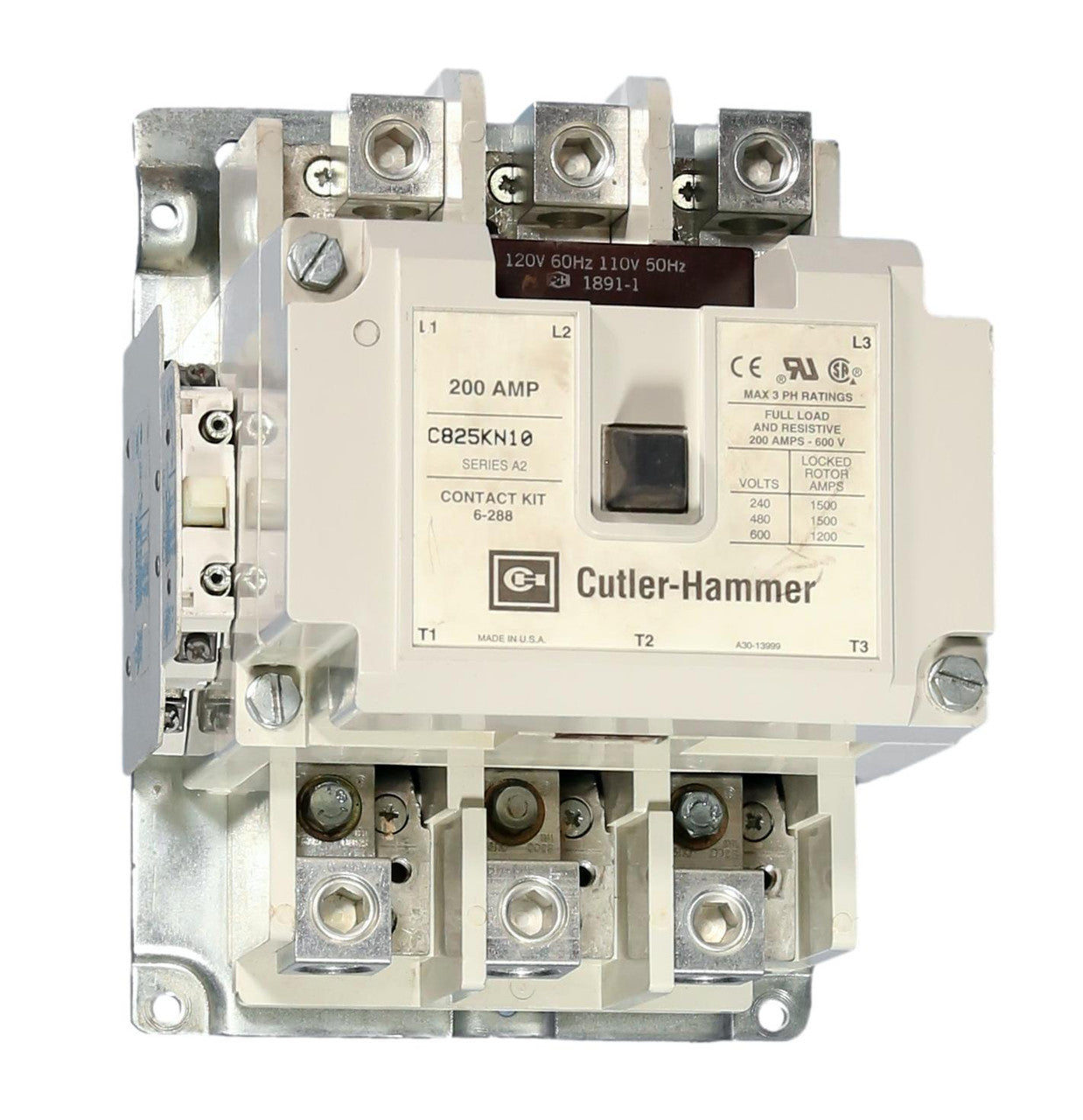

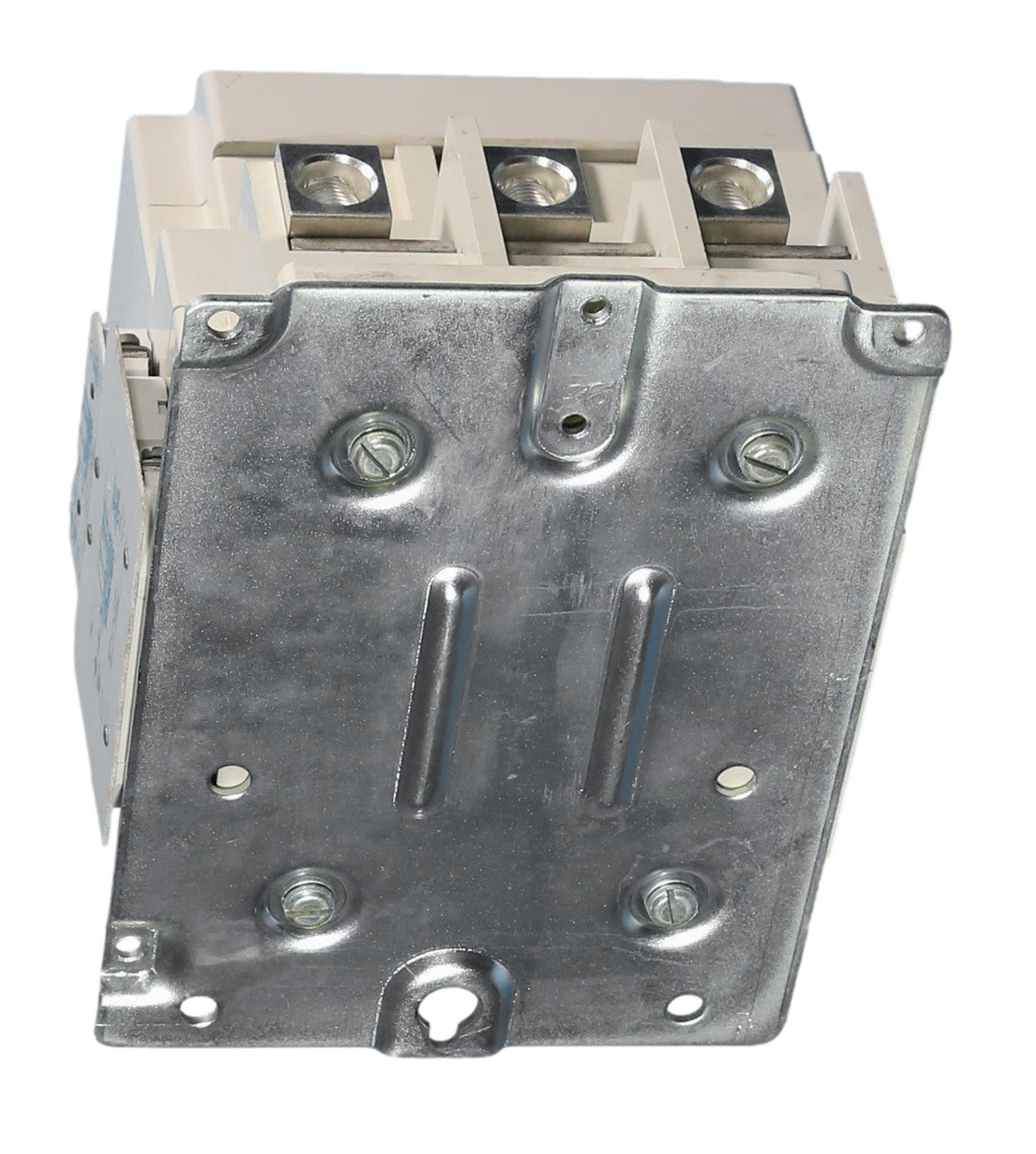

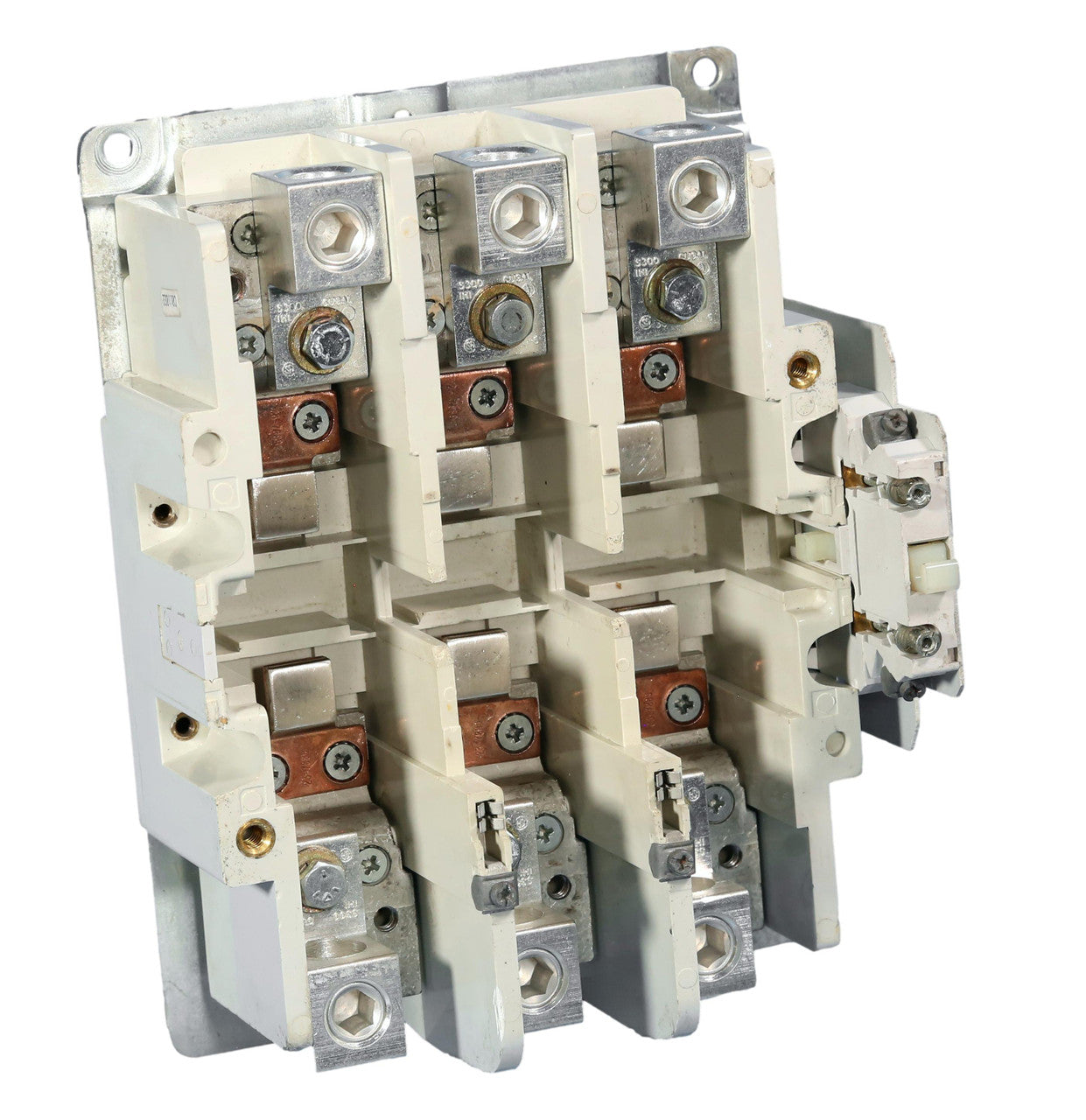

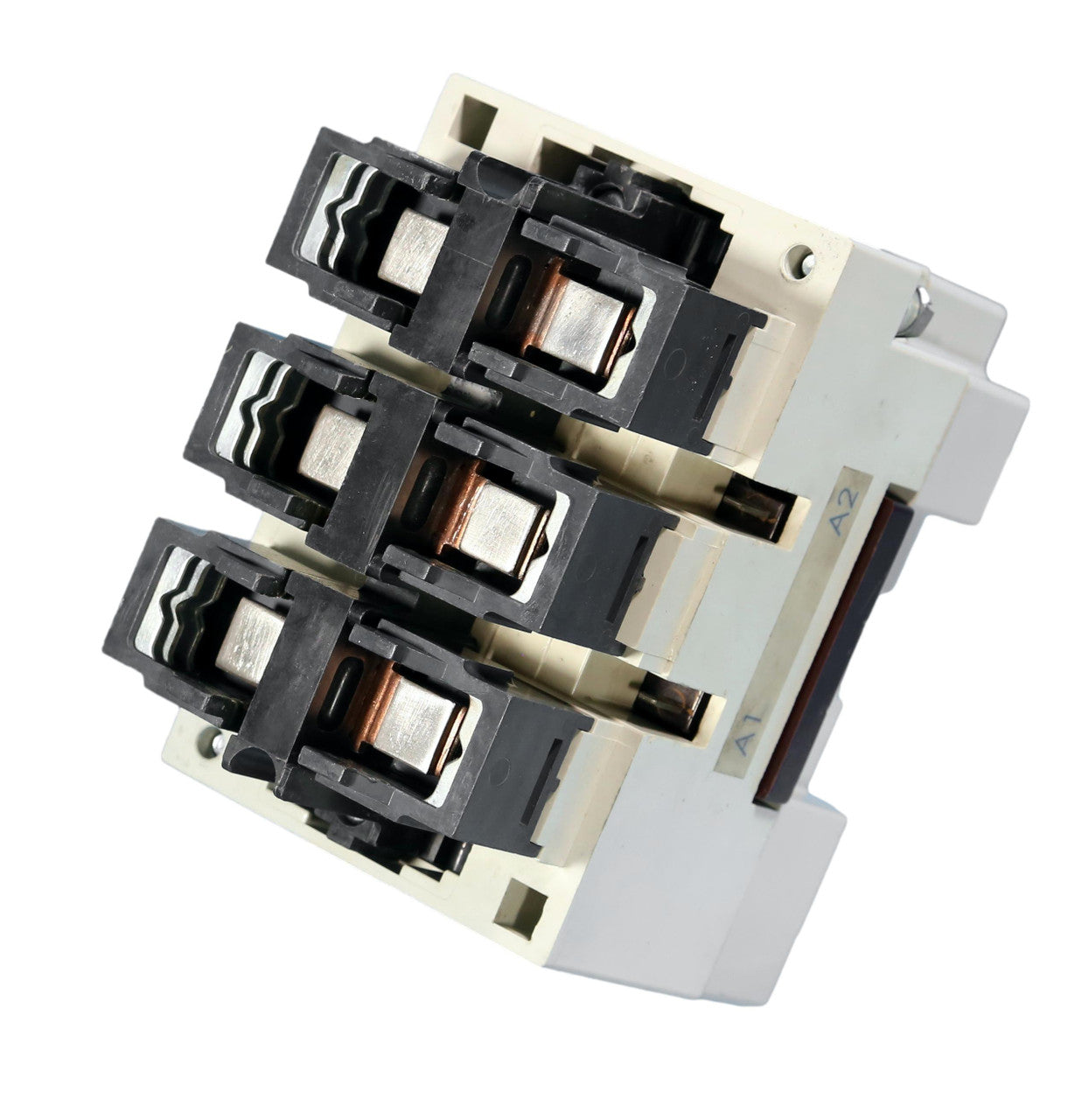

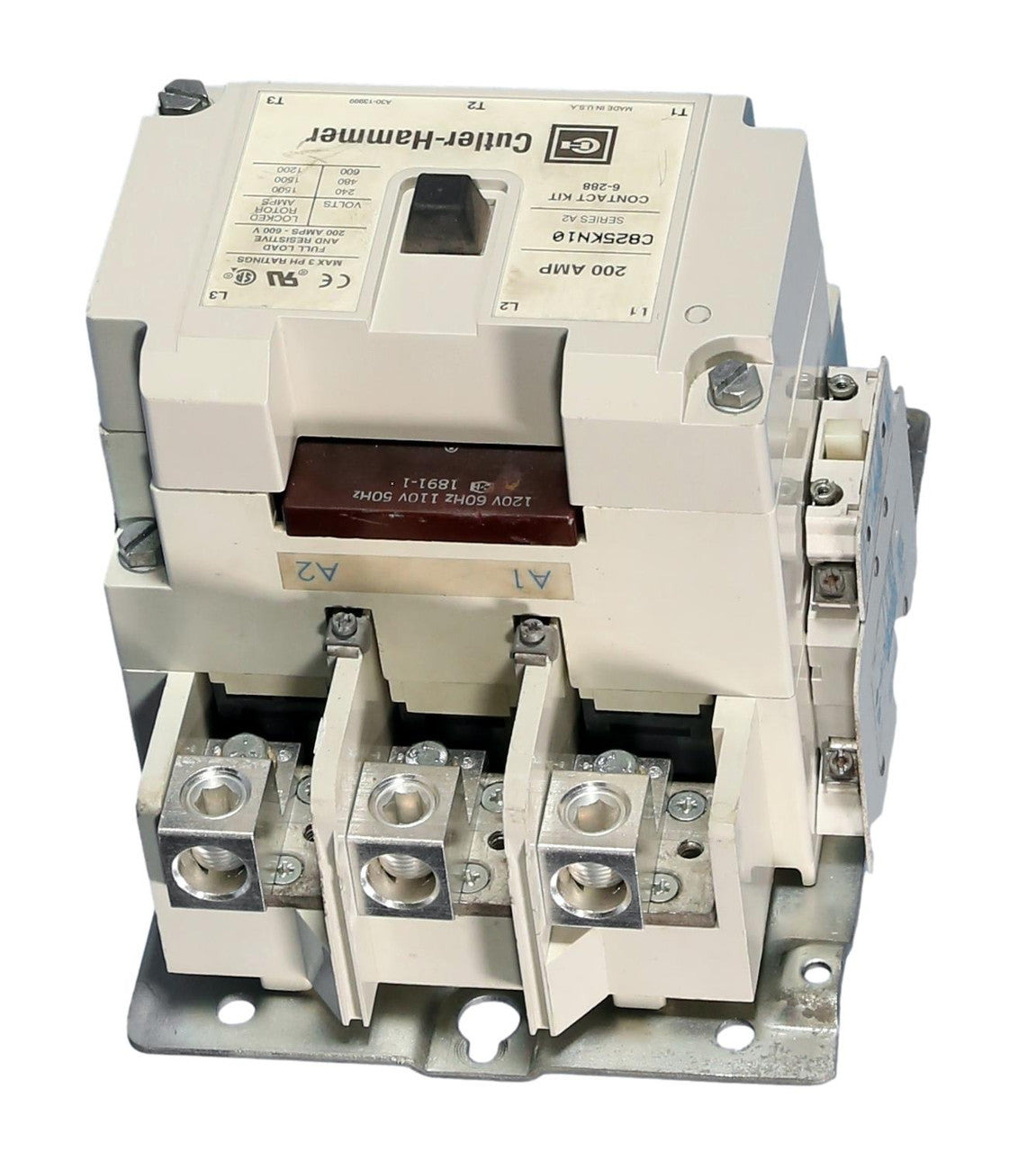

The Eaton C825KN10 is a NEMA Size 4 electromagnetic contactor designed for switching high-current industrial loads in demanding motor control applications. Rated at 200 amps with a 3-pole configuration, it delivers reliable performance for commercial and industrial electrical systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Part Number |
C825KN10 |
| Category |
Industrial Control |
| Subcategory |
Contactor |
| Product Type |
Electromagnetic Contactor |
| NEMA Size |
4 |
| Current Rating |
200 A |
| Pole Configuration |
3-Pole |
| Phase |
Three Phase |
| Maximum Voltage |
600 VAC |
| Coil Voltage |
110–120 VAC |
| Frequency |
60 Hz |
| Coil Part Number |
9-1891-1 |
| Horsepower Rating |
100 HP at 480/600 VAC |
| Mounting Type |
Chassis Mount |
| Weight |
15 lb |
Information About C825KN10
The C825KN10 is a full-voltage electromagnetic contactor manufactured by Eaton for industrial motor control and power switching applications. It is designed to remotely control three-phase motors and other high-power electrical loads in commercial and industrial environments. Featuring a NEMA Size 4 design, the contactor provides dependable switching performance under demanding operating conditions. Its rugged construction makes it suitable for control panels, pumps, compressors, HVAC equipment, and industrial automation systems.
Key Features:
- 200 Amp Current Rating: Supports high-current industrial motor and power applications.
- Three-Pole Configuration: Designed for reliable switching in three-phase electrical systems.
- Up to 600 VAC Rating: Compatible with a wide range of industrial power distribution systems.
- 110–120 VAC Coil Voltage: Operates using a standard AC control circuit at 60 Hz.
- NEMA Size 4 Design: Built for heavy-duty motor control applications.
- 100 HP Capacity: Rated for motors up to 100 HP at 480/600 VAC.
- Chassis Mount Design: Enables secure installation inside industrial control panels.
- Durable Construction: Engineered for long service life and dependable operation.
The C825KN10 delivers the reliability and performance required for efficient motor control and heavy-duty industrial switching applications.
