Description

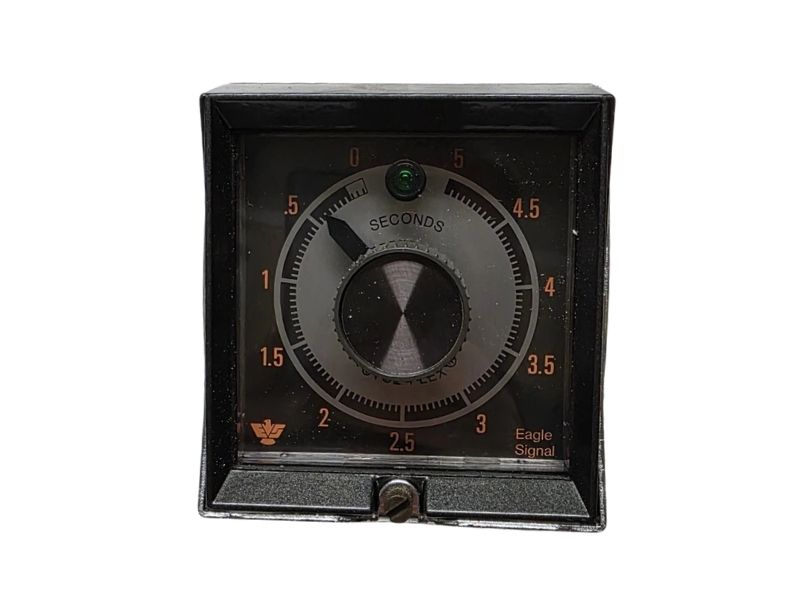

The Eagle Signal HP517A6 is a synchronous motor-driven reset timer designed for industrial timing and control applications. It operates on a 120 VAC power supply and provides an adjustable timing range of up to 5 seconds with dial-based control. This timer enables precise timing functions in automation systems, control panels, and machine operations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eagle Signal |
| Category |
Controls & Indicators |
| Part Number |
HP517A6 |
| Subcategory |
Timer/Counter |
| Series |
HP5 CYCL-FLEX |
| Timer Type |
Reset Timer |
| Timing Range |
0–5 seconds |
| Supply Voltage |
120 VAC |
| Frequency |
60 Hz |
| Output Type |
(2) SPDT Relay |
| Contact Rating |
10 A |
| Display Type |
Analog dial with progress pointer |
| Mounting Type |
Panel mount |
| Termination |

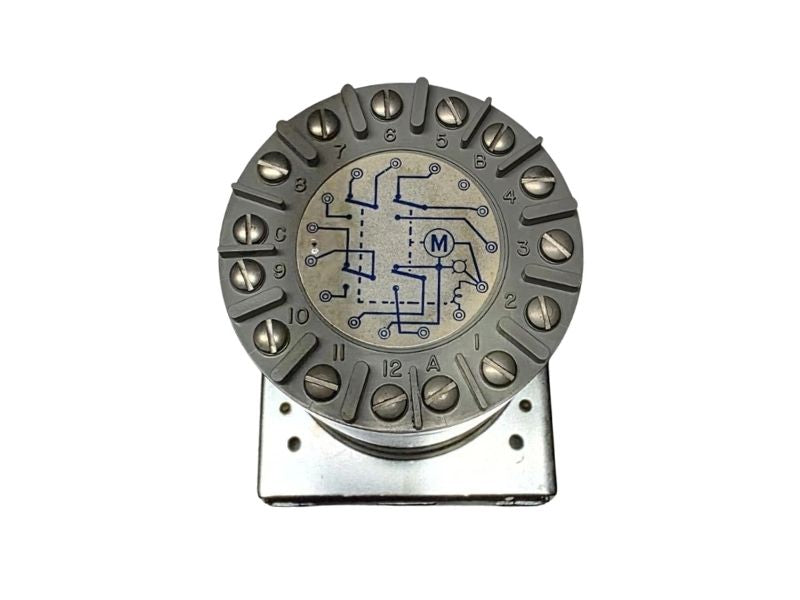

Screw terminals |
| Operating Temperature |
-18°C to 60°C |
| Approvals |
UL, CSA, FM |
| Weight |
2.00 lbs |
Information About HP517A6

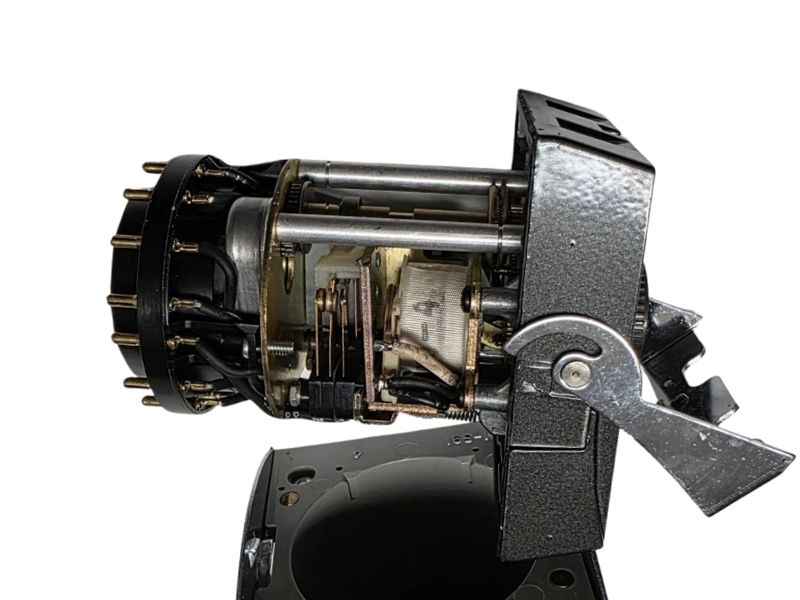

The HP517A6 is part of the Eagle Signal HP5 CYCL-FLEX series of industrial reset timers designed for reliable time-based control in electrical systems. It utilizes a synchronous motor-driven mechanism to deliver consistent and accurate timing performance. The unit features knob-adjustable timing settings and a visual progress pointer that displays the remaining time interval during operation. Built with a durable ABS molded housing and equipped with screw terminal connections, the timer is designed for panel-mounted installations in industrial control environments.
Key Features:
-
HP5 CYCL-FLEX Series Timer: Part of Eagle Signal’s industrial reset timer product line.
-
Adjustable 0–5 Second Timing Range: Provides short-cycle timing control for automation tasks.
-
Synchronous Motor Operation: Ensures accurate and stable timing performance.
-
Dual SPDT Relay Outputs: Provides switching capability for controlling external circuits.
-
Dial-Based Adjustment: Allows easy timing configuration using a front-panel control knob.
-
Visual Progress Pointer: Displays the remaining timing interval during operation.
-

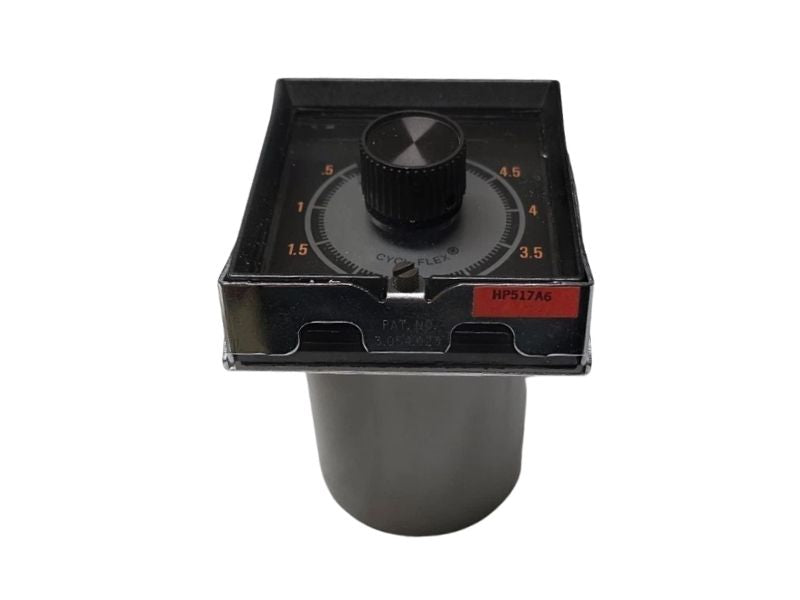

Panel Mount Construction: Designed for through-panel installation in control cabinets.
-
Status Indicator Light: Indicates when the timer motor is energized.
The HP517A6 delivers the reliability and precision required for short-cycle timing control in industrial automation and electrical control systems.
