Description

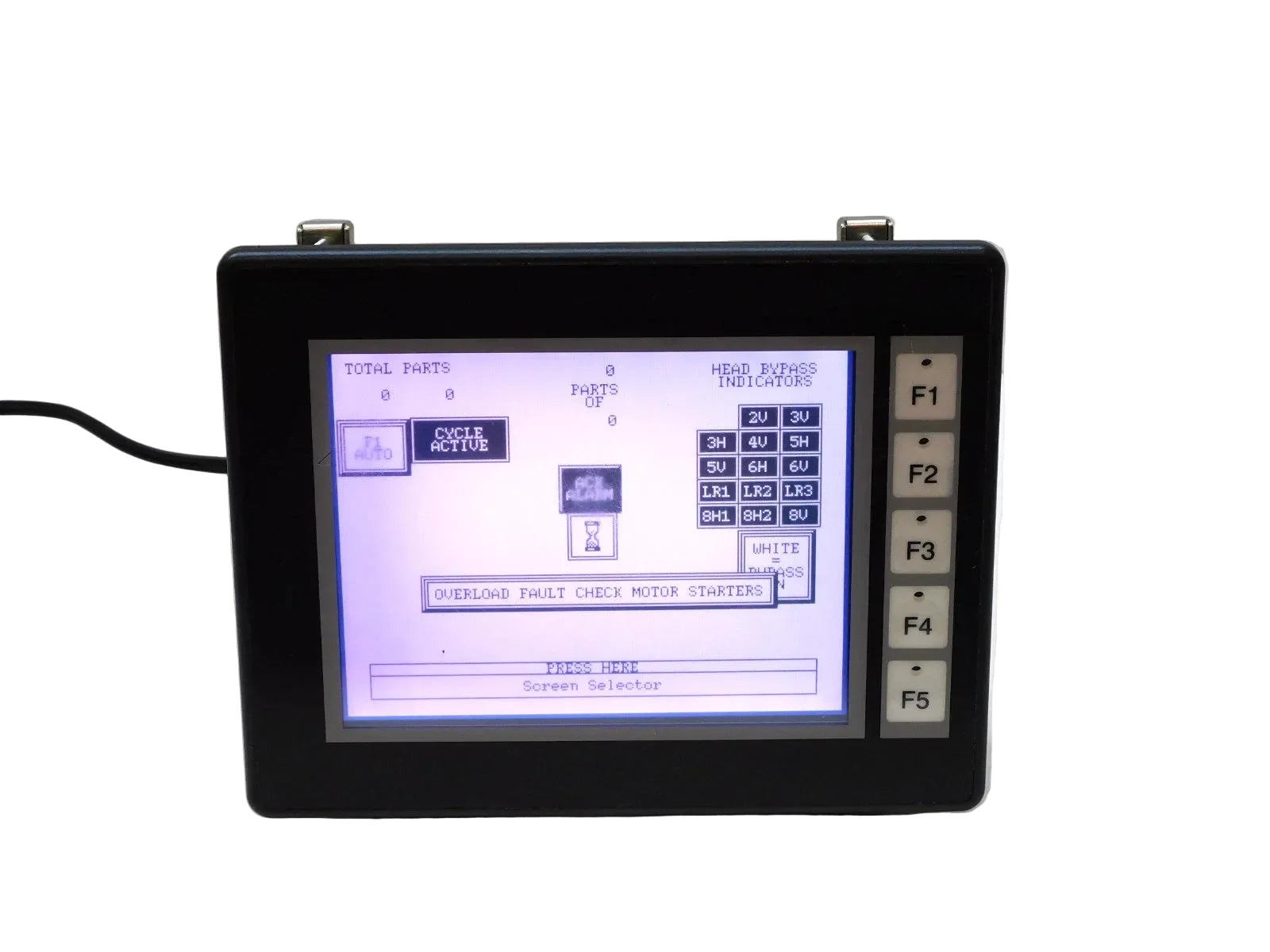

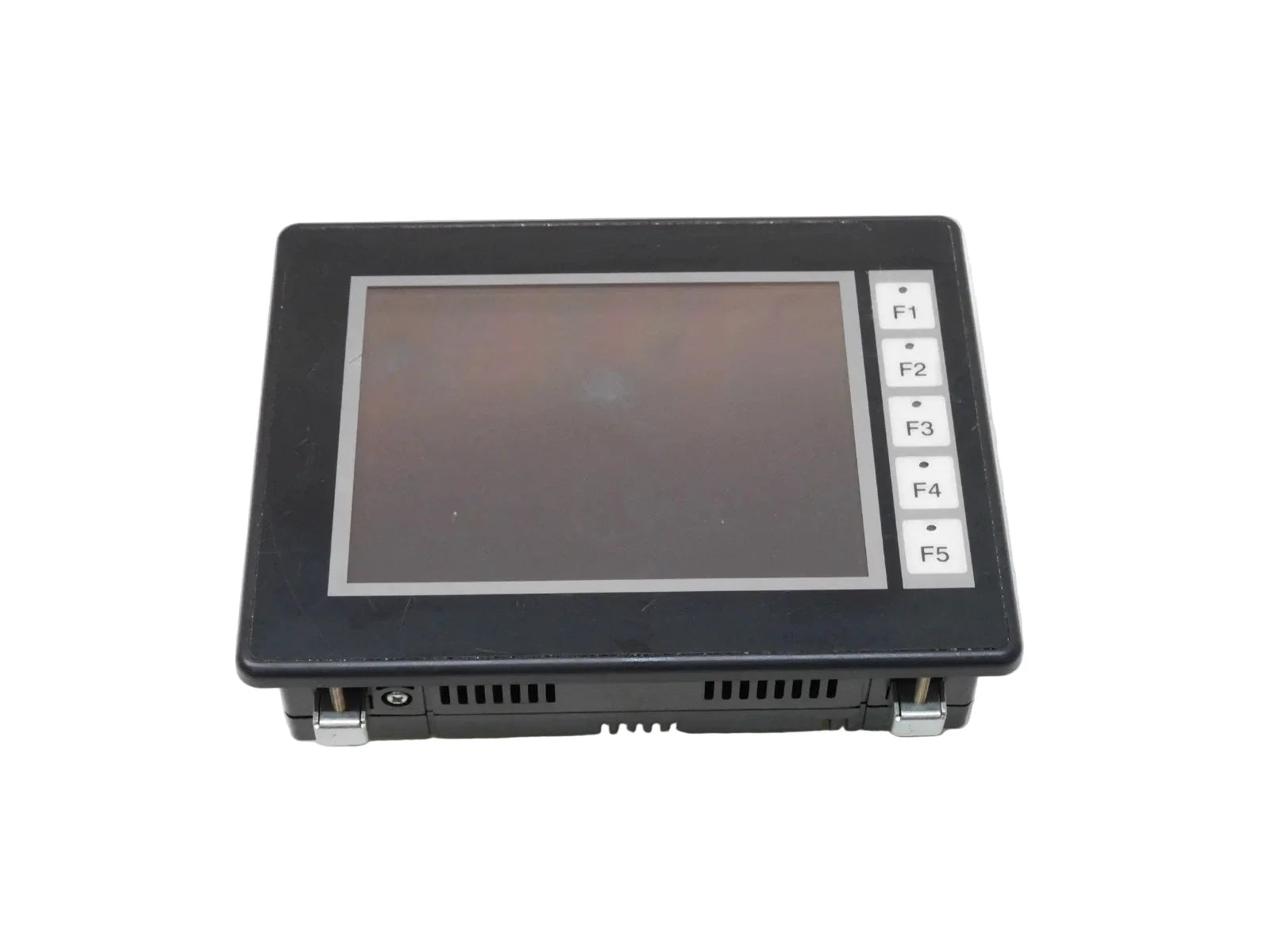

The Automation Direct EA1-S6MLW is a C-more Micro graphic operator interface designed for industrial machine control and monitoring. It features a 5.7-inch monochrome STN LCD display with a 320 × 240 resolution and selectable screen colors. The panel includes a touchscreen interface and programmable function keys for efficient operator interaction.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
HMI / MMI / OIT |
| Part Number |
EA1-S6MLW |
| Subcategory |
Operator Interface |
| Series |
C-more Micro |
| Display Type |
STN LCD |
| Screen Size |
5.7 Inch |
| Resolution |
320 × 240 |
| Display Color |
Monochrome (Selectable Colors) |
| Backlight Type |
LED |
| Interface Type |
Touch Screen |
| Function Keys |
5 User-Defined Keys with LED Indicators |
| Communication Port |
RS-232 (RJ12) |
| Operating Temperature |
0°C to 50°C |
| Humidity Range |
5% to 95% Non-Condensing |
| Protection Rating |
NEMA 4 / 4X, IP65 |
| Dimensions |
114 × 82 × 40.5 mm |
| Weight |
2.00 lbs |
Information About EA1-S6MLW
The EA1-S6MLW is part of the Automation Direct C-more Micro HMI series used in industrial automation systems. It incorporates an STN LCD display with a high-contrast LED backlight and selectable color schemes including white, pink variations, and red. The interface supports communication through an RS-232 port and allows operators to control machines through touchscreen inputs and programmable function keys with LED indicators. Programming and configuration are performed using EA-MG-PGMSW Micro-Graphic software, which provides simulation, object libraries, and graphical screen design tools.
Key Features:
-
5.7-Inch STN LCD Display: Provides clear monochrome visualization with 320 × 240 resolution.
-
Touchscreen Interface: Allows direct machine control through an interactive display.
-
Selectable Display Colors: Supports white, pink1, pink2, pink3, and red screen options.
-
LED Backlight System: High-contrast white LED illumination improves visibility.
-

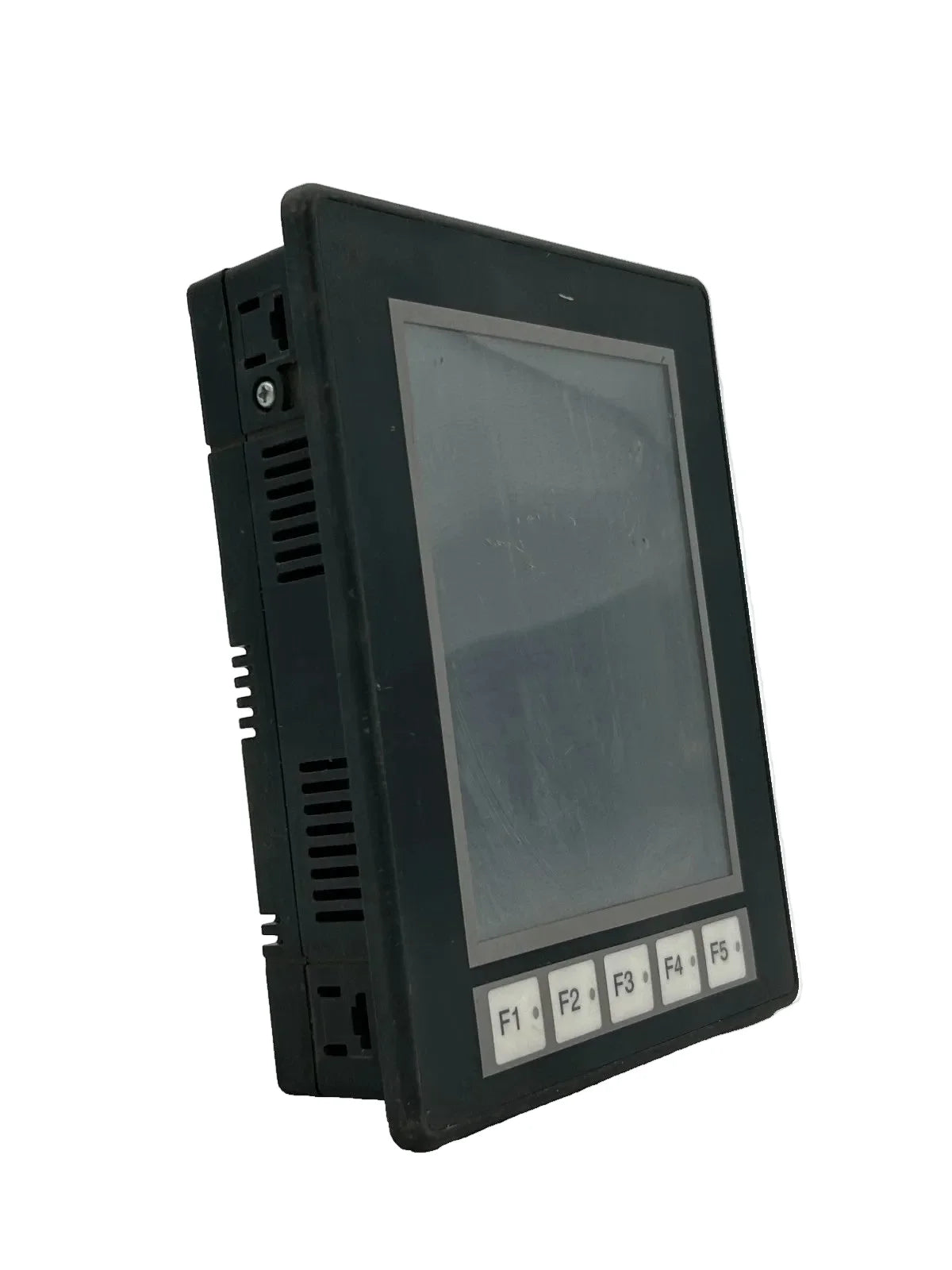

Five Programmable Function Keys: User-defined keys with LED indicators for quick commands.
-
RS-232 Communication Port: Enables connection to controllers and automation equipment.
-
NEMA 4/4X IP65 Rated Enclosure: Designed for industrial panel environments.
-
C-more Micro Programming Support: Compatible with EA-MG-PGMSW configuration software.
The EA1-S6MLW delivers the reliability and precision required for operator interface control in industrial automation systems.
